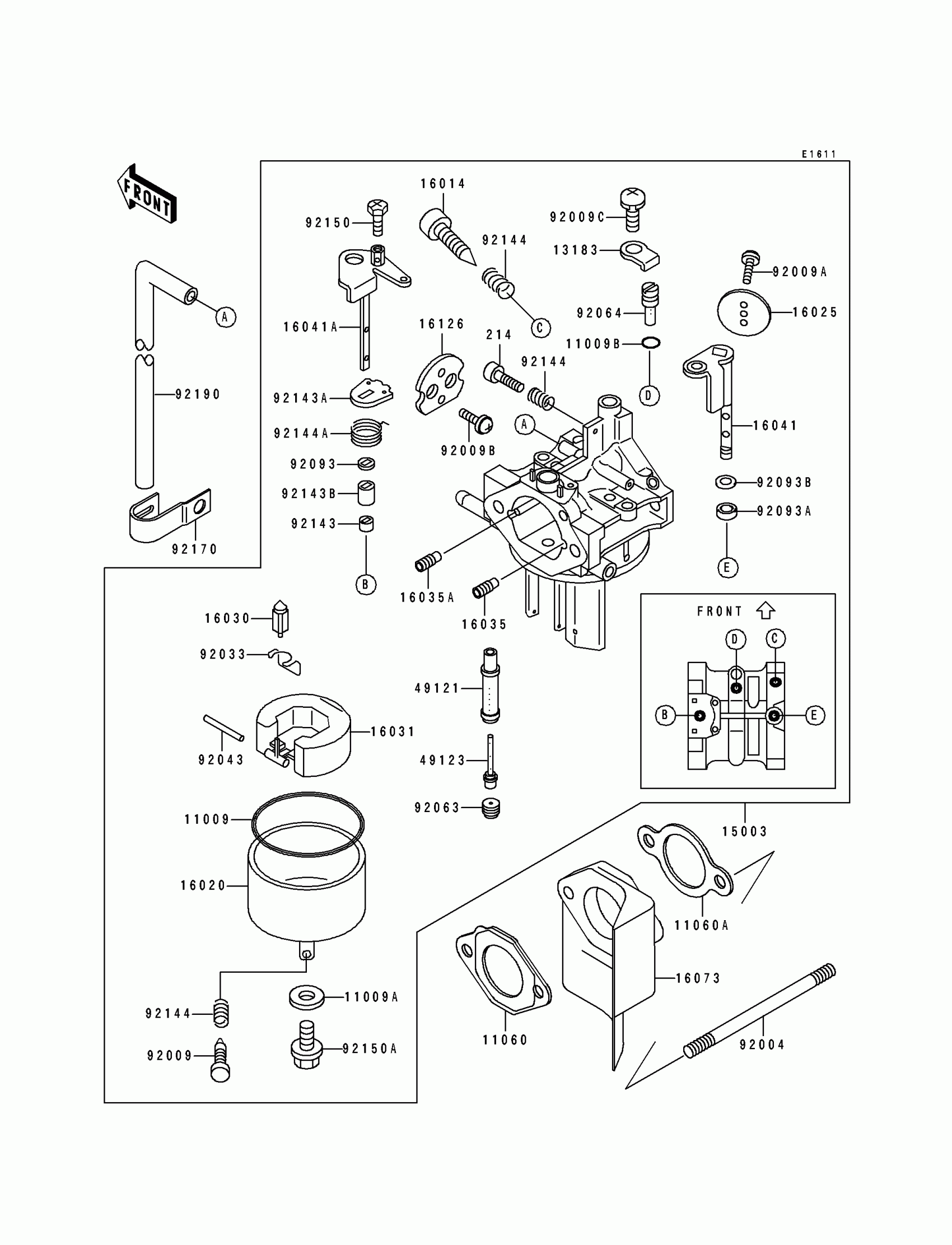

Kawasaki Mule 500 Carburetor Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-2024
$4.15
11009A
GASKET
11009-2025
$1.99
11009B
"O" RING
16038-024
$1.56
11060
GASKET,CARBURETOR
11009-2827
$3.58
11060A
GASKET,INSULATOR
11009-2939
$1.66
13183
PLATE
13183-2252
$3.50
15003
CARBURETOR-ASSY.
15003-2104
Unavailable
16014
SCREW-PILOT AIR
16014-2004
Unavailable
16020
CHAMBER-FLOAT
16020-2051
Unavailable
16025
VALVE-THROTTLE,#160
16025-2161
$7.51
16030
VALVE-FLOAT
16030-2073
$23.20
16031
FLOAT
16031-2066
$27.00
16035
JET-AIR,#1.8
16035-2056
$7.96
16035A
JET-AIR,#1.2
16035-2061
Unavailable
16041
SHAFT-CARBURETOR,THROTTLE
16041-2203
$25.96
16041A
SHAFT-CARBURETOR,CHOKE
16041-2209
$21.44
16073
INSULATOR
16073-2154
$5.07
16126
VALVE,CHOKE
16126-2181
Unavailable
49121
NOZZLE-MAIN,#32B
49121-2164
Unavailable
49123
HOLDER-MAIN JET
49123-2060
Unavailable
92004
STUD,6X80
92004-2125
$3.53
92009
SCREW,DRAIN
92009-2015
$4.94
92009A
SCREW,THROTTLE VALVE
92009-2080
$1.96
92009B
SCREW,CHOKE VALVE
92009-2081
$1.72
92009C
SCREW
92009-2244
$1.75
92033
RING-SNAP
92033-2067
$3.64
92043
PIN,FLOAT
92043-2006
$3.06
92063
JET-MAIN,#105
92063-2218
$11.49
92064
JET-PILOT,#45
92064-2063
$14.22
92093
SEAL
92093-2081
$2.33
92093A
SEAL
92093-2082
$1.90
92093B
SEAL
92093-2083
$1.72
92143
COLLAR
92143-2132
$3.47
92143A
COLLAR
92143-2133
$3.58
92143B
COLLAR
92143-2134
$5.03
92144
SPRING
92081-2009
$2.78
92144A
SPRING
92144-2269
$7.75
92150
BOLT
92002-2008
$1.72
92150A
BOLT
92150-2146
$4.11
92170
CLAMP
92037-2081
$2.44
92190
TUBE,6X10X175
92190-2051
$3.65
214
SCREW-PAN+-
214B0414
$0.70
