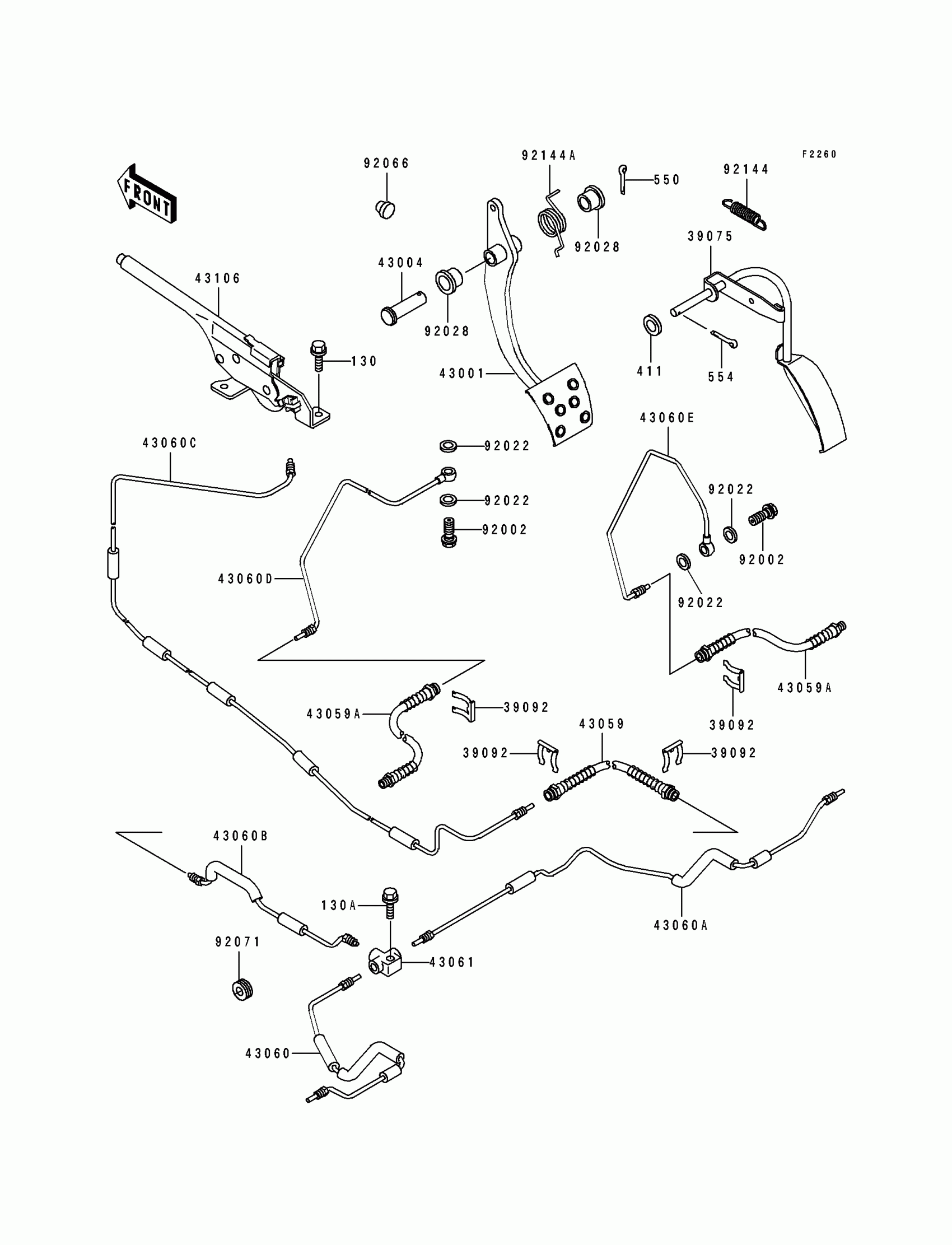

Kawasaki Mule 500 Brake Pedal Diagram

#

Description
Price

39075

LEVER-THROTTLE

39075-1058

Unavailable

39092

PIN-HAIR

39092-1052

$7.95

43001

LEVER-BRAKE,PEDAL

43001-1293

Unavailable

43004

SHAFT-BRAKE

43004-1128

$17.76

43059

HOSE-BRAKE,CNT

43059-1665

$34.21

43059A

HOSE-BRAKE,FR

43059-1666

$94.60

43060

PIPE-BRAKE,RR,LH

43060-1073

$37.00

43060A

PIPE-BRAKE,RR,RH

43060-1074

$55.83

43060B

PIPE-BRAKE,RR,CNT

43060-1075

$37.00

43060C

PIPE-BRAKE,FR,CNT

43060-1076

$60.79

43060D

PIPE-BRAKE,FR,LH

43060-1077

Unavailable

43060E

PIPE-BRAKE,FR,RH

43060-1078

Unavailable

43061

JOINT-BRAKE

43061-1063

$47.61

43106

LEVER-ASSY-PARKING BRAKE

43106-1001

Unavailable

92002

BOLT,OIL,L=23

92002-1888

$5.48

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92028

BUSHING

92028-1571

$10.67

92066

PLUG,7X2

92074-028

$4.26

92071

GROMMET

92071-1152

$4.26

92144

SPRING

92081-1980

Unavailable

92144A

SPRING

92144-1536

$8.30

130

BOLT-FLANGED

130D0816

Unavailable

130A

BOLT-FLANGED,8X30

130D0830

$0.74

411

WASHER-PLAIN,10MM

411E1000

$0.73

550

PIN-COTTER,2.5X25

550D2525

$1.26

554

PIN-SNAP,10MM

554A1000

$1.36
