Description

Price

11011

CASE-AIR FILTER

11011-1367

$88.64

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

$41.02

11060

GASKET

11009-2925

$1.79

14073

DUCT,AIR FILTER

14073-1453

$59.00

14073A

DUCT,AIR INTAKE

14073-1491

$53.66

14090

COVER,AIR FILTER

14090-1106

$29.89

16060

PIPE-INTAKE

16060-2151

$16.23

49006

BOOT

49006-1199

$8.64

92001

BOLT,6X25,W/WASHER

92001-1140

$5.01

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP

92037-3711

$6.72

92037B

CLAMP

92037-3738

$6.89

92037C

CLAMP

92037-506

$5.22

92093

SEAL,AIR FILTER

92093-1241

$12.96

92093A

SEAL,DUST

92093-1322

$9.82

92170

CLAMP

92037-2002

$0.84

92170A

CLAMP

92170-1036

$8.72

92170B

CLAMP,AIR FILTER

92170-1211

$7.33

92190

TUBE

92059-2280

$6.74

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

311

NUT 6MM

311B0600

$0.93

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

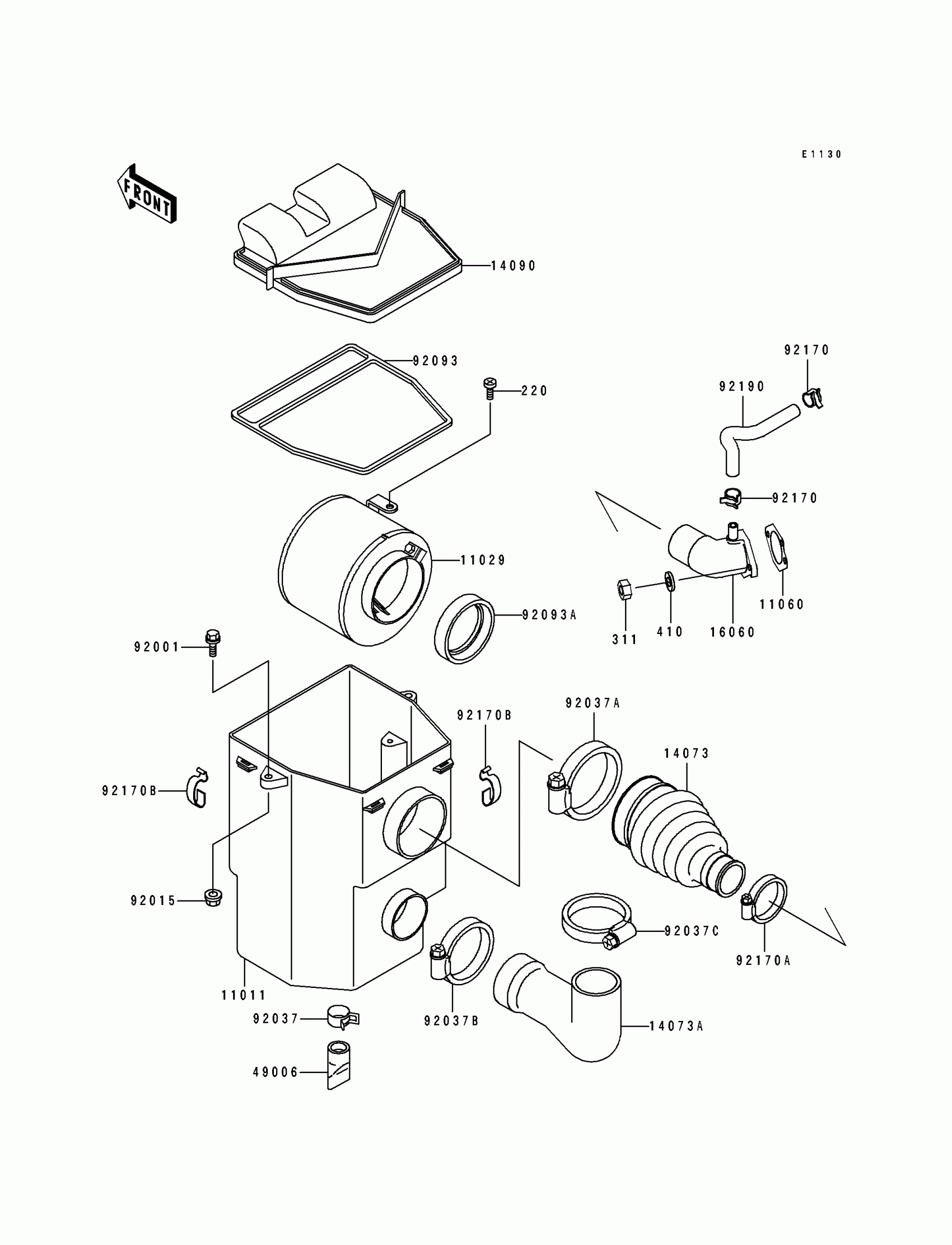

Kawasaki Mule 500 Air Filter Diagram

CASE-AIR FILTER

ELEMENT-ASSY-AIR FILTER

GASKET

DUCT,AIR FILTER

DUCT,AIR INTAKE

COVER,AIR FILTER

PIPE-INTAKE

BOOT

BOLT,6X25,W/WASHER

NUT,FLANGED,6MM

CLAMP,HOSE CLIP

CLAMP

CLAMP

CLAMP

SEAL,AIR FILTER

SEAL,DUST

CLAMP

CLAMP

CLAMP,AIR FILTER

TUBE

SCREW-PAN-CROS,6X14

NUT 6MM

WASHER-PLAIN-SMALL,6MM
