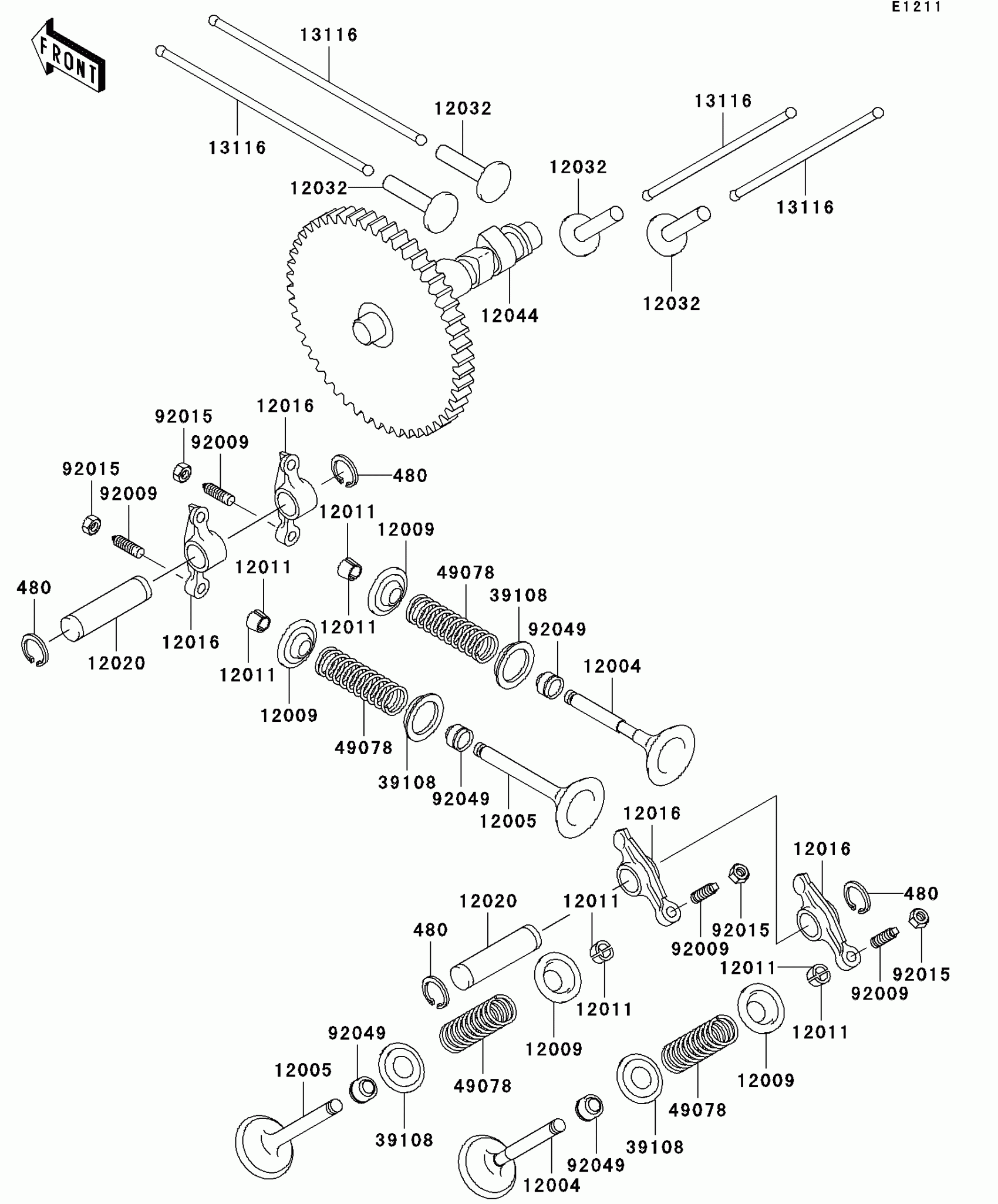

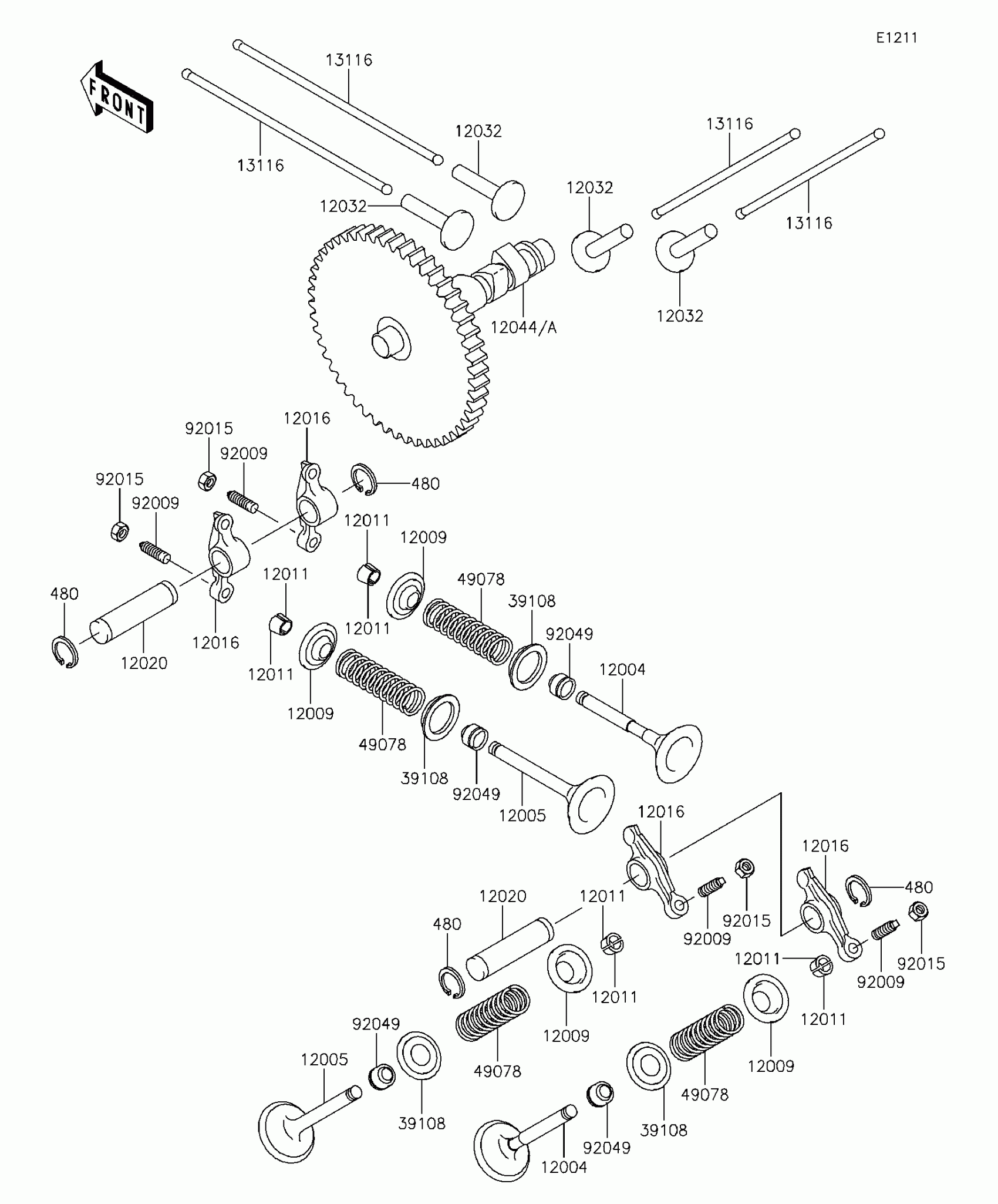

Kawasaki Mule 4010 Trans4x4 Valve(s)/Camshaft(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-2115

$17.76

12005

VALVE-EXHAUST

12005-2093

$23.70

12009

RETAINER-VALVE SPRING

12009-2067

$2.64

12011

COLLET

12011-2056

$1.97

12016

ARM-ROCKER

12016-2056

$16.58

12020

SHAFT-ROCKER

12020-2059

$4.15

12032

TAPPET

12032-2064

$10.05

12044

CAMSHAFT-VALVE

12044-2239

$145.60

13116

ROD-PUSH

13116-2057

$3.25

39108

RETAINER-SPRING

39108-2057

$0.64

49078

SPRING-ENGINE VALVE

49078-2082

$2.15

92009

SCREW,VALVE ADJUST

92009-1109

$1.43

92015

NUT,VALVE ADJUST LOCK

92015-1137

$0.93

92049

SEAL-OIL

92049-2109

$4.03

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.65
