Description

Price

13107

SHAFT,2WD/4WD

13107-0106

$203.60

13107A

SHAFT,INPUT OUTER

13107-1309

$200.13

13107B

SHAFT,INPUT

13107-1470

$358.87

13107C

SHAFT,OUTPUT,14T

13107-1517

$269.77

13139

SHIFTER,2WD/4WD

13139-0010

$102.63

13139A

SHIFTER,SPEED,HI/LOW

13139-1069

$136.50

13139B

SHIFTER,FR/RR

13139-1072

$94.90

13260

GEAR,OUTPUT REVERSE,51T

13260-1288

$166.77

13260A

GEAR,INPUT REDUCTION,20T

13260-1289

$137.41

13260B

GEAR,INPUT REDUCTION,28T

13260-1290

$137.41

13260C

GEAR,REDUCTION,17T&25T

13260-1291

$271.91

13260D

GEAR,INPUT 28T

13260-1462

$137.41

39134

SPROCKET-DRIVE,20T

39134-1055

$120.45

39135

SPROCKET-DRIVEN,41T

39135-1055

$142.88

41060

GEAR-METER SCREW

41060-1147

$37.81

92022

WASHER,25.3X33X1

92022-1109

$5.96

92022A

WASHER,17.3X28X1

92022-255

$8.58

92022B

WASHER,17.3X30X1.4

92022-270

$9.84

92026

SPACER,35.3X44X0.5

92026-1375

$7.33

92033

RING-SNAP

92033-032

$4.96

92033A

RING-SNAP

92033-1269

$7.98

92046

BEARING-NEEDLE

92046-1184

$21.25

92057

CHAIN,REVERSE,81RH2520,54L

92057-1364

$44.90

92143

COLLAR,8X14X10.5

92143-1497

$4.18

92143A

COLLAR,25X32X4.5

92143-1597

$13.44

92143B

COLLAR

92143-1599

$22.21

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

480A

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

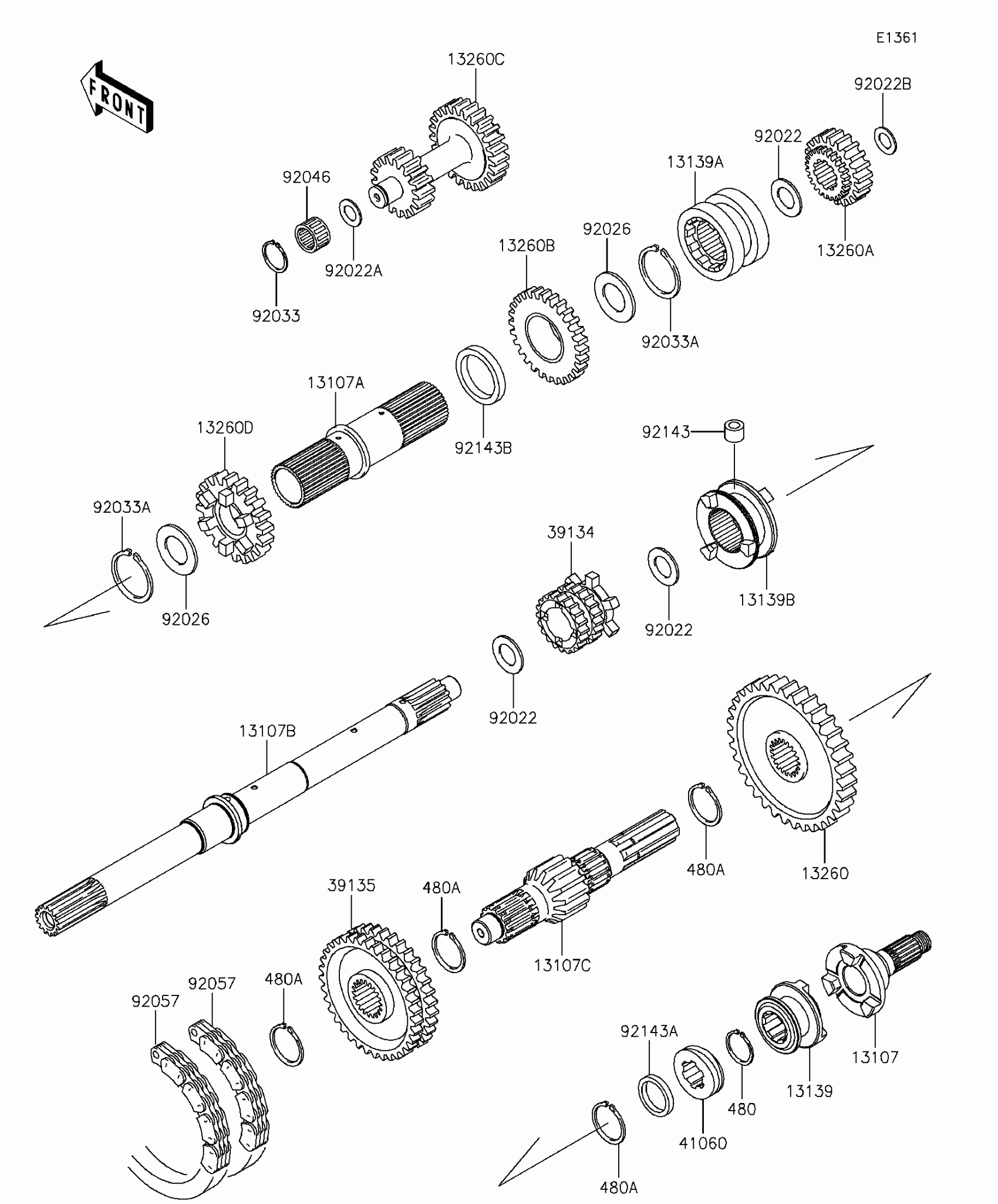

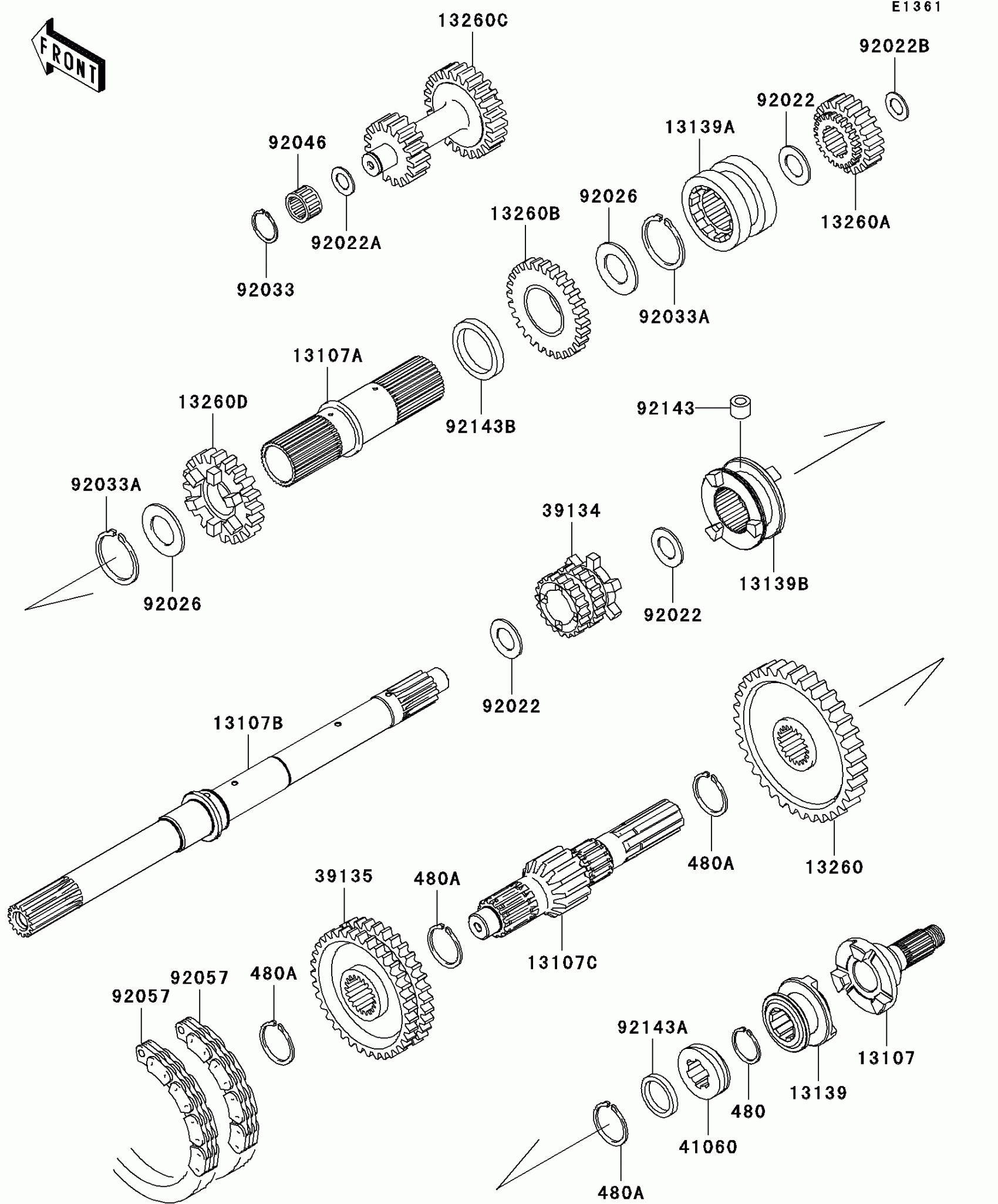

Kawasaki Mule 4010 Trans4x4 Transmission Diagram

SHAFT,2WD/4WD

SHAFT,INPUT OUTER

SHAFT,INPUT

SHAFT,OUTPUT,14T

SHIFTER,2WD/4WD

SHIFTER,SPEED,HI/LOW

SHIFTER,FR/RR

GEAR,OUTPUT REVERSE,51T

GEAR,INPUT REDUCTION,20T

GEAR,INPUT REDUCTION,28T

GEAR,REDUCTION,17T&25T

GEAR,INPUT 28T

SPROCKET-DRIVE,20T

SPROCKET-DRIVEN,41T

GEAR-METER SCREW

WASHER,25.3X33X1

WASHER,17.3X28X1

WASHER,17.3X30X1.4

SPACER,35.3X44X0.5

RING-SNAP

RING-SNAP

BEARING-NEEDLE

CHAIN,REVERSE,81RH2520,54L

COLLAR,8X14X10.5

COLLAR,25X32X4.5

COLLAR

CIRCLIP-TYPE-C,25MM

CIRCLIP-TYPE-C,30MM
