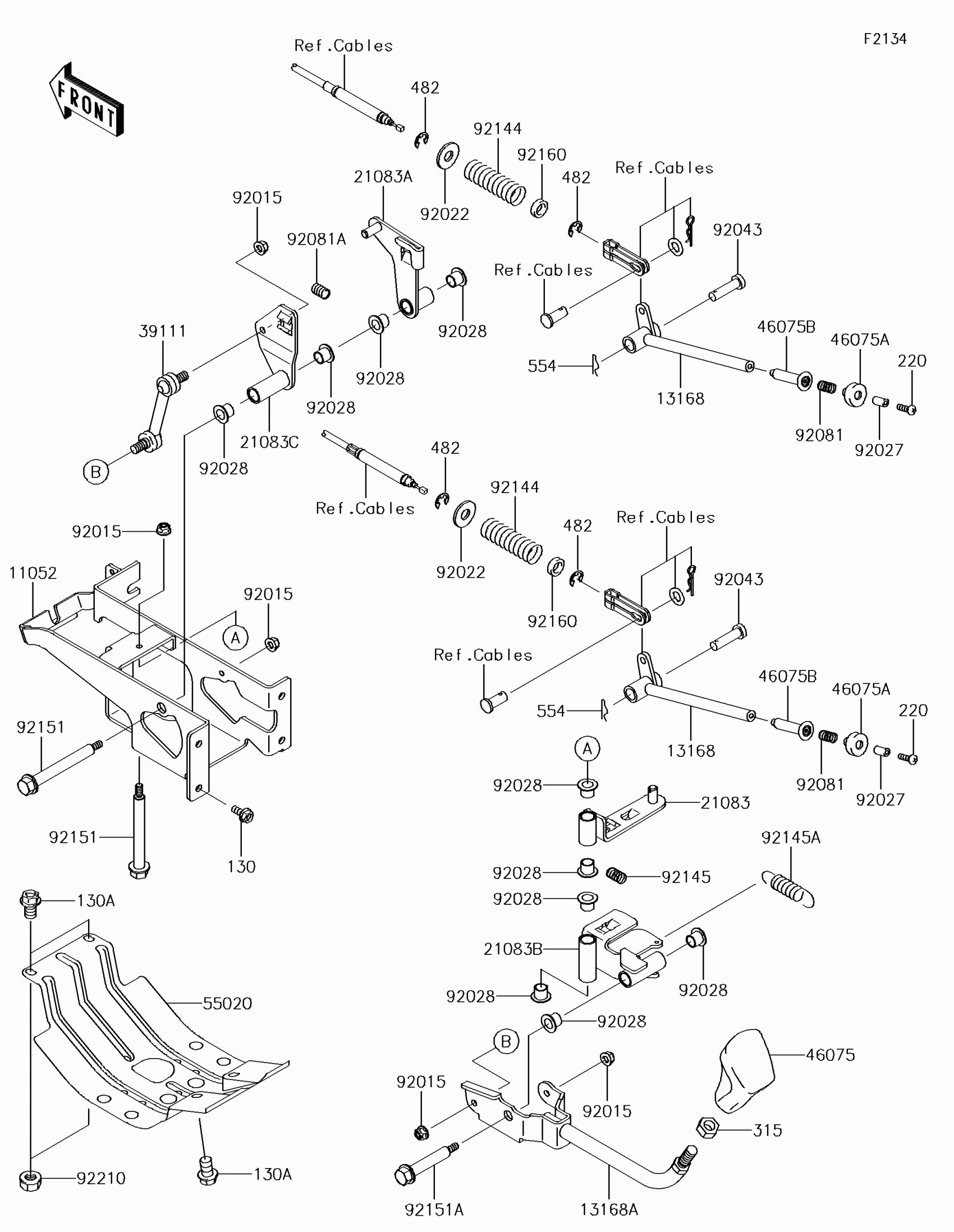

Kawasaki MULE™ 4010 TRANS4x4® SE Shift Lever(s) Diagram

Description

Price

11052

BRACKET,SHIFT CONTROL

11052-1263

$67.09

13168

LEVER,DIFF MODE CONTROL

13168-1428

$29.38

13168A

LEVER,SHIFT

13168-1719

$39.24

21083

ARM

21083-1151

$34.45

21083A

ARM

21083-1152

$33.44

21083B

ARM

21083-1155

$41.94

21083C

ARM

21083-1162

$18.93

39111

ROD-TIE

39111-1169

$48.25

46075

GRIP,SHIFT LEVER

46075-0054

$28.54

46075A

GRIP,UPP

46075-1085

$7.13

46075B

GRIP,LWR

46075-1086

$9.84

55020

GUARD,FRONT DIFF CASE

55020-0171

$38.66

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92027

COLLAR

92027-1987

$1.76

92028

BUSHING

92028-1507

$3.99

92043

PIN,FOOTRST STEP FIT

92043-1069

$5.42

92081

SPRING

92081-1714

$3.25

92081A

SPRING

92081-1847

$1.61

92144

SPRING

92144-1510

$4.81

92145

SPRING

92145-0073

$1.96

92145A

SPRING

92145-1326

$4.27

92151

BOLT,6MM

92151-1746

$7.84

92151A

BOLT,6MM

92151-1747

$7.13

92160

DAMPER

92160-3754

$2.49

92210

NUT,LOCK,10MM

92210-1204

$3.29

130

BOLT-FLANGED,6X14

130AB0614

$1.68

130A

BOLT-FLANGED,10X16

130BA1016

$3.63

220

SCREW-PAN-CROS,5X14

220AB0514

$1.33

315

NUT-HEX-FINE

315BB1000

$4.17

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63

554

PIN-SNAP,10MM

554DA1000

$0.73
