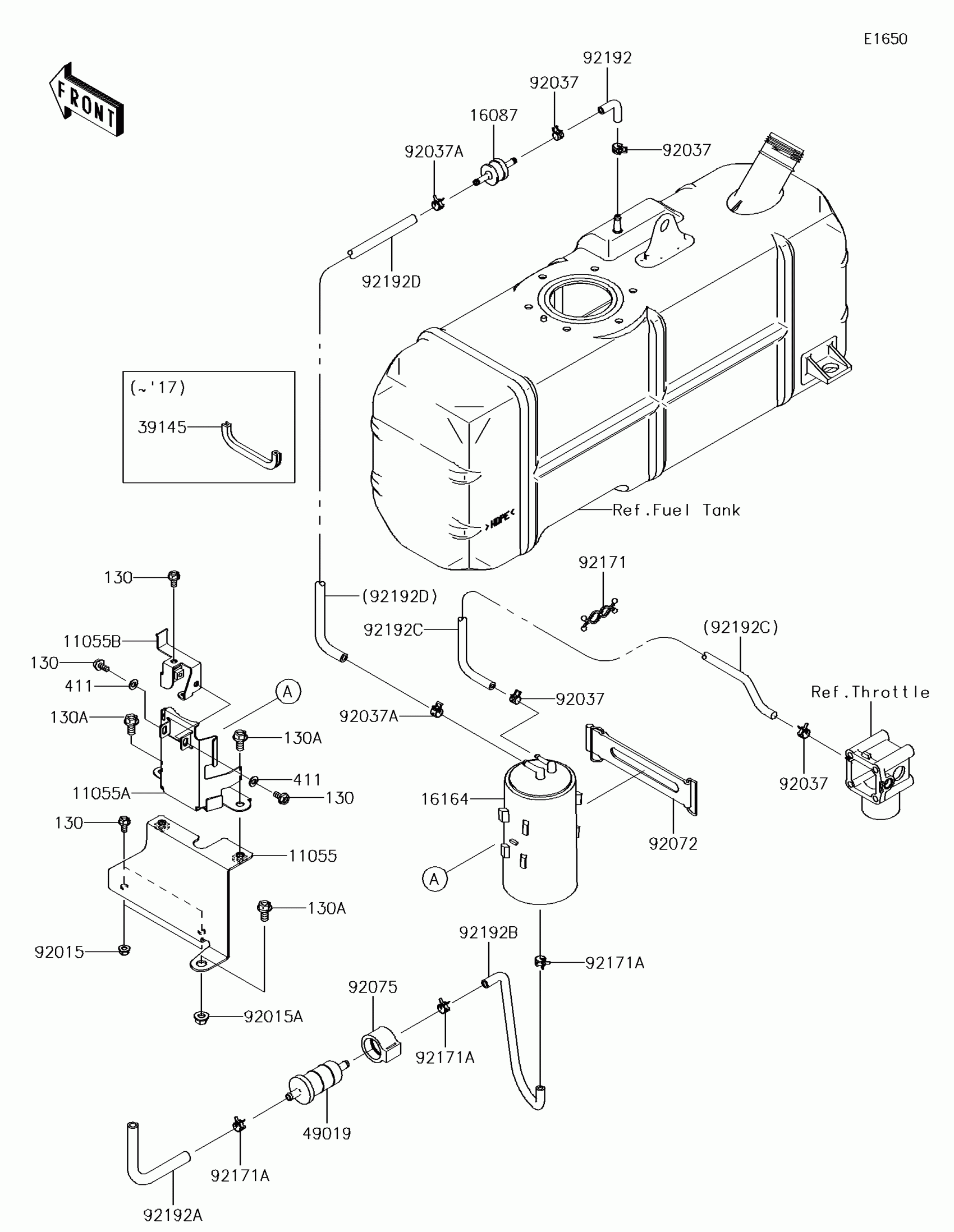

Kawasaki MULE™ 4010 TRANS4x4® SE Fuel Evaporative System Diagram

Description

Price

11055

BRACKET,LWR

11055-0262

$26.80

11055A

BRACKET,UPP

11055-0263

$24.77

11055B

BRACKET,UPP

11055-1126

$13.51

16087

VALVE-CHECK

16087-0703

$37.65

16164

CANISTER

16164-0013

$207.32

39145

TRIM-SEAL,L=110

39145-0034

$7.68

49019

FILTER-FUEL

49019-1055

$22.97

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015A

NUT,8MM

92015-1432

$6.57

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP,TUBE

92037-1505

$4.76

92072

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92171

CLAMP

92171-0476

$3.90

92171A

CLAMP

92171-0515

$6.38

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.87

92192A

TUBE,FILTER-AIR

92192-0609

$6.10

92192B

TUBE,CANISTER-FUEL FILTER

92192-0620

$8.62

92192C

TUBE,4.5X9.5X2000

92192-0908

$29.73

92192D

TUBE

92192-1160

$6.83

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

411

WASHER-PLAIN,6MM

411AA0600

$2.92
