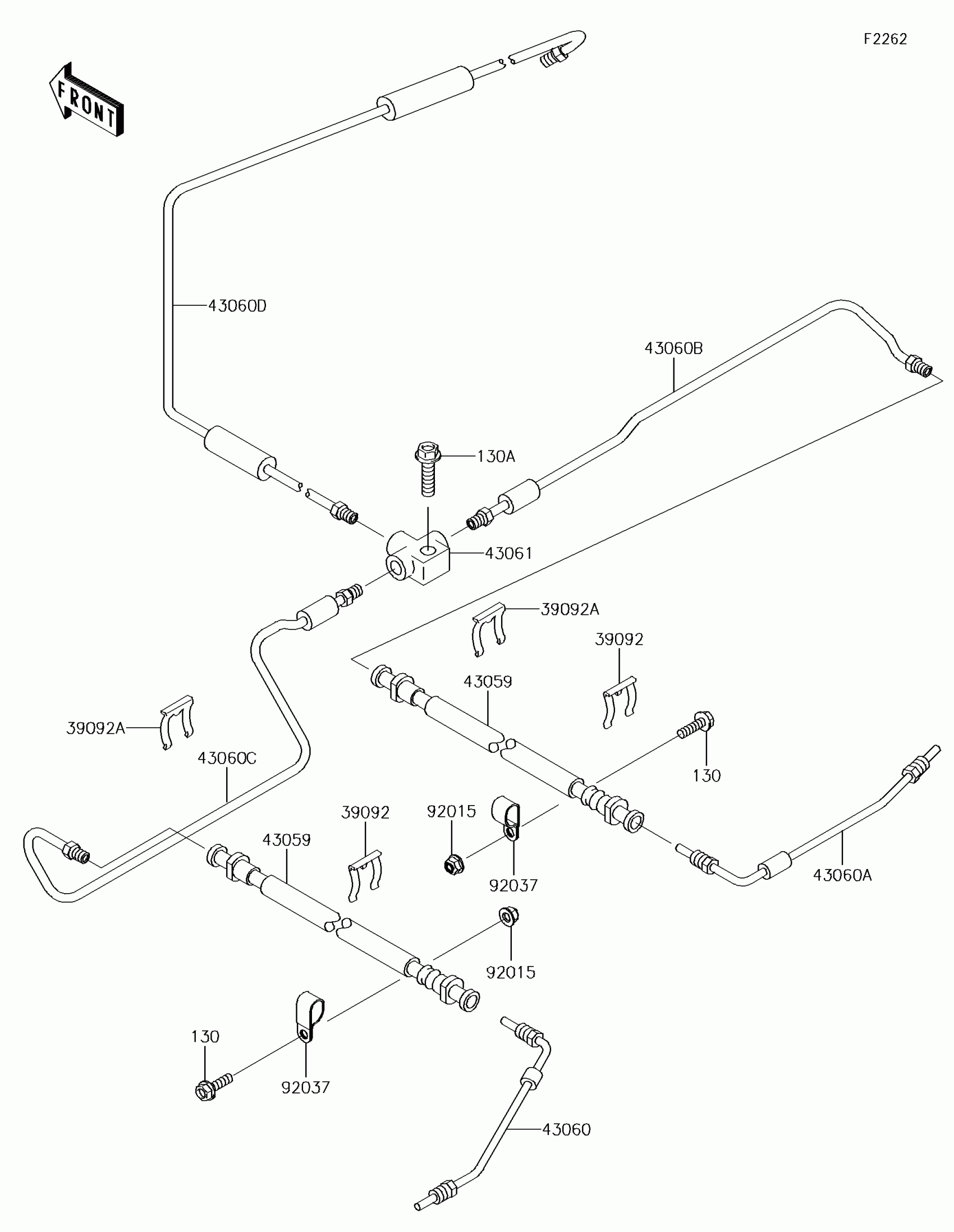

Kawasaki MULE™ 4010 TRANS4x4® SE Brake Piping Diagram

Description

Price

39092

PIN-HAIR

39092-1052

$7.95

39092A

PIN-HAIR

39092-1059

$3.76

43059

HOSE-BRAKE,RR

43059-1490

$14.79

43060

PIPE-BRAKE,RR,LH

43060-1083

$20.64

43060A

PIPE-BRAKE,RR,RH

43060-1084

$27.22

43060B

PIPE-BRAKE,MIDDLE,RH

43060-7503

$28.84

43060C

PIPE-BRAKE,MIDDLE,LH

43060-7504

$30.81

43060D

PIPE-BRAKE,FR

43060-7505

$49.58

43061

JOINT-BRAKE

43061-1063

$47.61

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92037

CLAMP

92037-1608

$8.10

130

BOLT-FLANGED,6X20

130AA0620

$1.74

130A

BOLT-FLANGED,8X30

130AA0830

$0.75
