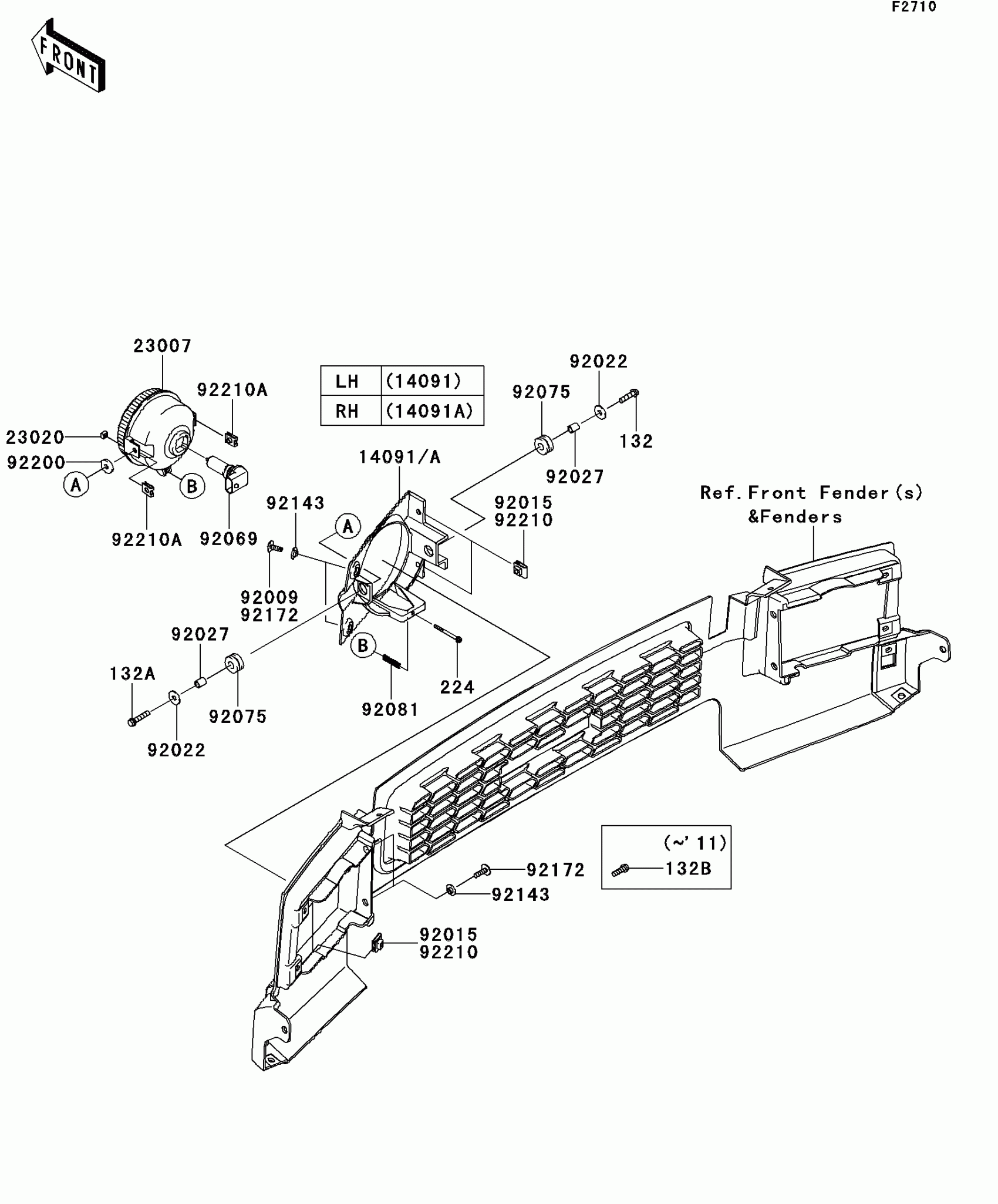

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Headlight(s) Diagram

Description

Price

14091

COVER,HEAD LAMP,LH

14091-0827

$14.97

14091A

COVER,HEAD LAMP,RH

14091-0828

$14.97

23007

LENS-COMP,HEAD LAMP

23007-0096

$50.83

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 35/35W

92069-0019

$15.75

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92143

COLLAR

92143-1087

$4.31

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92200

WASHER,6.5X20X3.2

92200-0359

$2.15

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32

92210A

NUT

92210-1125

$4.76

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

132B

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.99

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.81
