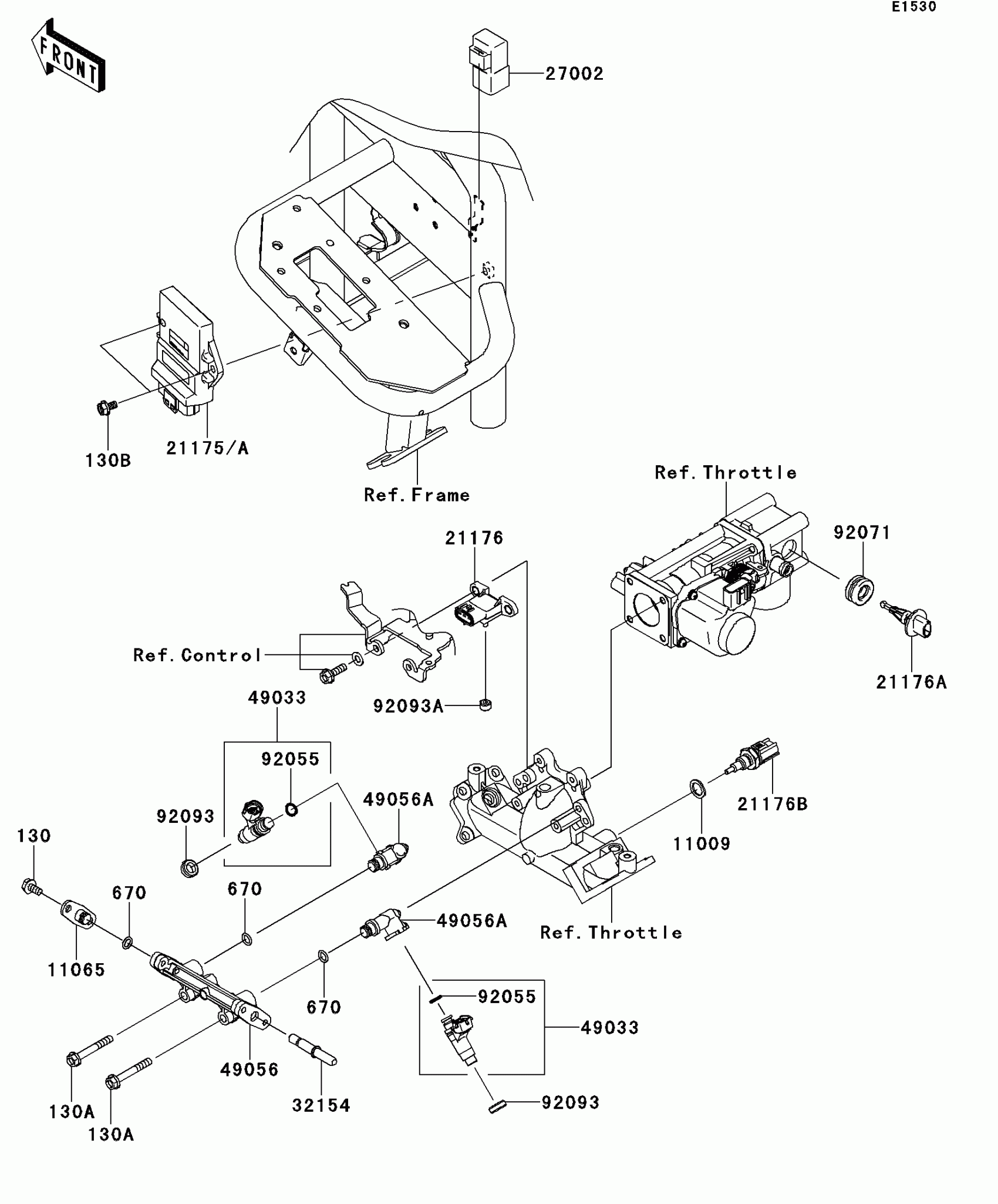

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Fuel Injection Diagram

Description

Price

11009

GASKET,12.5X18X1.5

11009-1376

$1.85

11065

CAP

11065-2129

$16.54

21175A

CONTROL UNIT-ELECTRONIC,F.I.

21175-0332

$861.42

21176

SENSOR,PRESSURE

21176-1095

$149.36

21176A

SENSOR,AIR TEMP

21176-2106

$25.15

21176B

SENSOR

21176-2111

$41.00

27002

RELAY-ASSY

27002-1088

$42.06

32154

PIPE

32154-2084

Unavailable

49033

NOZZLE-INJECTION

49033-2060

$151.37

49056

PIPE-INJECTION

49056-2061

$59.14

49056A

PIPE-INJECTION

49056-2062

$25.22

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92071

GROMMET

92071-2140

$4.45

92093

SEAL

92093-2119

$2.53

92093A

SEAL

92093-2127

$1.63

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X45

130BA0645

$0.95

130B

BOLT-FLANGED,6X16

130BB0616

$2.06

670

O RING,8MM

670E1508

$1.82
