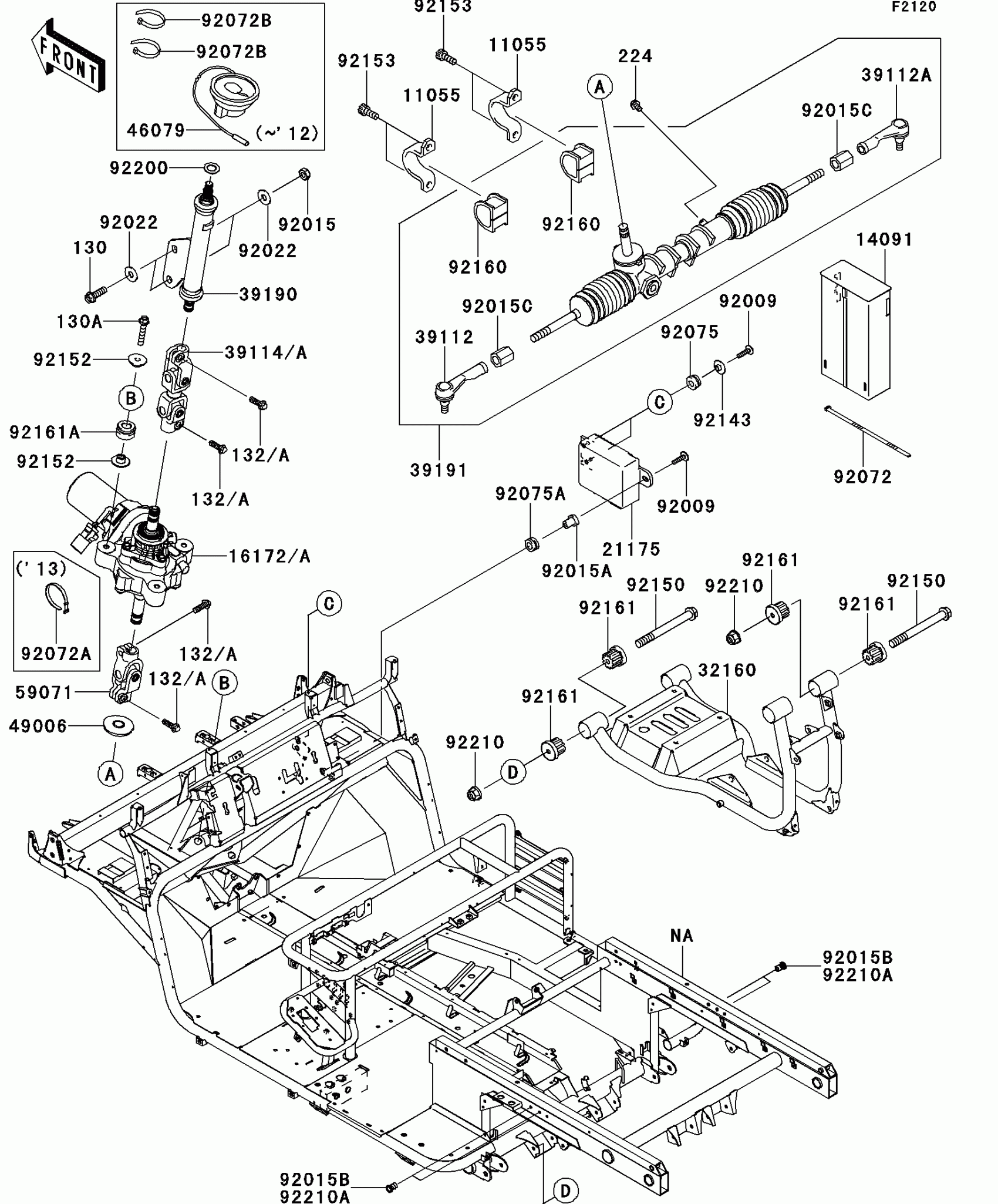

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Frame Diagram

#

Description
Price

11055

BRACKET,STEERING GEAR

11055-1240

$8.07

14091

COVER,ECU

14091-7560

$47.25

16172

ACTUATOR

16172-0028

$1,766.77

16172A

ACTUATOR

16172-7501

$2,045.22

21175

CONTROL UNIT-ELECTRONIC,E.P.S

21175-7501

$832.46

32160

FRAME-COMP,RR

32160-0004

$251.26

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$85.03

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$85.03

39114

SHAFT-COMP-STRG

39114-0308

Unavailable

39114A

SHAFT-COMP-STRG

39114-7504

$234.69

39190

SHAFT-ASSY-STEERING

39190-7501

$236.68

39191

GEAR-ASSY-STEERING

39191-0016

Unavailable

46079

CONTACT,HORN SWITCH

46079-1063

Unavailable

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$35.56

59071

JOINT

59071-7501

$123.10

92009

SCREW,6X25

92009-1465

$2.99

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT,RUBBER,6MM

92015-1692

$5.61

92015B

NUT,POP,6MM,L=15

92015-1791

$3.57

92015C

NUT

92015-1864

$13.66

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=186

92072-056

$3.81

92072B

BAND,L=188

92072-1239

$1.30

92075

DAMPER,RUBBER

92075-1123

$3.81

92075A

DAMPER

92075-294

$3.68

92143

COLLAR,L=6.5

92143-1025

$4.67

92150

BOLT,FLANGED,10X100

92150-1731

$16.98

92152

COLLAR

92152-7513

$4.44

92153

BOLT,SOCKET,10X23

92153-1269

$1.98

92160

DAMPER,STEERING GEAR

92160-1084

$28.70

92161

DAMPER

92161-0800

$9.29

92161A

DAMPER,ACTUATOR

92161-7517

$2.66

92200

WASHER,15X25X1.6

92200-0460

$3.27

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

92210A

NUT,POP,6MM,L=15

92210-1397

$4.81

130

BOLT-FLANGED,10X30

130BB1030

$4.93

130A

BOLT-FLANGED,8X45

130CD0845

$3.04

132

BOLT-FLANGED-SMALL,8X25

132BA0825

$3.69

132A

BOLT-FLANGED-SMALL,8X25

132BB0825

$3.14

224

SCREW-PAN-WP-CROS,5X8

224AA0508

$0.63
