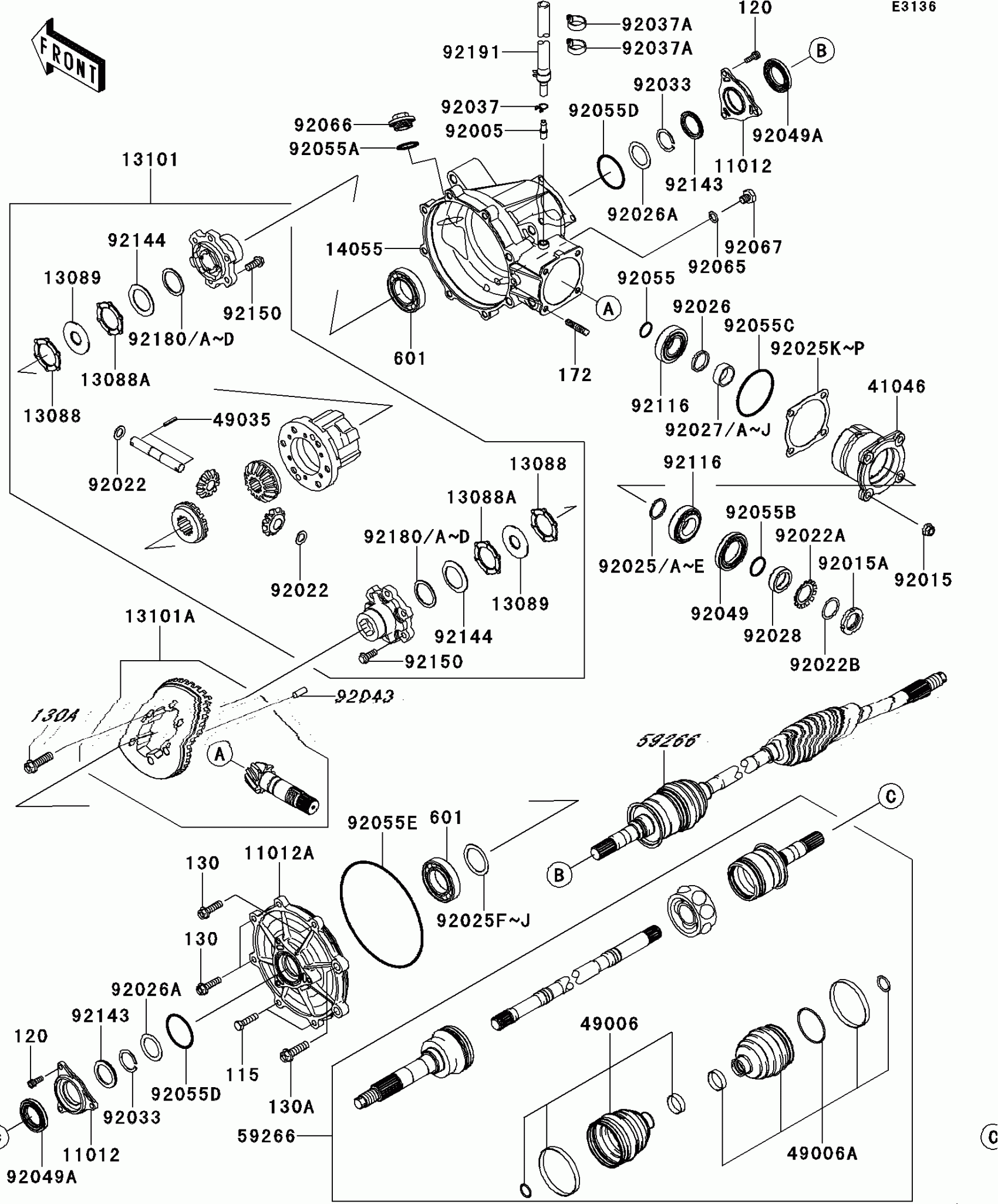

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Drive Shaft-Front Diagram

#

Description
Price

11012

CAP

11012-1648

$29.82

11012A

CAP,GEAR CASE

11012-1649

$112.28

13088

PLATE-FRICTION,T=2.8

13088-1075

$10.02

13088A

PLATE-FRICTION,T=2.4

13088-1078

$10.02

13089

PLATE-CLUTCH

13089-1083

$12.80

13101

GEAR-ASSY

13101-1190

$776.84

13101A

GEAR-ASSY,BEVEL

13101-5096

$796.04

14055

CASE-GEAR,FR

14055-1114

$203.24

41046

HOUSING-BEARING

41046-1089

$156.95

49006

BOOT,UJ INNER

49006-0086

$66.22

49006A

BOOT,DOJ OUTER

49006-0087

$52.52

49035

PIN-SPRING

49035-1056

$3.92

59266

JOINT-BALL

59266-0034

$916.85

92005

FITTING,BREATHER

92005-1127

$17.17

92015

NUT,8MM

92015-1402

$4.69

92015A

NUT,25MM

92015-1768

$25.27

92022

WASHER

92022-1941

$4.69

92022A

WASHER,TOOTHED

92022-1990

$6.22

92022B

WASHER,25.3X32X0.5

92022-225

$5.52

92025

SHIM,25.2X29.8X1.70

92025-1072

Unavailable

92025A

SHIM,25.2X29.8X1.72

92025-1073

Unavailable

92025B

SHIM,25.2X29.8X1.74

92025-1074

Unavailable

92025C

SHIM,25.2X29.8X1.76

92025-1075

Unavailable

92025D

SHIM,25.2X29.8X1.78

92025-1076

Unavailable

92025E

SHIM,25.2X29.8X1.80

92025-1077

Unavailable

92025F

SHIM,35.3X46X1.00

92025-1849

Unavailable

92025G

SHIM,35.3X46X0.10

92025-1850

Unavailable

92025H

SHIM,35.3X46X0.15

92025-1851

Unavailable

92025I

SHIM,35.3X46X0.50

92025-1856

Unavailable

92025J

SHIM,35.3X46X0.80

92025-1857

Unavailable

92025K

SHIM,T=0.10

92025-1919

Unavailable

92025L

SHIM,T=0.15

92025-1920

Unavailable

92025M

SHIM,T=0.50

92025-1921

Unavailable

92025N

SHIM,T=0.80

92025-1922

Unavailable

92025O

SHIM,T=1.00

92025-1923

Unavailable

92025P

SHIM,T=1.20

92025-1924

Unavailable

92026

SPACER

92026-1337

$10.28

92026A

SPACER,29X40X1.0

92026-1338

$6.22

92027

COLLAR,25.2X29.8X10.2

92027-1401

Unavailable

92027A

COLLAR,25.2X29.8X10.3

92027-1402

Unavailable

92027B

COLLAR,25.2X29.8X10.4

92027-1403

Unavailable

92027C

COLLAR,25.2X29.8X10.5

92027-1404

Unavailable

92027D

COLLAR,25.2X29.8X10.6

92027-1405

Unavailable

92027E

COLLAR,25.2X29.8X10.7

92027-1406

Unavailable

92027F

COLLAR,25.2X29.8X10.8

92027-1407

Unavailable

92027G

COLLAR,25.2X29.8X10.9

92027-1408

Unavailable

92027H

COLLAR,25.2X29.8X11.0

92027-1409

Unavailable

92027I

COLLAR,25.2X29.8X11.1

92027-1410

Unavailable

92027J

COLLAR,25.2X29.8X11.2

92027-1411

Unavailable

92028

BUSHING

92028-1699

$18.72

92033

RING-SNAP,T=1.5

92033-1249

$4.96

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,HOSE

92037-1827

$7.45

92043

PIN,8X18

92043-1400

$5.52

92049

SEAL-OIL,TC35X55X8

92049-1298

$8.98

92049A

SEAL-OIL,TC30487

92049-1309

$8.98

92055

RING-O,19.5X1.5

92055-055

$4.31

92055A

RING-O,25.7X2.4

92055-1136

$5.00

92055B

RING-O,24.7MM

92055-1160

$4.69

92055C

RING-O,65.2X2.4

92055-1408

$6.57

92055D

RING-O,46X2.5

92055-1409

$4.69

92055E

RING-O,154.1X2.5

92055-1410

$8.86

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG

92066-1303

$12.96

92067

PLUG,DRAIN,10X12

92067-001

$4.41

92116

BEARING-ROLLER,4T30205

92116-1003

$36.32

92143

COLLAR

92143-1703

$14.43

92144

SPRING

92144-1671

$10.19

92150

BOLT,8X20

92150-1109

$4.31

92180

SHIM,32X48X0.8

92180-1121

Unavailable

92180A

SHIM,32X48X1.0

92180-1122

Unavailable

92180B

SHIM,32X48X1.2

92180-1123

Unavailable

92180C

SHIM,32X48X1.4

92180-1124

Unavailable

92180D

SHIM,32X48X1.6

92180-1125

Unavailable

92191

TUBE

92191-1628

$37.56

115

BOLT-SMALL-UPSET,8X30

115CA0830

$4.31

120

BOLT-SOCKET,6X16

120CA0616

$2.49

130

BOLT-FLANGED,8X30

130CA0830

$1.08

130A

BOLT-FLANGED,10X35

130CA1035

$6.75

172

BOLT-STUD,8X22

172BA0822

$2.18

601

BEARING-BALL,#6007C3

601B6007

$27.06
