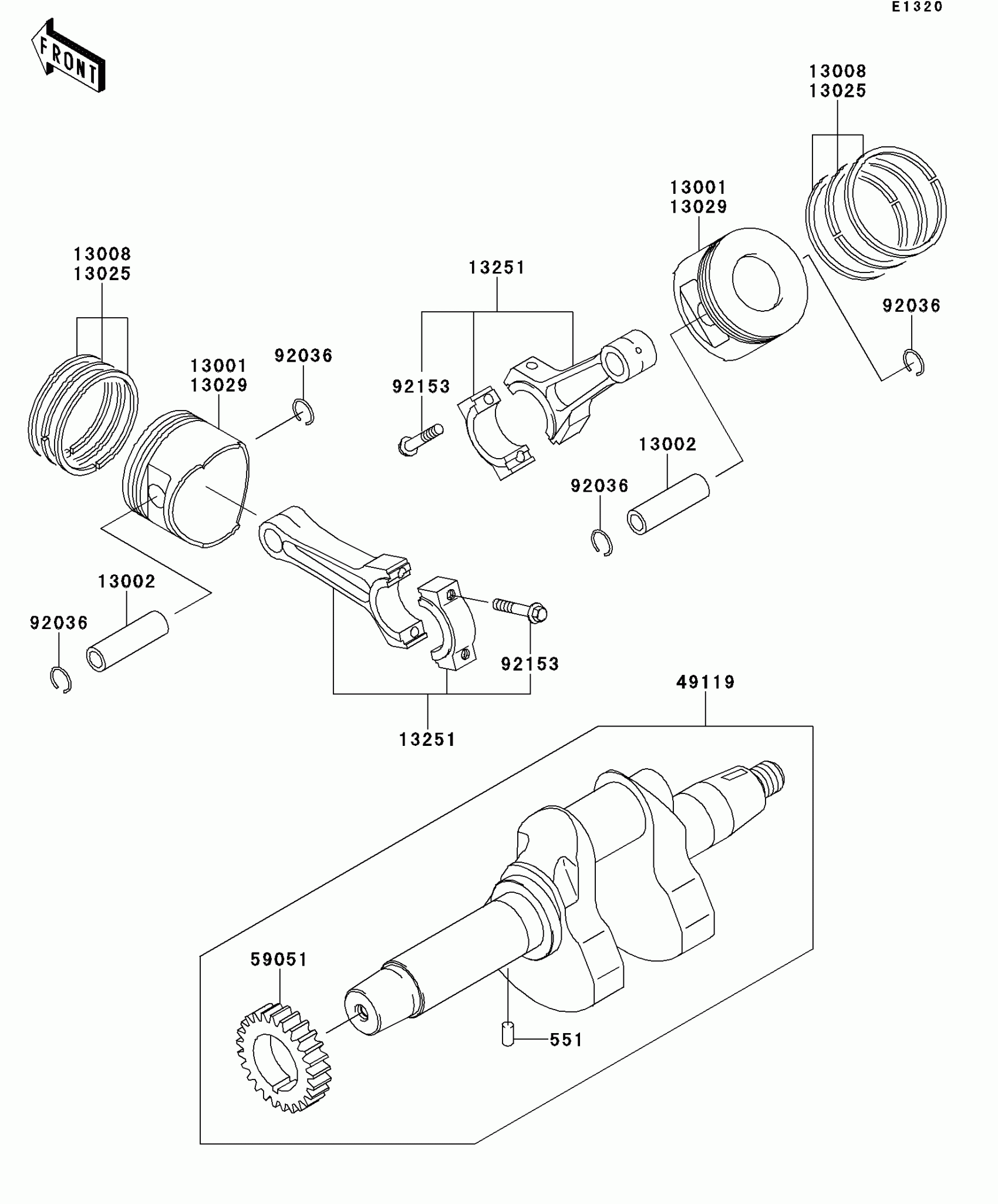

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Crankshaft/Piston(s) Diagram

#

Description
Price

13001

PISTON-ENGINE,STD

13001-2196

$39.71

13002

PIN-PISTON

13002-1013

$5.04

13008

RING-SET-PISTON,STD

13008-6025

$31.54

13025

RING-SET-PISTON L,0.50

13025-6008

Unavailable

13029

PISTON-ENGINE L,0.50

13029-2141

Unavailable

13251

ROD-ASSY-CONNECTING

13251-2086

Unavailable

49119

CRANKSHAFT-ASSY

49119-2200

$606.43

59051

GEAR-SPUR

59051-2112

$30.56

92036

CIRCLIP,PISTON PIN

92036-021

$0.48

92153

BOLT,7X35.2

92153-2054

$1.42

551

PIN-DOWEL,4X8

551A0408

$0.68
