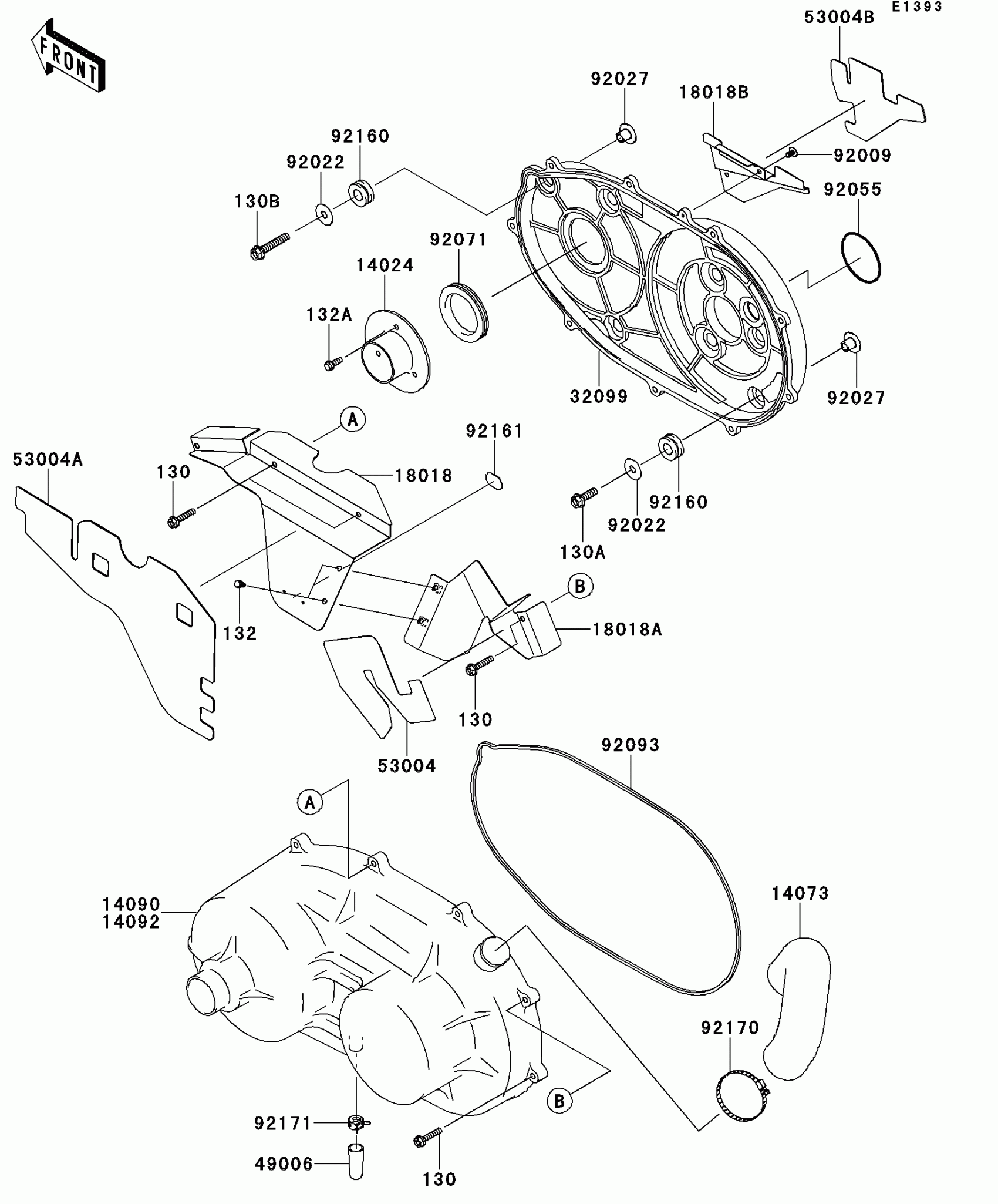

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Converter Cover Diagram

Description

Price

14024

COVER,FAN

14024-1554

$41.67

14073

DUCT,EXHAUST

14073-0234

$13.34

14090

COVER,BELT CONVERTER

14090-1239

$165.19

14092

COVER,BELT CONVERTER

14092-1035

$165.91

18018

PLATE-HEAT GUARD

18018-0019

$54.18

18018A

PLATE-HEAT GUARD

18018-0020

$45.48

18018B

PLATE-HEAT GUARD

18018-0021

$16.39

32099

CASE,BELT CONVERTER

32099-1140

Unavailable

49006

BOOT

49006-1351

$7.51

53004

MAT

53004-0043

Unavailable

53004A

MAT

53004-0044

Unavailable

53004B

MAT

53004-0045

Unavailable

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92022

WASHER SEAL PLATE

92022-101

$4.31

92027

COLLAR

92027-4015

$10.65

92055

RING-O,CRANKCASE SIDE

92055-1395

$4.87

92071

GROMMET,CONVERTER CASE

92071-1212

$10.00

92093

SEAL,BELT CONVERTER COVER

92093-0582

$16.48

92160

DAMPER

92160-1012

$5.52

92161

DAMPER

92161-0406

$2.97

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-1277

$2.75

130

BOLT-FLANGED,6X30

130BB0630

$4.43

130A

BOLT-FLANGED,8X25

130BB0825

$4.45

130B

BOLT-FLANGED,8X45

130BB0845

$3.26

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
