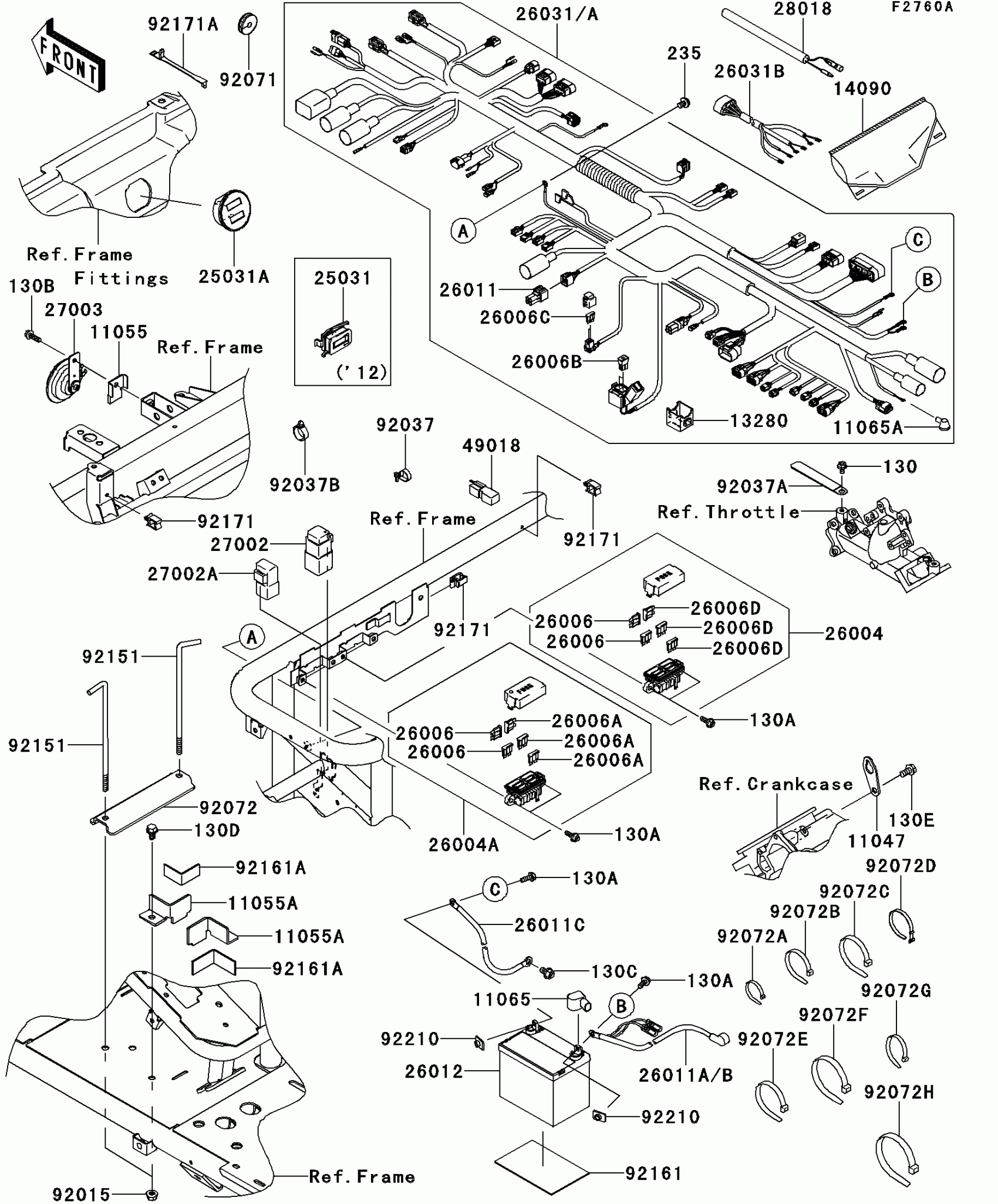

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Chassis Electrical Equipment(SCF/SDF) Diagram

#

Description
Price

11047

BRACKET,F.BLACK

11047-2056-9H

$8.44

11055

BRACKET,HORN

11055-0167

$3.62

11055A

BRACKET

11055-0433

$3.77

11065

CAP,BATTERY TERMINAL

11065-0285

$4.60

11065A

CAP,NEUTRAL SW.

11065-0726

$7.60

13280

HOLDER

13280-7508

$3.21

14090

COVER,COUPLER

14090-1611

$8.51

25031A

METER-ASSY

25031-0455

Unavailable

26004

FUSE-ASSY

26004-0018

$43.96

26004A

FUSE-ASSY

26004-0019

$43.96

26006

FUSE,BLADE,30A,GREEN

26006-0004

$6.02

26006A

FUSE,BLADE,10A,RED

26006-0005

$6.02

26006B

FUSE,SLOW BLOW,BT,40A,GREEN

26006-0014

$5.24

26006C

FUSE,7.5A

26006-0015

$5.24

26006D

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26011

WIRE-LEAD

26011-0037

$13.02

26011B

WIRE-LEAD,BATTERY(+)

26011-0773

$51.97

26011C

WIRE-LEAD,BATTERY(-)

26011-7516

$50.02

26012

BATTERY,12V 14AH

26012-0107

Unavailable

26031A

HARNESS,MAIN

26031-1464

$782.58

26031B

HARNESS

26031-2080

$102.85

27002

RELAY-ASSY

27002-1068

$68.42

27002A

RELAY-ASSY

27002-1088

$42.06

27003

HORN

27003-1330

$64.25

28018

RESISTOR

28018-0553

$29.54

49018

DIODE

49018-0005

$47.13

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,HARNESS,L=100

92037-1636

$7.68

92037B

CLAMP,HOSE

92037-1827

$7.45

92071

GROMMET

92071-1136

$7.38

92072

BAND

92072-0112

$11.81

92072A

BAND,L=123

92072-030

$5.00

92072B

BAND,L=149

92072-031

$5.00

92072C

BAND,L=218

92072-032

$5.00

92072D

BAND,L=186

92072-056

$5.00

92072E

BAND,L=202

92072-1195

$1.56

92072F

BAND,L=250

92072-1237

$2.14

92072G

BAND,L=188

92072-1239

$1.73

92072H

BAND,L=368.3

92072-3872

$1.59

92151

BOLT,BATTERY

92151-1897

$6.69

92161

DAMPER

92161-0578

$4.25

92161A

DAMPER

92161-0580

$2.40

92171

CLAMP

92171-0290

$3.73

92171A

CLAMP

92171-1365

$4.20

92210

NUT,PLATE,6MM

92210-1352

$2.41

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X20

130BA0620

$1.74

130C

BOLT-FLANGED,8X12

130BA0812

$0.95

130D

BOLT-FLANGED,8X14

130BA0814

$2.16

130E

BOLT-FLANGED,8X16

130BA0816

$1.12

235

SCREW-PAN-WP-CROS,6X10

235AA0610

$3.86
