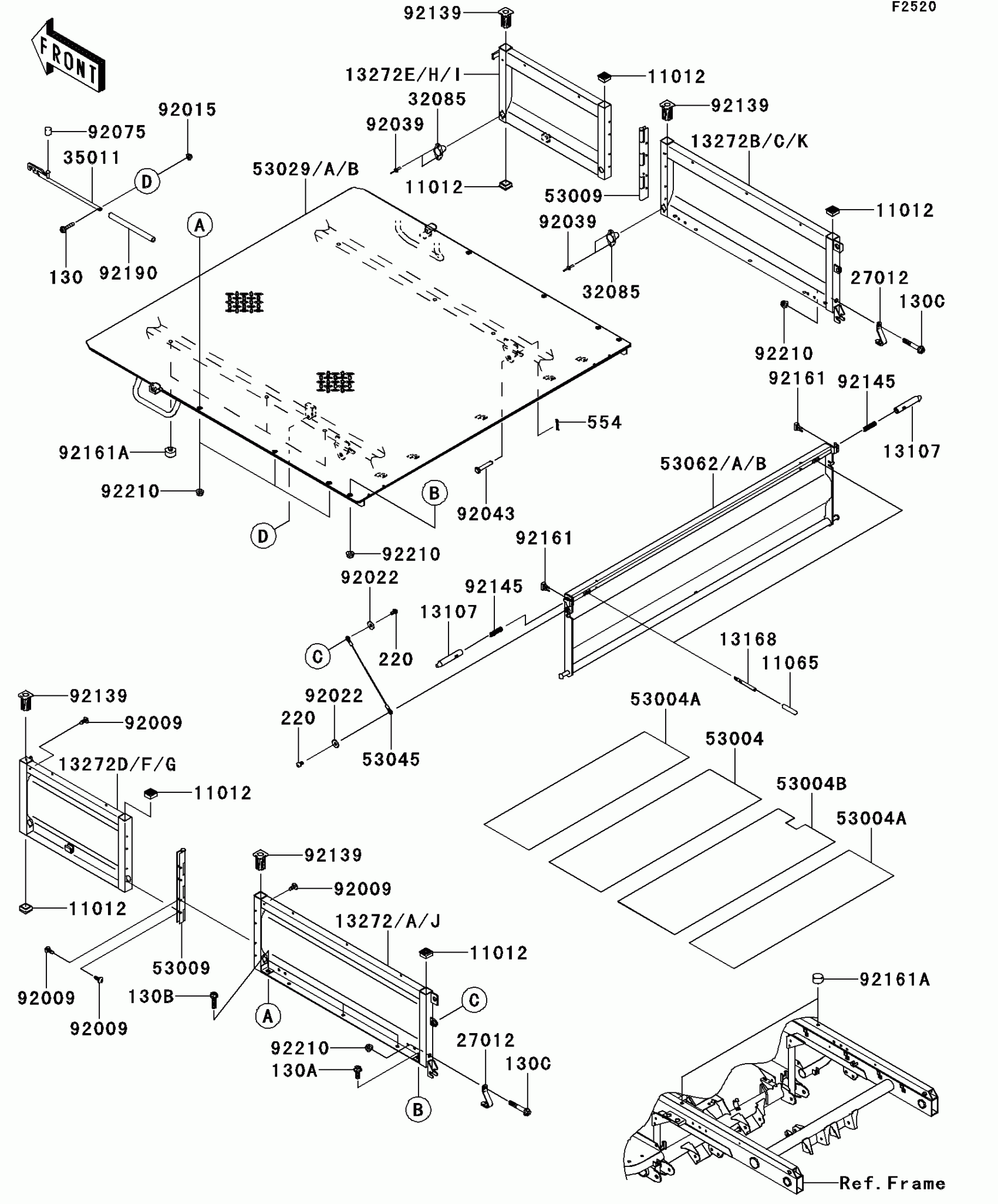

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Carrier(s) Diagram
#
11012
CAP
11012-1784
$6.32
11065
CAP
11065-0126
$3.38
13107
SHAFT
13107-0082
$65.41
13168
LEVER
13168-0090
$12.04
13272
PLATE,SIDE,RR,LH,CAMOUFLAGE
13272-0296-16N
$277.11
13272B
PLATE,SIDE,RR,RH,CAMOUFLAGE
13272-0297-16N
$277.11
13272D
PLATE,SIDE,FR,LH,CAMOUFLAGE
13272-0501-16N
$176.86
13272E
PLATE,SIDE,FR,RH,CAMOUFLAGE
13272-0502-16N
$176.86
13272F
PLATE,SIDE,FR,LH,CAMOUFLAGE
13272-0503-16N
$180.63
13272H
PLATE,SIDE,FR,RH,CAMOUFLAGE
13272-0504-16N
$180.63
13272J
PLATE,SIDE,RR,LH,CAMOUFLAGE
13272-1178-16N
Unavailable
13272K
PLATE,SIDE,RR,RH,CAMOUFLAGE
13272-1179-16N
Unavailable
27012
HOOK,TAIL GATE
27012-0022
$6.43
32085
STOPPER
32085-7501
$6.96
35011
STAY,CARRIER STOPPER
35011-1648
$28.90
53004
MAT,CARRIER
53004-0031
$115.68
53004A
MAT,CARRIER
53004-0032
$115.68
53004B
MAT
53004-7501
$111.97
53009
HINGE,CARRIER
53009-7501
$46.65
53029
CARRIER,BASE PLATE,BLACK
53029-0061-10
$939.13
53029B
CARRIER,BASE PLATE,F.BLACK
53029-0313-21
$884.86
53045
HOOK-ASSY,TAIL GATE
53045-0004
$29.74
53062
GATE-TAIL,CAMOUFLAGE
53062-7503-16N
$691.94
53062A
GATE-TAIL,CAMOUFLAGE
53062-7504-16N
$704.78
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92022
WASHER,7X18X1.2
92022-1545
$1.03
92039
RIVET
92039-1150
$3.92
92043
PIN,12X65
92043-1428
$10.09
92075
DAMPER
92075-1817
$6.22
92139
BUSHING,REAR SCREEN
92139-7501
$4.67
92145
SPRING,TENSIONER
92145-1215
$4.63
92161
DAMPER
92161-0258
$4.16
92161A
DAMPER
92161-7510
$4.36
92190
TUBE,13X16X200
92190-1401
$5.25
92210
NUT,FLANGED,8MM
92210-0555
$2.03
130
BOLT-FLANGED,6X30
130BA0630
$1.46
130A
BOLT-FLANGED,8X20
130BB0820
$0.84
130B
BOLT-FLANGED,8X30
130BB0830
$4.49
130C
BOLT-FLANGED,8X50
130BB0850
$4.73
220
SCREW-PAN-CROS,6X10
220AB0610
$1.81
554
PIN-SNAP,12MM
554DA1200
$3.96
