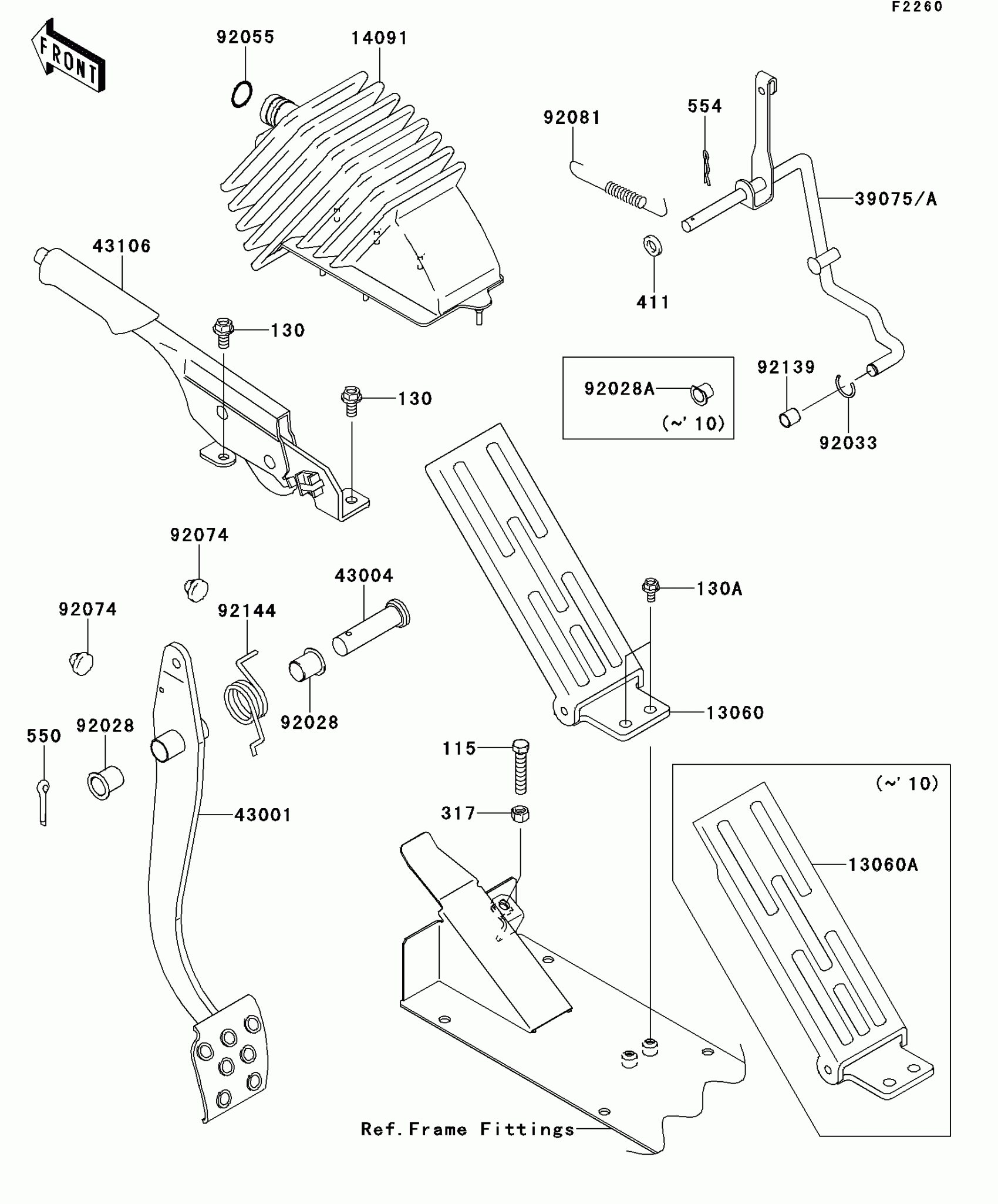

Kawasaki MULE™ 4010 TRANS4x4 Realtree APG HD Brake Pedal/Throttle Lever Diagram

Description

Price

13060

PEDAL,THROTTLE

13060-0023

$48.03

14091

COVER,PARKING LEVER

14091-0067

$77.76

39075

LEVER-THROTTLE

39075-0016

$73.27

43001

LEVER-BRAKE,PEDAL

43001-1320

$57.55

43004

SHAFT-BRAKE

43004-1128

$17.76

43106

LEVER-ASSY-PARKING BRAKE

43106-1005

Unavailable

92028

BUSHING

92028-1571

$10.67

92033

RING-SNAP

92033-1247

$3.91

92055

RING-O,18X24X3

92055-1633

$6.18

92074

PLUG,7X2

92074-028

$4.26

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$6.16

92139

BUSHING

92139-0308

$3.62

92144

SPRING

92144-1536

$8.30

115

BOLT-SMALL-UPSET,8X40

115AA0840

$5.77

130

BOLT-FLANGED,8X16

130AA0816

$0.85

130A

BOLT-FLANGED,6X12

130AB0612

$0.67

317

NUT-HEX-SMALL,8MM

317BA0800

$1.67

411

WASHER-PLAIN,10MM

411AA1000

$0.96

550

PIN-COTTER,2.5X25

550AA2525

$1.36

554

PIN-SNAP,10MM

554DA1000

$1.36
