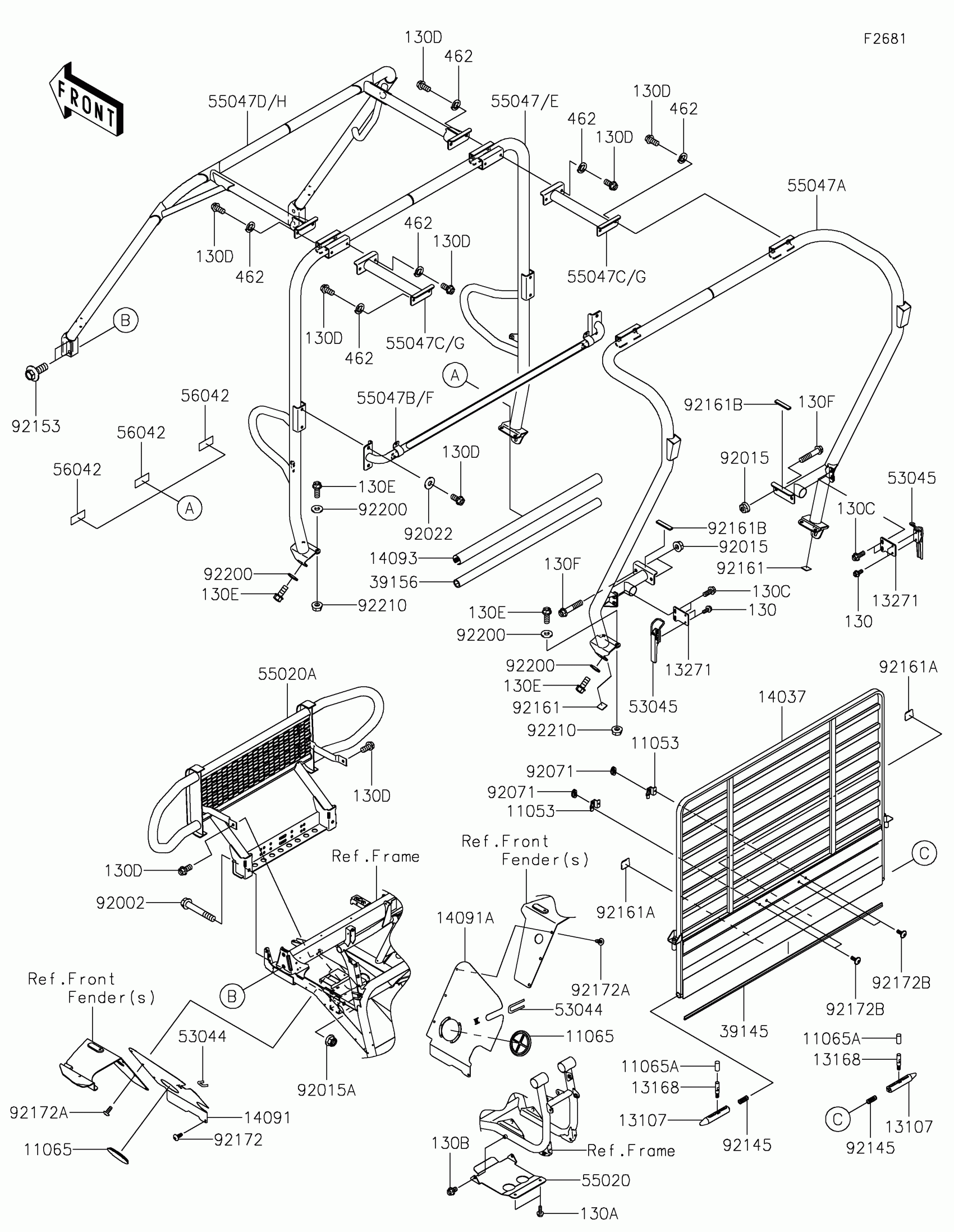

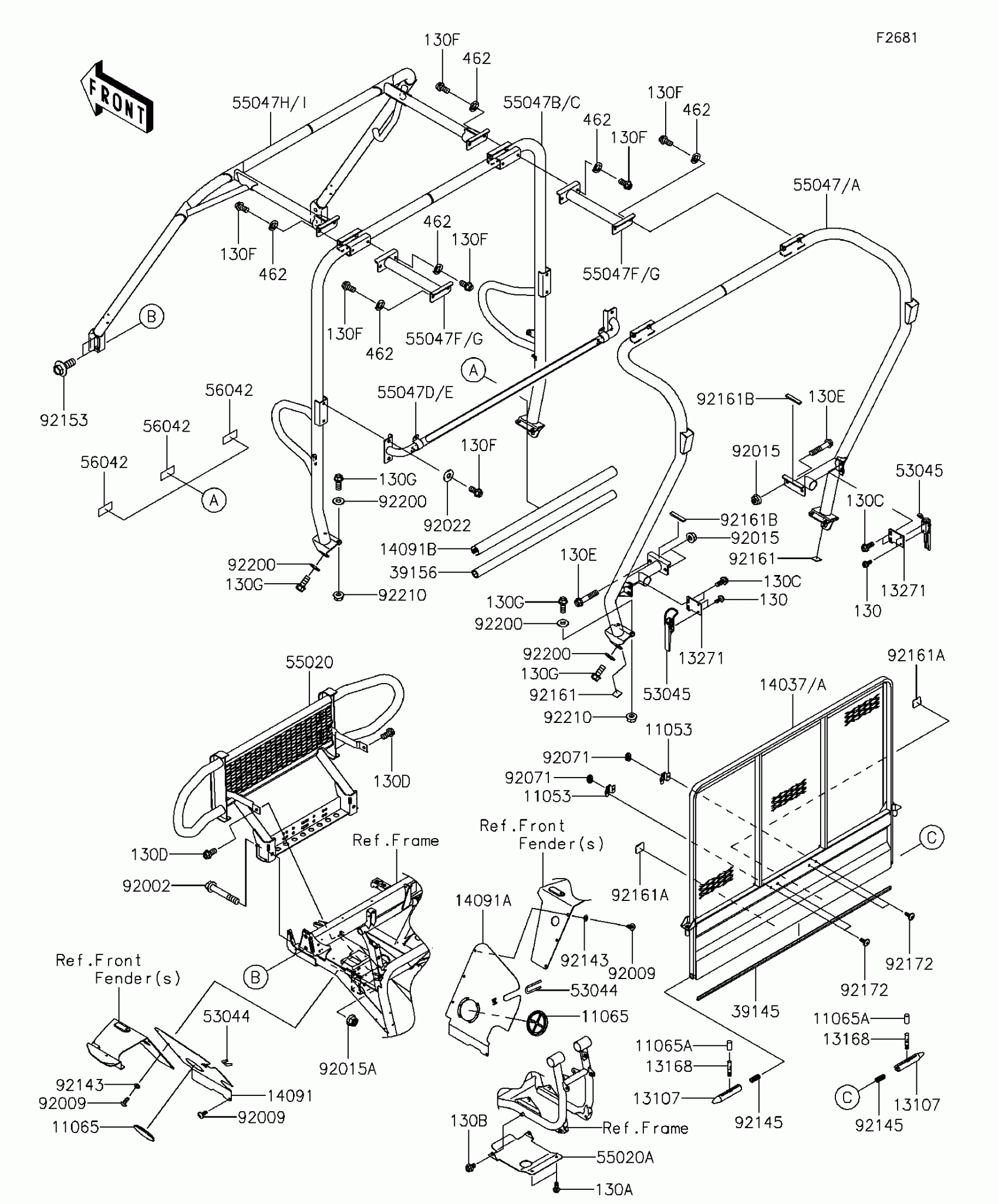

Kawasaki MULE™ 4010 TRANS4x4® Guards/Cab Frame Diagram

#

Description
Price

11053

BRACKET,SCREEN

11053-7528

$5.99

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

11065A

CAP

11065-7503

$1.69

13107

SHAFT

13107-7501

$10.88

13168

LEVER

13168-7506

$8.17

13271

PLATE,HOOK

13271-7540

$11.77

14037

SCREEN,REAR CAB,T.BLACK

14037-0811-388

$195.95

14091

COVER,FR,LH

14091-1758

$75.61

14091A

COVER,FR,RH

14091-1759

$75.61

14093

COVER

14093-0907

$32.35

39145

TRIM-SEAL,L=1157

39145-7502

$29.08

39156

PAD

39156-7506

$11.59

53044

TRIM

53044-1137

$10.65

53045

HOOK-ASSY

53045-7501

$23.27

55020

GUARD,GEAR CASE

55020-2295

$30.42

55020A

GUARD,FR

55020-2299

$252.43

55047

BAR-COMP,CNT,T.BLACK

55047-0353-388

$543.51

55047A

BAR-COMP,RR,T.BLACK

55047-0385-388

$659.59

55047B

BAR-COMP,FRONT SEAT,T.BLACK

55047-0442-388

$69.28

55047C

BAR-COMP,TOP,T.BLACK

55047-0443-388

$48.93

55047D

BAR-COMP,FR,T.BLACK

55047-0444-388

$459.18

55047E

BAR-COMP,CNT,T.BLACK

55047-0445-388

$528.68

55047F

BAR-COMP,FRONT SEAT,T.BLACK

55047-7503-388

$71.19

55047G

BAR-COMP,TOP,T.BLACK

55047-7504-388

$50.30

55047H

BAR-COMP,FR,T.BLACK

55047-7510-388

$472.03

56042

ADHESIVE

56042-7502

$1.45

92002

BOLT,FLANGED,12X75

92002-1661

$13.75

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92071

GROMMET

92071-7505

$2.26

92145

SPRING,TENSIONER

92145-1215

$4.63

92153

BOLT,FLANGED,14X36

92153-1282

$7.63

92161

DAMPER

92161-0020

$5.00

92161A

DAMPER

92161-0061

$2.41

92161B

DAMPER

92161-7514

$1.45

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92172A

SCREW,6X16

92172-0826

$2.26

92172B

SCREW,6X14

92172-0996

$2.58

92200

WASHER,10.2X23X2.5

92200-0211

$3.35

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,8X12

130BA0812

$0.95

130C

BOLT-FLANGED,8X20

130BA0820

$4.14

130D

BOLT-FLANGED,10X20

130BA1020

$3.35

130E

BOLT-FLANGED,10X25

130BA1025

$3.40

130F

BOLT-FLANGED,10X50

130BA1050

$1.64

462

WASHER-SPRING,10MM

462DA1000

$4.60
