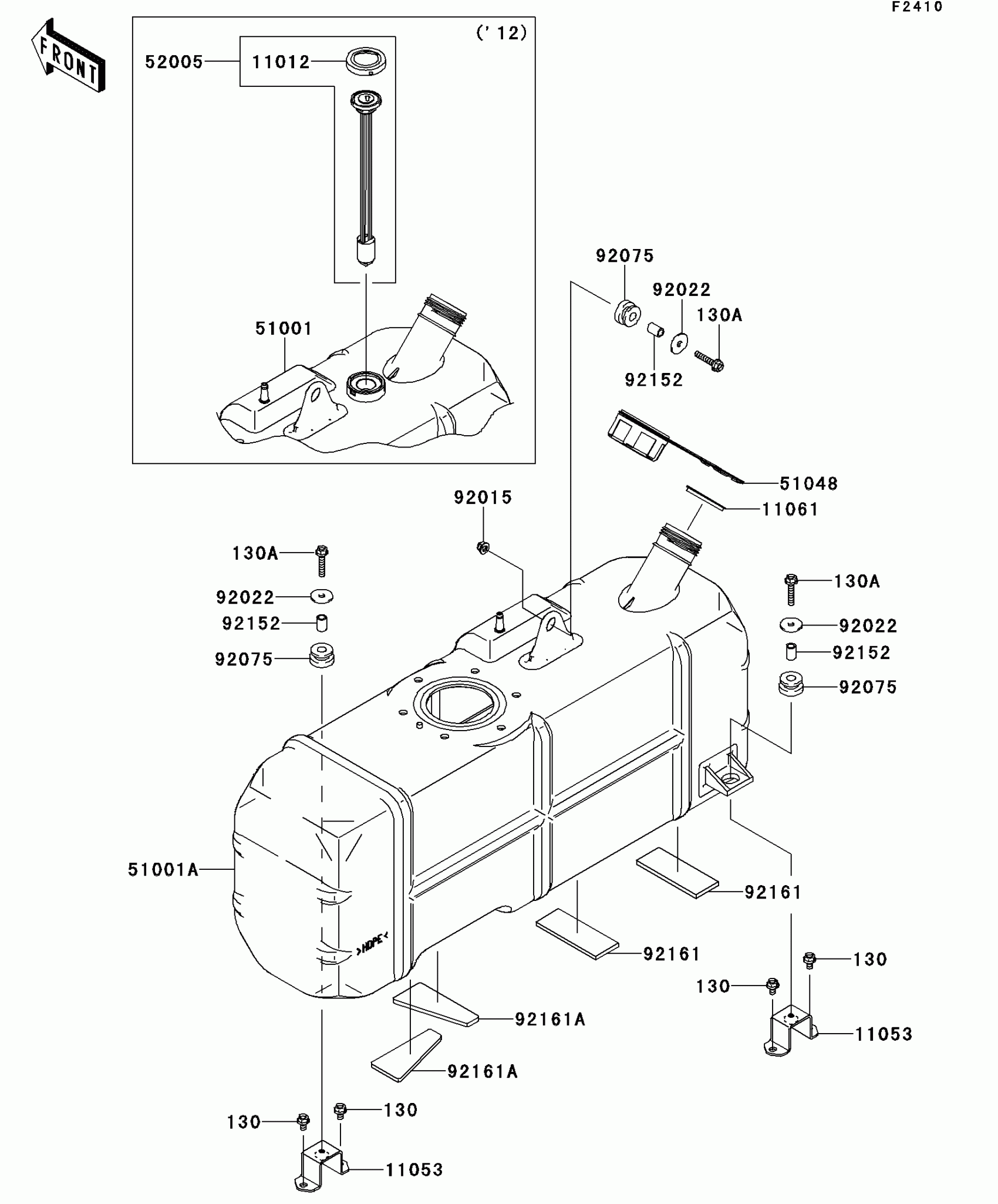

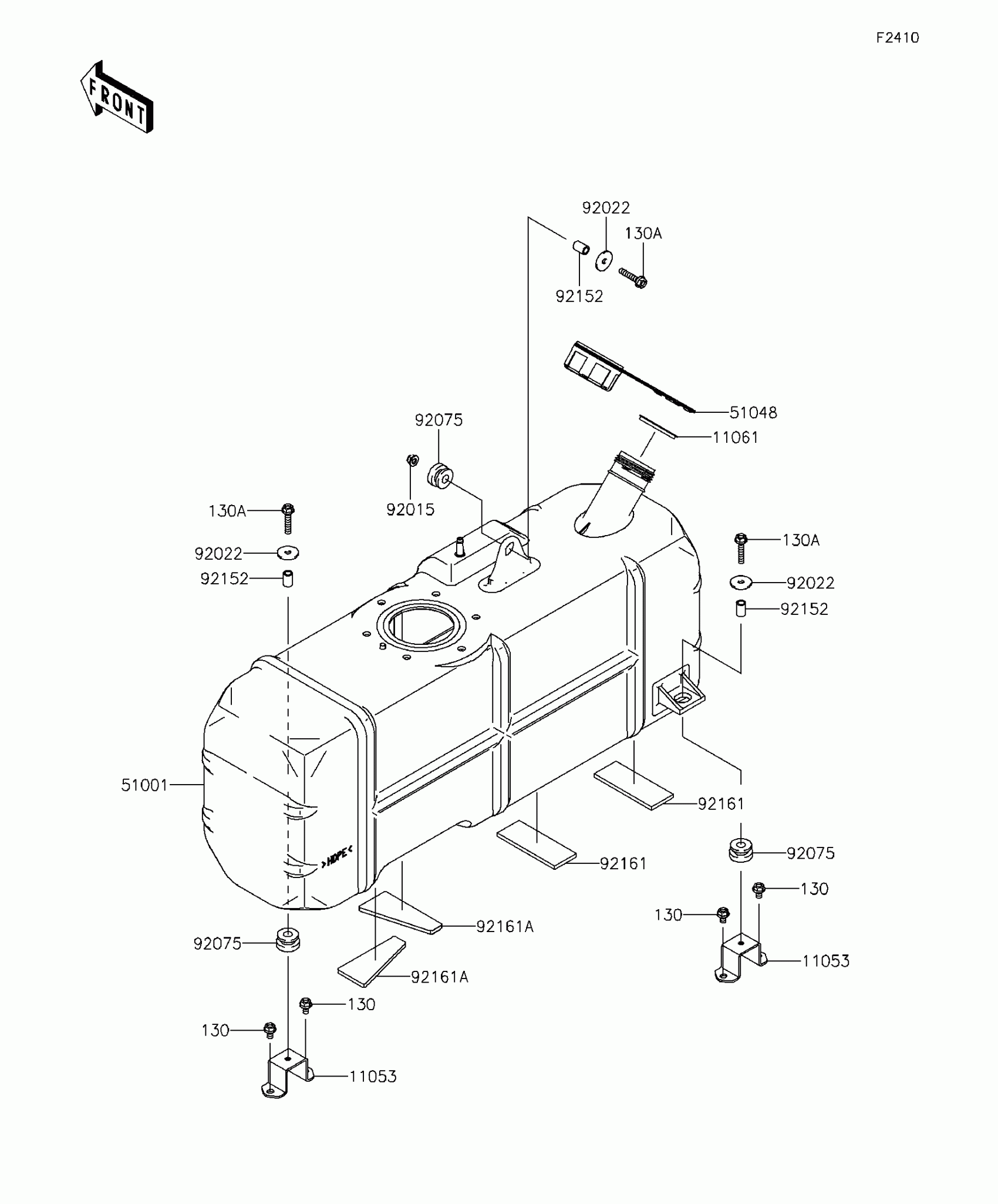

Kawasaki Mule 4010 Trans4x4 Fuel Tank Diagram

Description

Price

11012

CAP,FUEL GAUGE

11012-1627

$12.87

11053

BRACKET

11053-7512

$6.97

11061

GASKET,FUEL TANK CAP

11061-0395

$4.45

51001

TANK-COMP-FUEL

51001-0293

Unavailable

51001A

TANK-COMP-FUEL

51001-0763

$424.96

51048

CAP-ASSY-TANK,FUEL

51048-0026

$9.66

52005

GAUGE,FUEL

52005-7501

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,6.5X24X2

92022-1690

$2.99

92075

DAMPER

92075-1787

$5.00

92152

COLLAR,7.02X10.32X15.3

92152-7511

$1.47

92161

DAMPER,92X35X4.76

92161-0813

$3.88

92161A

DAMPER,92X19X4.76

92161-0814

$3.32

130

BOLT-FLANGED,6X10

130BA0610

$1.12

130A

BOLT-FLANGED,6X30

130BA0630

$1.31
