2021 Kawasaki Mule™ 4010 TRANS4x4® FE SUN TOP Diagram

← All diagrams

Find the part on the SUN TOP diagram for your 2021 Kawasaki Mule™ 4010 TRANS4x4® FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

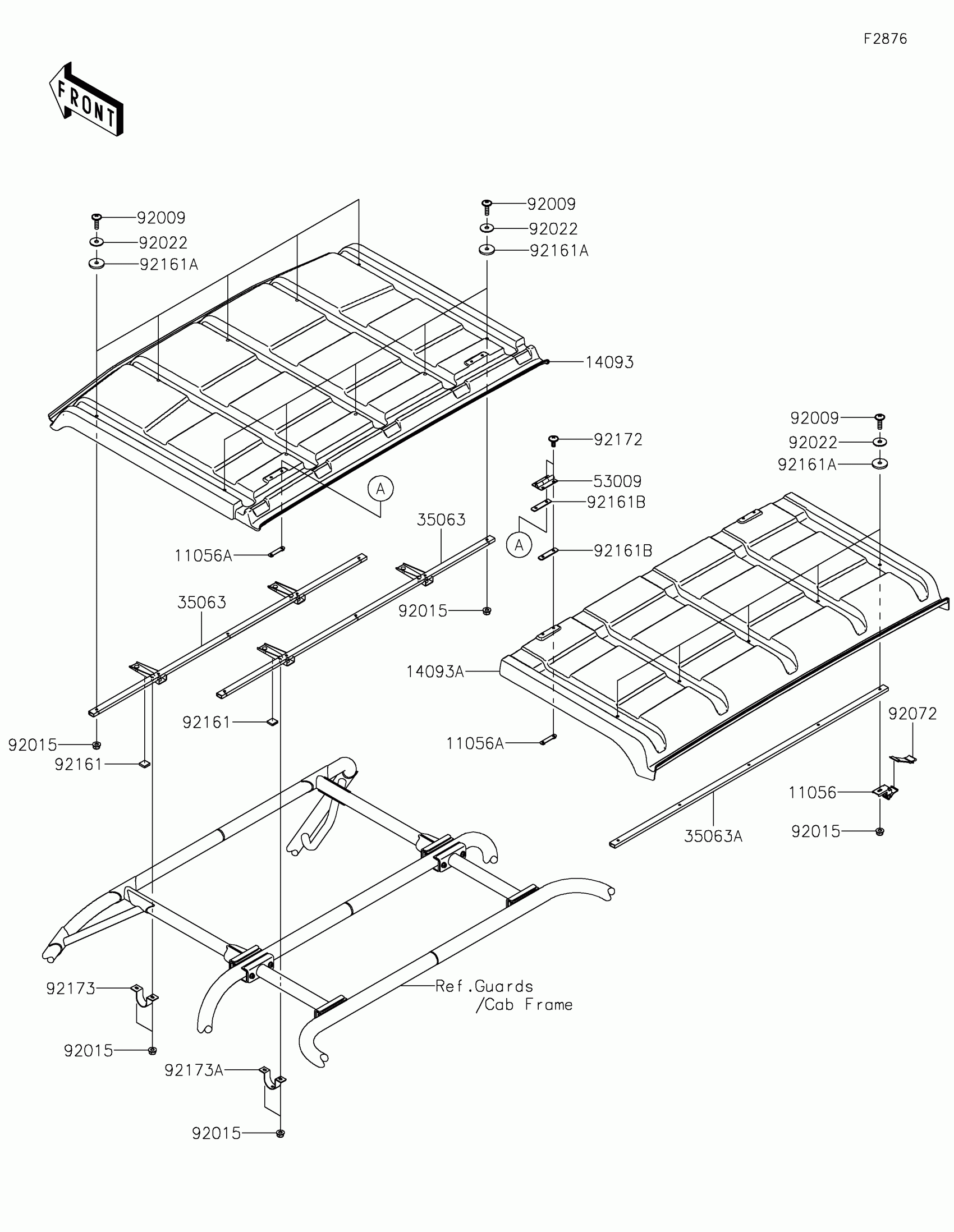

2021 Kawasaki Mule™ 4010 TRANS4x4® FE SUN TOP Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-3815

1
Out of stock

11056A

BRACKET

11056-3910

1
Out of stock

14093

COVER,SUN TOP,4P,FR

14093-0318

1
Out of stock

14093A

COVER,SUN TOP,4P,RR

14093-0319

1
Out of stock

35063

STAY,SUN TOP,FR

35063-1311

1
Out of stock

35063A

STAY,SUN TOP,RR

35063-1312

1
Out of stock

53009

HINGE

53009-0034

1

$8.12

In stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92072

BAND,TOOL

92072-1176

1
Out of stock

92161

DAMPER,25.4X25.4X6.3

92161-1405

1
Out of stock

92161A

DAMPER,6X25X3.15

92161-1633

1

$0.54

In stock

92161B

DAMPER

92161-1650

1

$14.20

In stock

92172

SCREW,6X14

92172-0004

1
Out of stock

92173

CLAMP,R22

92173-0884

1
Out of stock

92173A

CLAMP,R24

92173-1472

1
Out of stock
