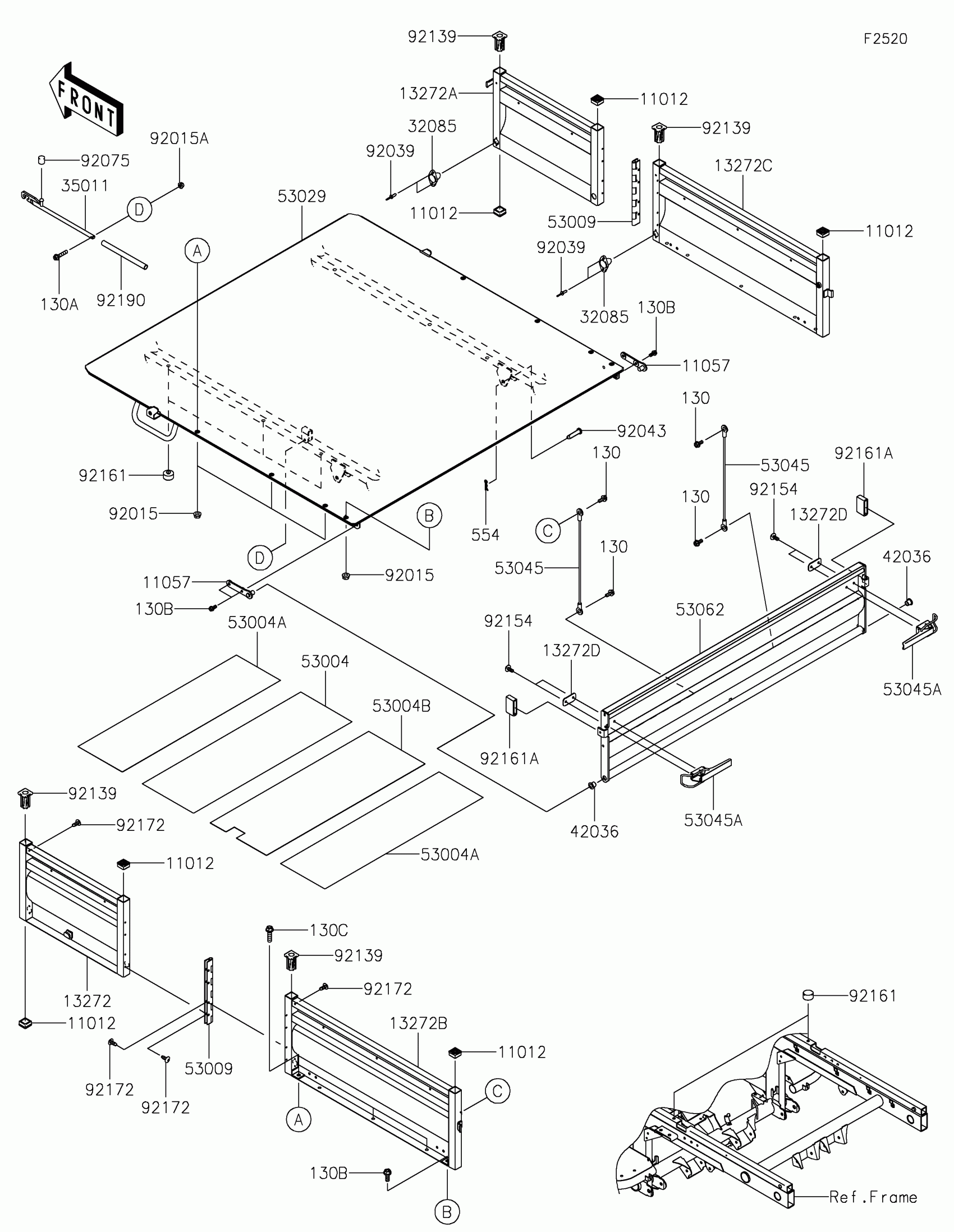

Kawasaki MULE™ 4010 TRANS4x4® FE Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

11057

BRACKET,TAIL GATE

11057-1623

$9.25

13272

PLATE,SIDE,FR,LH,BLACK

13272-2896-10

$106.24

13272A

PLATE,SIDE,FR,RH,BLACK

13272-2897-10

$106.24

13272B

PLATE,SIDE,RR,LH,BLACK

13272-2898-10

$156.77

13272C

PLATE,SIDE,RR,RH,BLACK

13272-2899-10

$156.77

13272D

PLATE

13272-7516

$7.25

32085

STOPPER

32085-7501

$6.61

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

42036

SLEEVE

42036-0839

$1.96

53004

MAT,CARRIER

53004-0639

$115.64

53004A

MAT,CARRIER

53004-0640

$115.64

53004B

MAT,CARRIER

53004-0641

$125.94

53009

HINGE

53009-0031

$2.96

53029

CARRIER,BASE PLATE,BLACK

53029-0366-10

$896.93

53045

HOOK-ASSY,CABLE

53045-0030

$24.61

53045A

HOOK-ASSY

53045-0033

$21.71

53062

GATE-TAIL,BLACK

53062-0029-10

$405.72

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92039

RIVET

92039-1150

$3.53

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92139

BUSHING,REAR SCREEN

92139-7501

$4.14

92154

BOLT,SOCKET,6X14

92154-4238

$2.19

92161

DAMPER

92161-7510

$3.32

92161A

DAMPER

92161-7519

$2.68

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92190

TUBE,13X16X200

92190-1401

$4.63

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X30

130BA0630

$1.13

130B

BOLT-FLANGED,8X20

130BA0820

$3.04

130C

BOLT-FLANGED,8X30

130BA0830

$1.44

554

PIN-SNAP,12MM

554DA1200

$2.63
