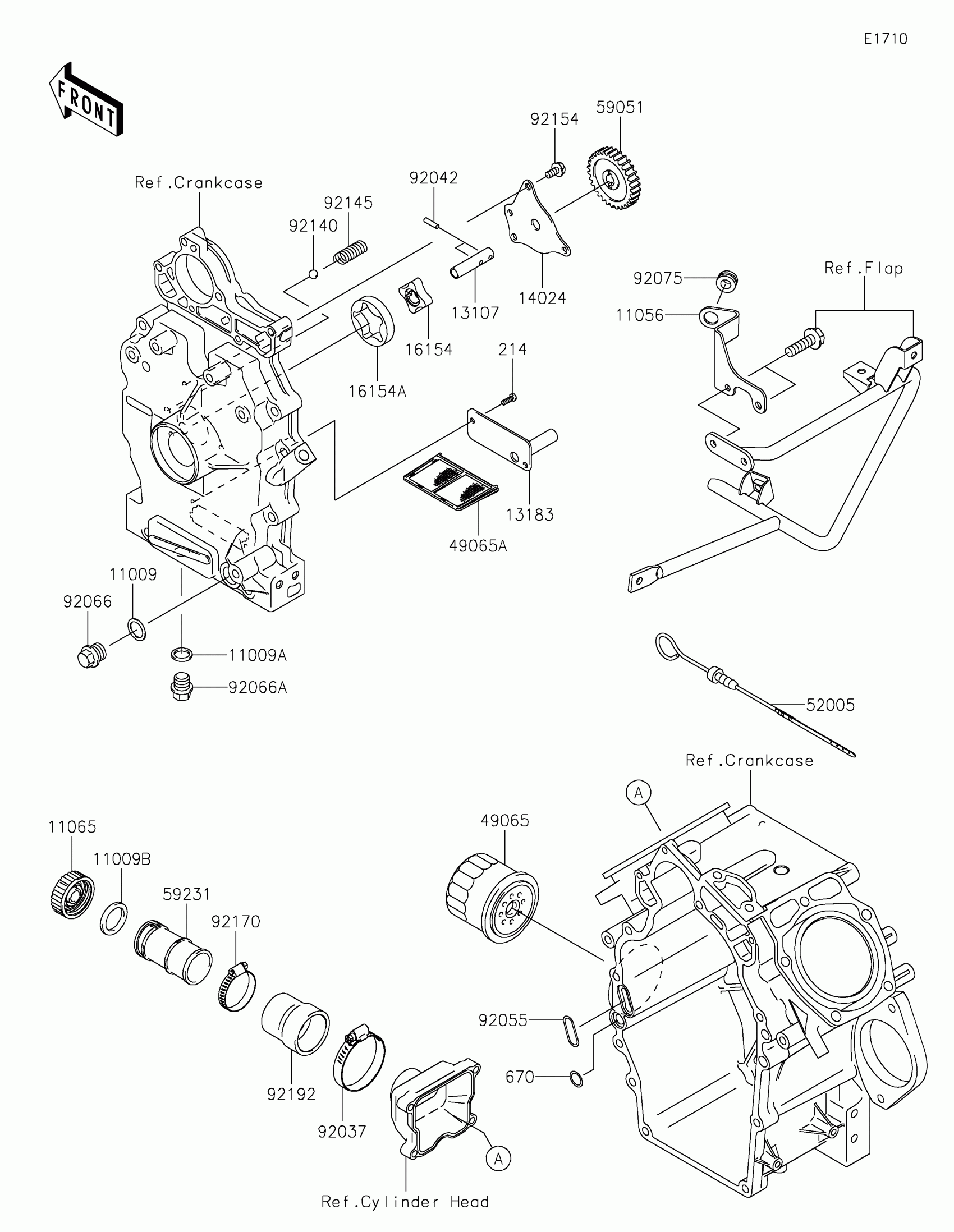

Kawasaki MULE™ 4010 TRANS4x4® FE Oil Pump/Oil Filter Diagram

Description

Price

11009

GASKET,16.2X22X1

11009-1467

$3.55

11009A

GASKET

11009-2175

$1.14

11009B

GASKET,OIL GAUGE

11009-2346

$1.94

11056

BRACKET,OIL PIPE

11056-4081

$7.32

11065

CAP

11065-1487

$7.69

13107

SHAFT,OIL PUMP

13107-2296

$11.29

13183

PLATE

13183-2419

$17.59

14024

COVER,OIL PUMP

14024-2113

$4.09

16154

ROTOR-PUMP,IN

16154-2053

$8.24

16154A

ROTOR-PUMP,OUT

16154-2054

$8.35

49065

FILTER-OIL

49065-2071

$14.43

49065A

FILTER-OIL

49065-2072

$6.28

52005

GAUGE

52005-0747

$46.00

59051

GEAR-SPUR

59051-2114

$6.52

59231

FILLER

59231-0757

$11.10

92037

CLAMP

92037-506

$5.22

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92055

RING-O

92055-2086

$1.17

92066

PLUG,16X11.5

92066-2251

$5.89

92066A

PLUG,14X12

92066-2253

$1.82

92075

DAMPER

92075-1409

$6.45

92140

BALL,STEEL,13/32

92140-7003

$1.29

92145

SPRING,OIL RELIEF

92145-1809

$0.90

92154

BOLT,6X12

92154-2938

$0.59

92170

CLAMP

92170-1036

$8.72

92192

TUBE

92192-7502

$19.20

214

SCREW-PAN+-,5X12

214AA0512

$0.68

670

O RING,11MM

670B2011

$1.28
