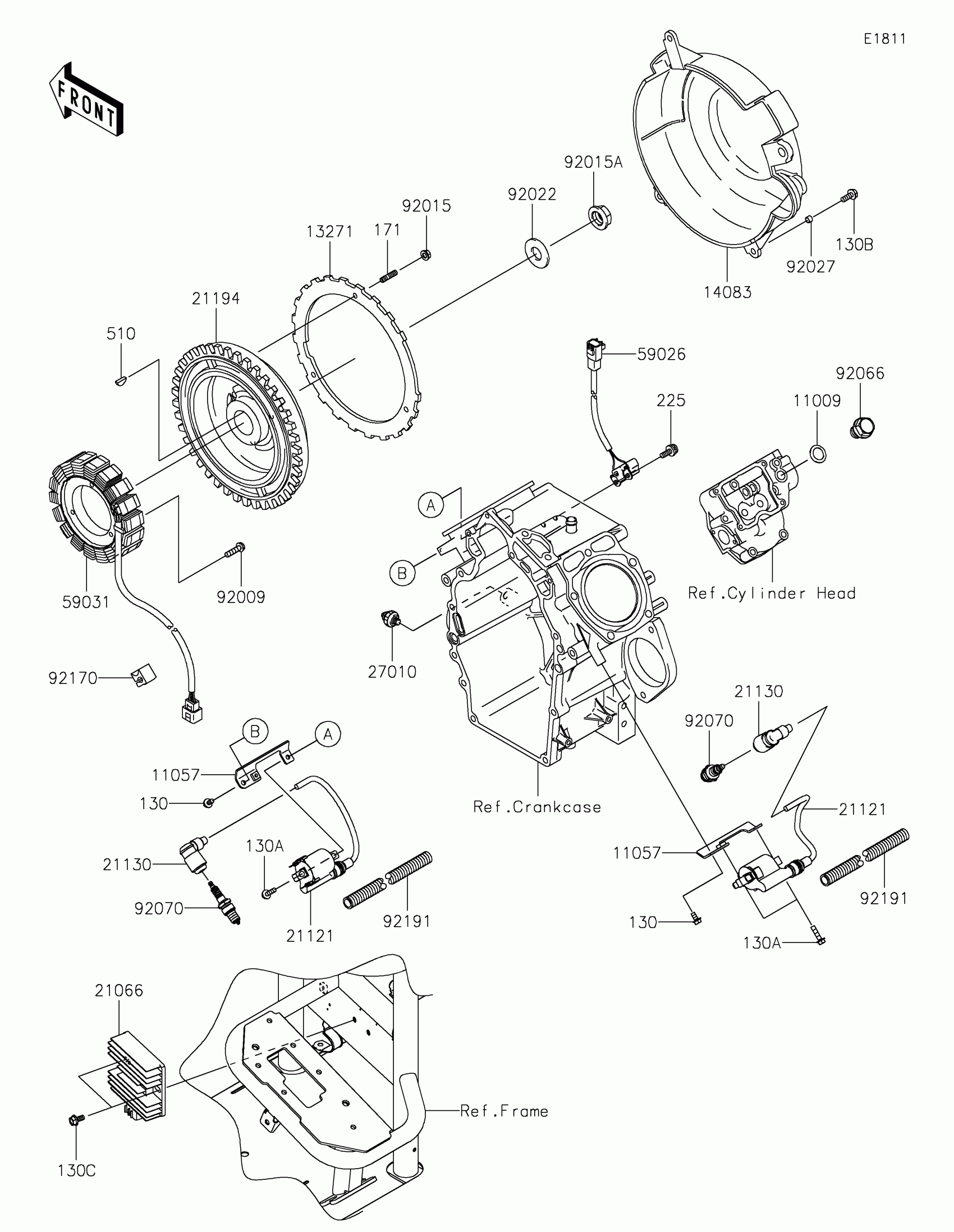

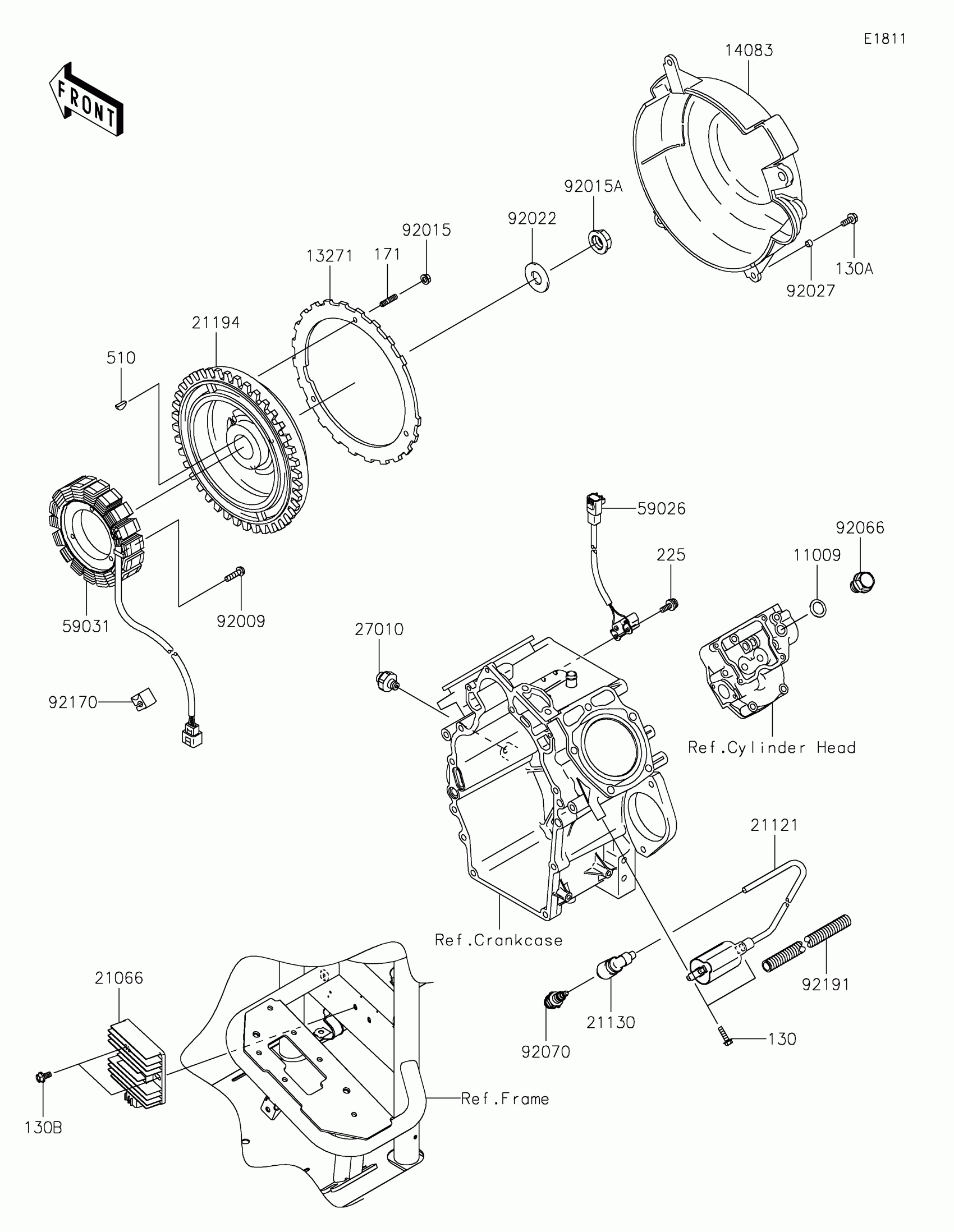

Kawasaki MULE™ 4010 TRANS4x4® FE Generator/Ignition Coil Diagram

Description

Price

11009

GASKET,16X24X1

11009-2566

$0.62

11057

BRACKET,IGNITION COIL

11057-7728

$9.31

13271

PLATE

13271-2269

$55.45

14083

COVER-FLYWHEEL

14083-0001

$30.62

21066

REGULATOR-VOLTAGE

21066-0717

$189.06

21121

COIL-IGNITION

21121-0749

$63.73

21130

CAP-SPARK PLUG

21130-2060

$10.65

21194

FLYWHEEL-COMP

21194-2352

$387.07

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

59026

COIL-PULSING

59026-0567

$53.64

59031

COIL-CHARGING

59031-2136

$252.92

92009

SCREW,6X25

92009-2273

$1.14

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT

92015-2167

$6.54

92022

WASHER

92022-2229

$3.08

92027

COLLAR,6.2X7.8X5

92027-2096

$0.49

92066

PLUG,DRAIN

92066-2099

$5.81

92070

PLUG-SPARK,BPR2ES(NGK),SOLID

92070-2110

$4.20

92170

CLAMP

92170-2056

$3.06

92191

TUBE

92191-2124

$3.89

130

BOLT-FLANGED,5X10

130BA0510

$1.71

130A

BOLT-FLANGED,5X20

130BA0520

$0.92

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

130C

BOLT-FLANGED,6X14

130BB0614

$2.49

171

BOLT-STUD,6X18

171BA0618

$2.59

225

SCREW-PAN-WSP-CROS,4X14

225AA0414

$0.68

510

WOODRUFF KEY

510A5100

$2.70
