Frame Fittings

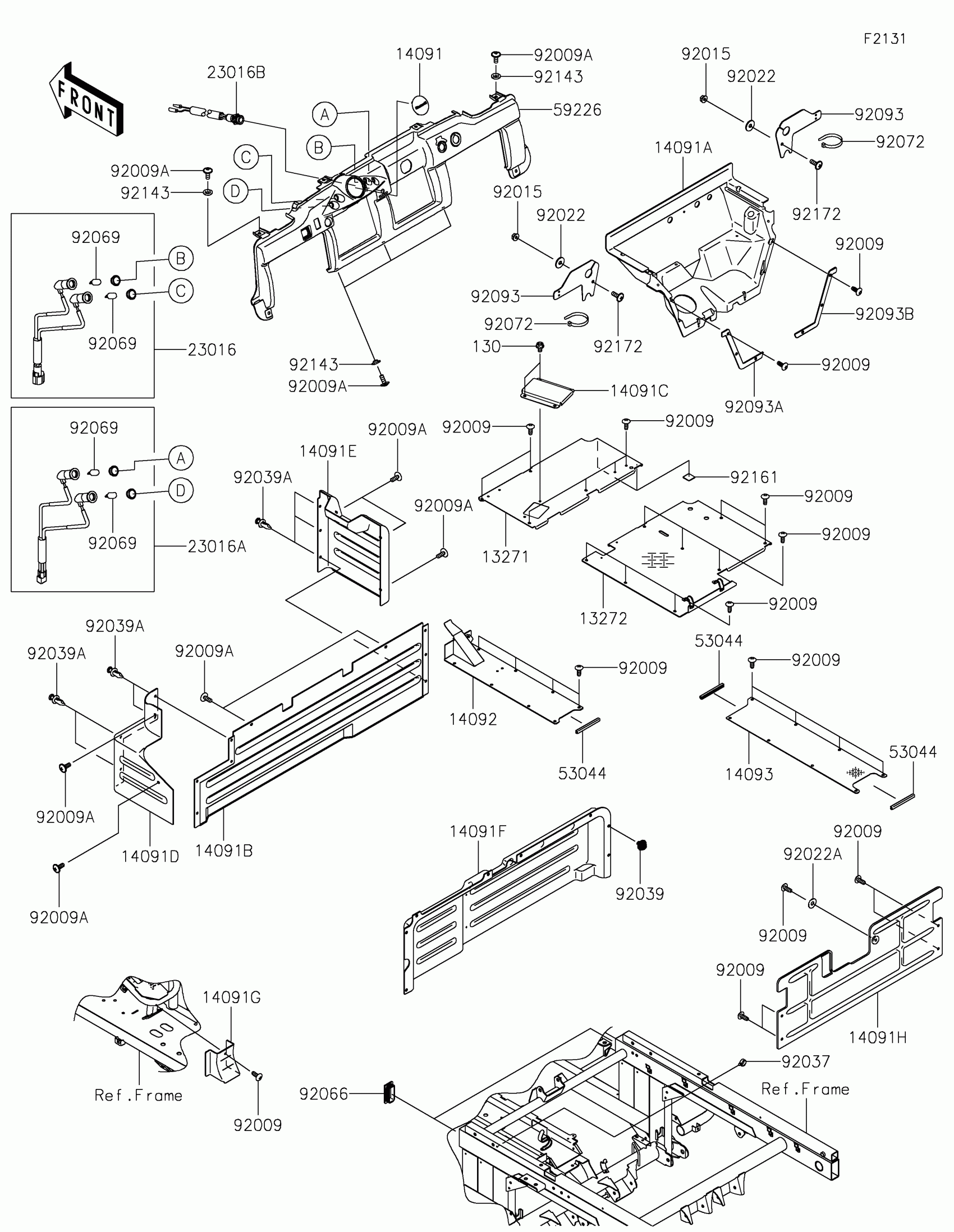

Kawasaki MULE™ 4010 TRANS4x4® FE Frame Fittings Diagram
#
13271
PLATE,FLOOR,RH
13271-7606
$81.72
13272
PLATE,FLOOR,RH
13272-2927
$139.73
14091
COVER,SPEEDOMETER,F.BLACK
14091-0929-6Z
$8.62
14091A
COVER,FLOOR
14091-1378
$98.40
14091B
COVER,FRONT SEAT,CNT
14091-7531
$113.24
14091C
COVER
14091-7536
$20.39
14091D
COVER,FRONT SEAT,LH
14091-7541
$34.21
14091E
COVER,FRONT SEAT,RH
14091-7542
$49.47
14091F
COVER,FRONT SEAT,RR,LWR
14091-7549
$140.62
14091G
COVER,PARKING CABLE
14091-7551
$13.47
14091H
COVER,REAR SEAT,LWR
14091-7557
$98.48
14092
COVER,FLOOR,CNT,FR
14092-0832
$81.76
14093
COVER,FLOOR,CNT,RR
14093-1035
$77.28
23016
LAMP-ASSY,PARKING&WATER TEMP
23016-0649
$86.89
23016A
LAMP-ASSY,DFI&OIL PRESSURE
23016-0650
$86.89
23016B
LAMP-ASSY,LED
23016-0651
$13.16
53044
TRIM,L=111
53044-7502
$7.68
59226
PANEL-CONTROL,F.BLACK
59226-0026-6Z
$114.91
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92022
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92022A
WASHER,7X18X1.2
92022-1545
$1.03
92037
CLAMP,HOSE
92037-1827
$7.45
92039
RIVET
92039-0768
$2.75
92039A
RIVET
92039-0776
$1.19
92066
PLUG
92066-7505
$4.51
92069
BULB,12V 1.7W,T10WB
92069-0103
$4.99
92072
BAND,L=368.3
92072-3872
$1.59
92093
SEAL,LOWER COVER
92093-0181
$23.79
92093A
SEAL,FRONT FENDER,LH
92093-1293
$9.64
92093B
SEAL,FRONT FENDER,RH
92093-1294
$10.00
92143
COLLAR
92143-1087
$4.31
92161
DAMPER
92161-0020
$5.00
92172
SCREW,6X18
92172-0002
$2.80
130
BOLT-FLANGED,6X10
130BA0610
$1.20
