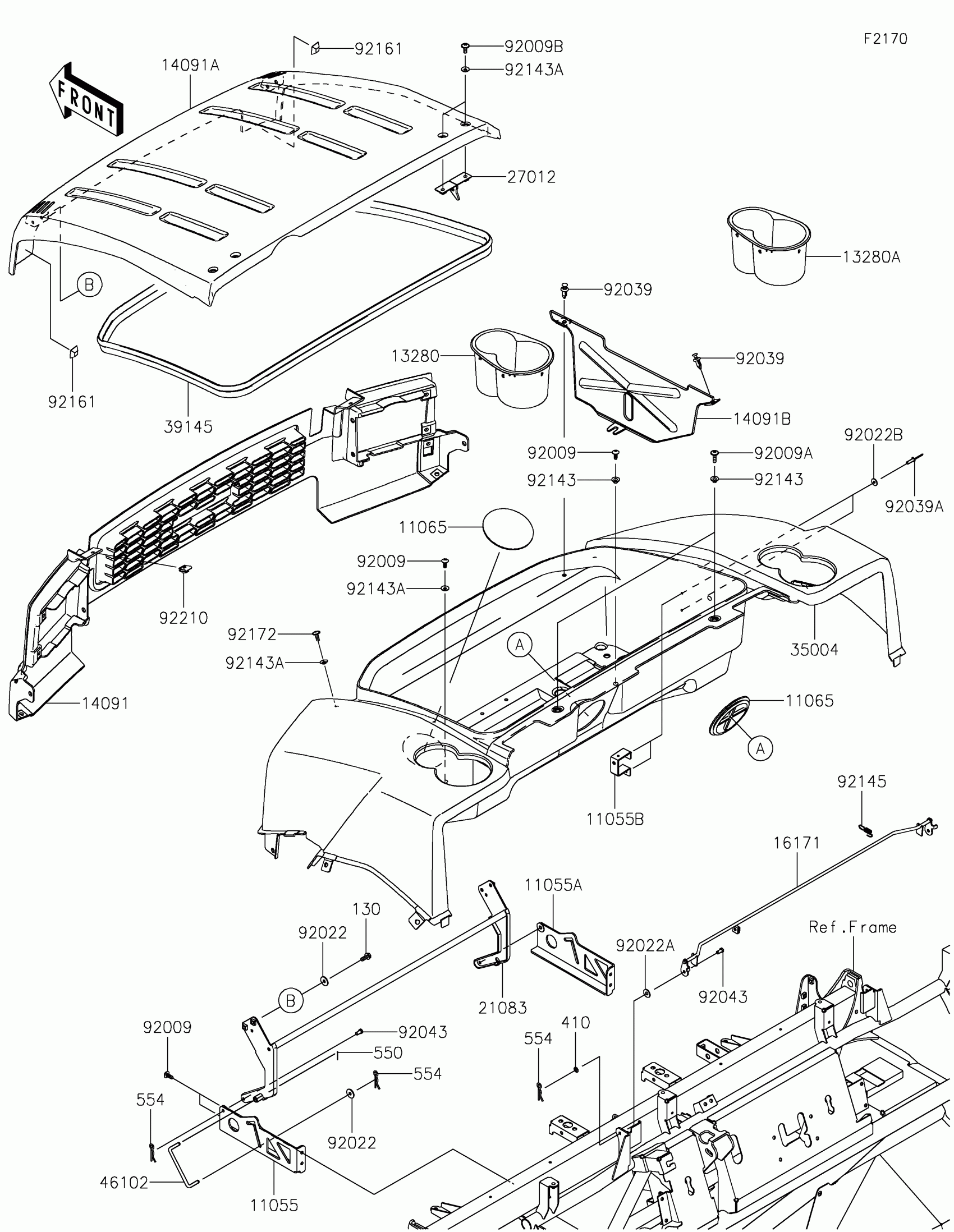

Kawasaki MULE™ 4010 TRANS4x4® FE Fenders Diagram
#
Description
Price
11055
BRACKET,HINGE,LH
11055-0037
$22.13
11055A
BRACKET,HINGE,RH
11055-0038
$22.13
11055B
BRACKET,RESERVOIR TANK
11055-0124
$4.78
11065
CAP,F.BLACK
11065-1053-6Z
$8.40
13280
HOLDER,CUP HOLDER,LH,F.BLACK
13280-0265-6Z
$13.39
13280A
HOLDER,CUP HOLDER,RH,F.BLACK
13280-0266-6Z
$13.39
14091
COVER,FRONT GRILL,B.WHITE
14091-0818-266
$98.06
14091A
COVER,FRONT FENDER,B.WHITE
14091-0829-266
$177.69
14091B
COVER,RESERVOIR TANK
14091-1715
$30.42
16171
LINK
16171-0015
$29.40
21083
ARM,HOOD
21083-0051
$75.54
27012
HOOK,HOOD
27012-0119
$5.68
35004
FENDER-FRONT,CNT,B.WHITE
35004-0096-266
$330.10
39145
TRIM-SEAL,L=2350
39145-0032
$46.93
46102
ROD
46102-0103
$4.09
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X22,BLACK
92009-1256
$2.78
92009B
SCREW,6X16
92009-1621
Unavailable
92022
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92022A
WASHER,7X18X1.2
92022-1545
$1.03
92022B
WASHER,4.3X12.5X1
92022-1949
$3.60
92039
RIVET
92039-0776
$1.19
92039A
RIVET
92039-1150
$3.92
92043
PIN,6X9
92043-1626
$2.26
92143
COLLAR
92143-1057
$5.00
92143A
COLLAR
92143-1087
$4.31
92145
SPRING
92145-0215
$4.55
92161
DAMPER,FR HOOD
92161-0790
$2.26
92172
SCREW,TAPPING,6X20
92172-0488
$3.02
92210
NUT,LEAF SPRING,6MM
92210-0624
$2.32
130
BOLT-FLANGED,6X16
130BA0616
$1.20
410
WASHER-PLAIN-SMALL
410AA0600
$1.31
550
PIN-COTTER,1.6X15
550AA1615
$2.51
554
PIN-SNAP,1.2X21.2
554DA0600
$0.95
