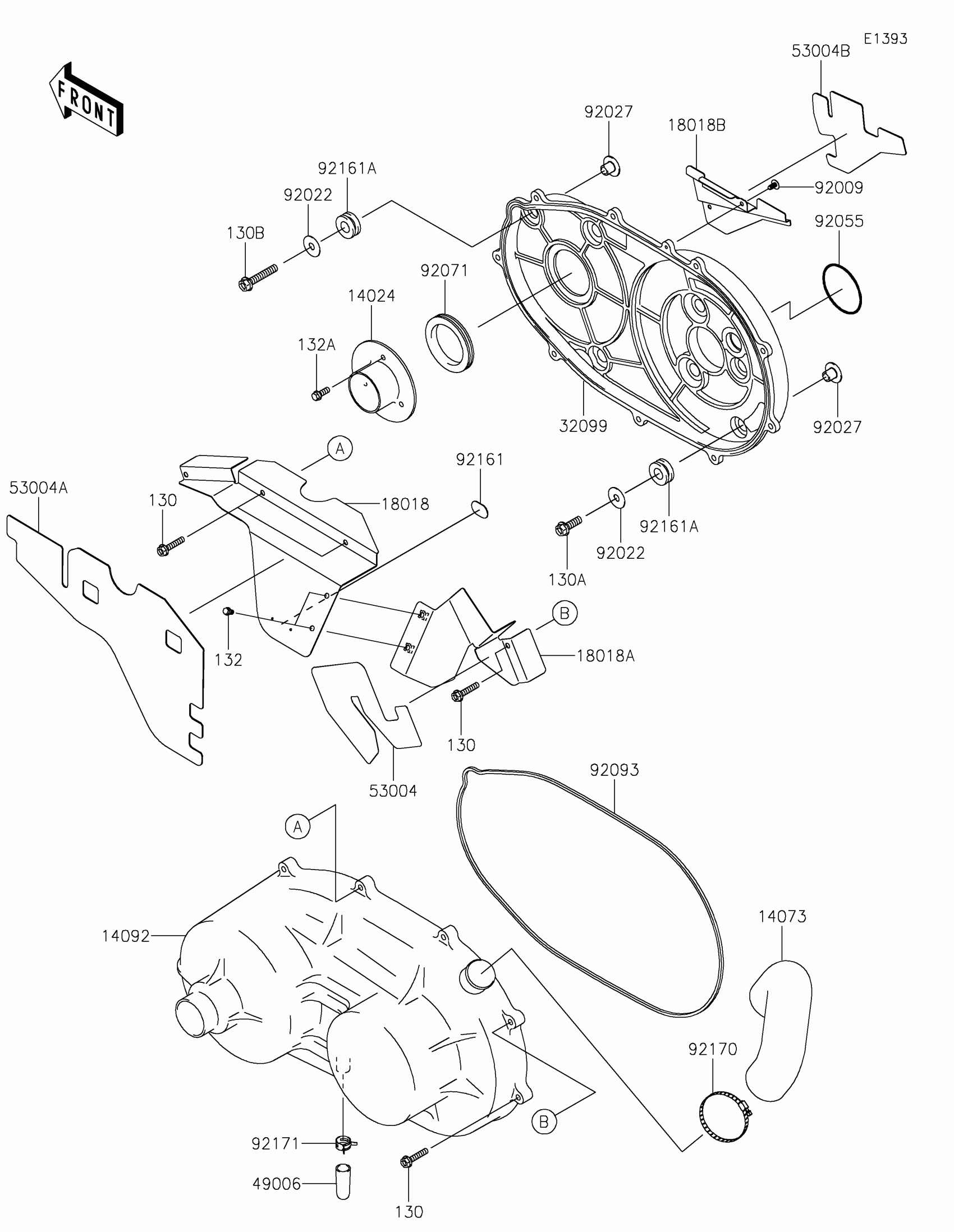

Kawasaki MULE™ 4010 TRANS4x4® FE Converter Cover Diagram

Description

Price

14024

COVER,FAN

14024-1554

$41.67

14073

DUCT,EXHAUST

14073-0234

$13.34

14092

COVER,BELT CONVERTER

14092-1035

$165.91

18018

PLATE-HEAT GUARD

18018-0019

$54.18

18018A

PLATE-HEAT GUARD

18018-0020

$45.48

18018B

PLATE-HEAT GUARD

18018-0021

$16.39

32099

CASE,BELT CONVERTER

32099-0730

$174.74

49006

BOOT

49006-1351

$7.51

53004

MAT

53004-0645

$1.58

53004A

MAT

53004-0646

$2.77

53004B

MAT

53004-0647

$1.38

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92022

WASHER SEAL PLATE

92022-101

$4.31

92027

COLLAR

92027-4015

$10.65

92055

RING-O,CRANKCASE SIDE

92055-1395

$4.87

92071

GROMMET,CONVERTER CASE

92071-1212

$10.00

92093

SEAL,BELT CONVERTER COVER

92093-0582

$16.48

92161

DAMPER

92161-0406

$2.97

92161A

DAMPER

92161-1484

$1.86

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-1277

$2.75

130

BOLT-FLANGED,6X30

130BA0630

$1.46

130A

BOLT-FLANGED,8X25

130BA0825

$2.95

130B

BOLT-FLANGED,8X45

130BA0845

$1.61

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
