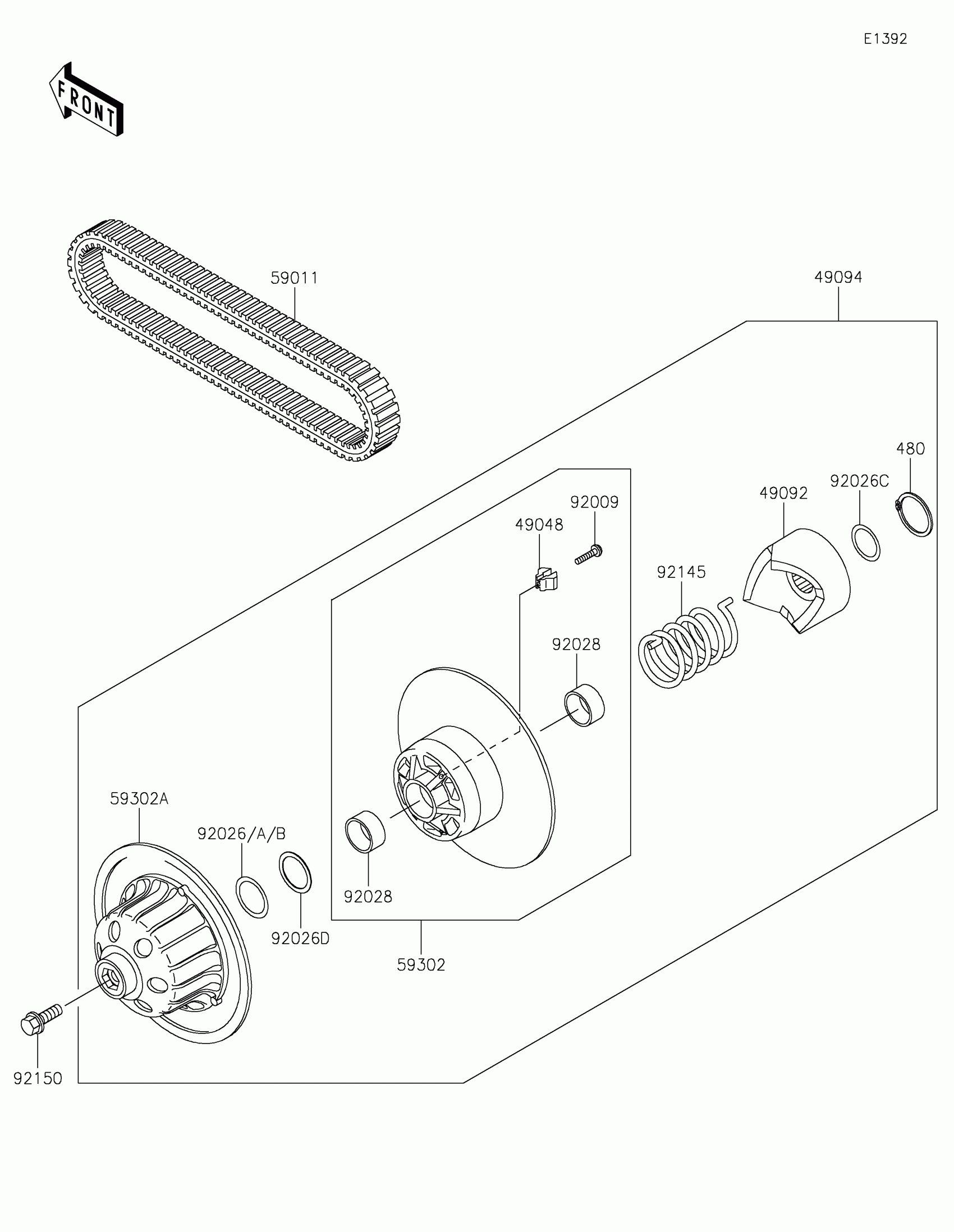

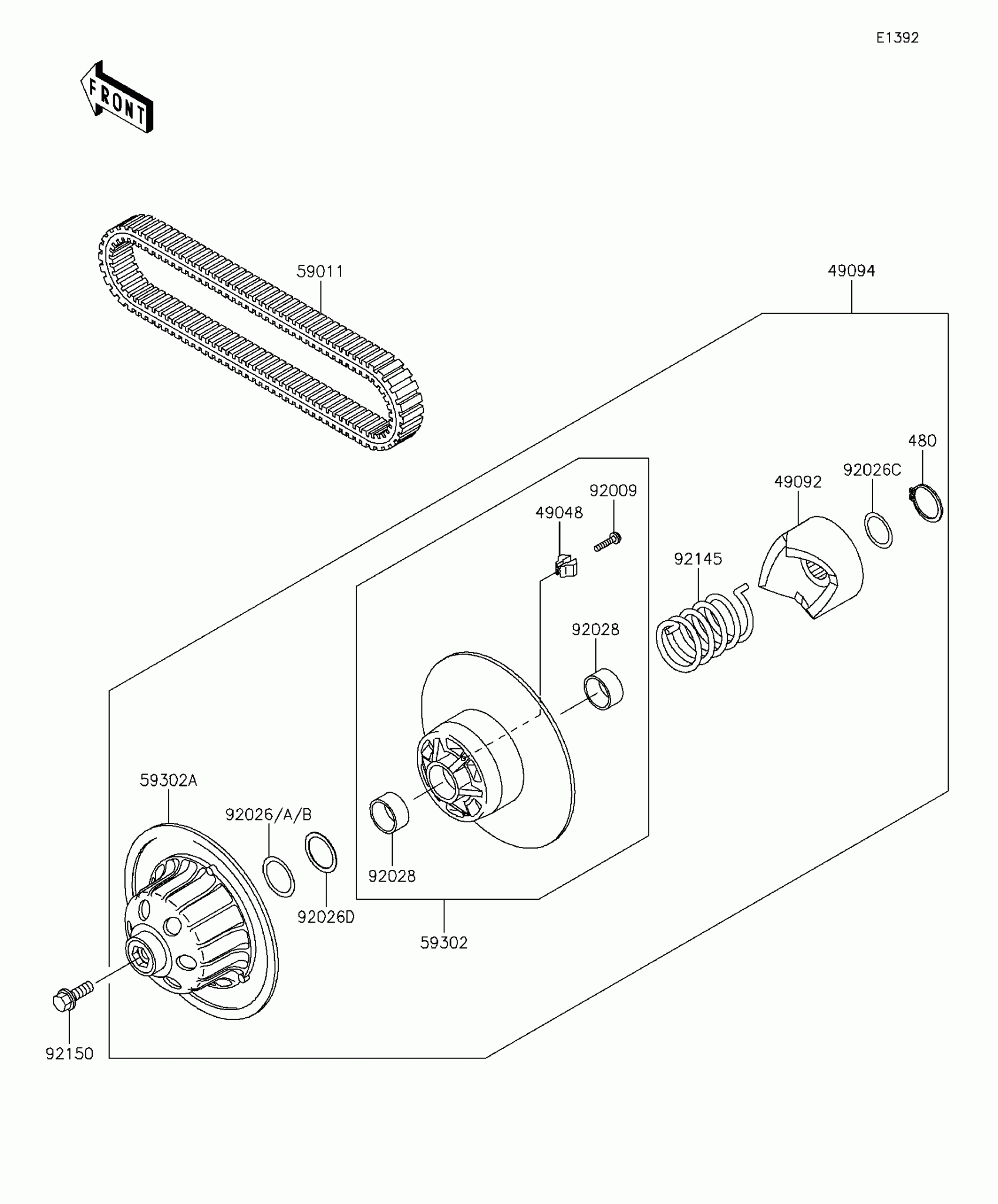

Kawasaki Mule 4010 Trans4x4 Driven Converter/Drive Belt Diagram

Description

Price

49048

SHOE

49048-1060

$6.22

49092

RAMP

49092-1068

$54.18

49094

CONVERTER-ASSY-DRIVEN

49094-0045

$666.17

59011

BELT,CONVERTER

59011-1077

$122.72

59302

SHEAVE-COMP,MOVABLE

59302-0031

$335.78

59302A

SHEAVE-COMP

59302-0032

$365.73

92009

SCREW,SHOE

92009-1849

$2.46

92026

SPACER,39X50X0.50

92026-1507

Unavailable

92026A

SPACER,39X50X0.60

92026-1508

Unavailable

92026B

SPACER,39X50X0.80

92026-1510

Unavailable

92026C

SPACER,34X44X0.80

92026-1521

$5.00

92026D

SPACER,39X49.5X1.0

92026-1603

$7.63

92028

BUSHING

92028-1864

$8.90

92145

SPRING

92145-1404

$13.39

92150

BOLT,12X35

92150-1009

$7.68

480

CIRCLIP

480J3400

$2.31
