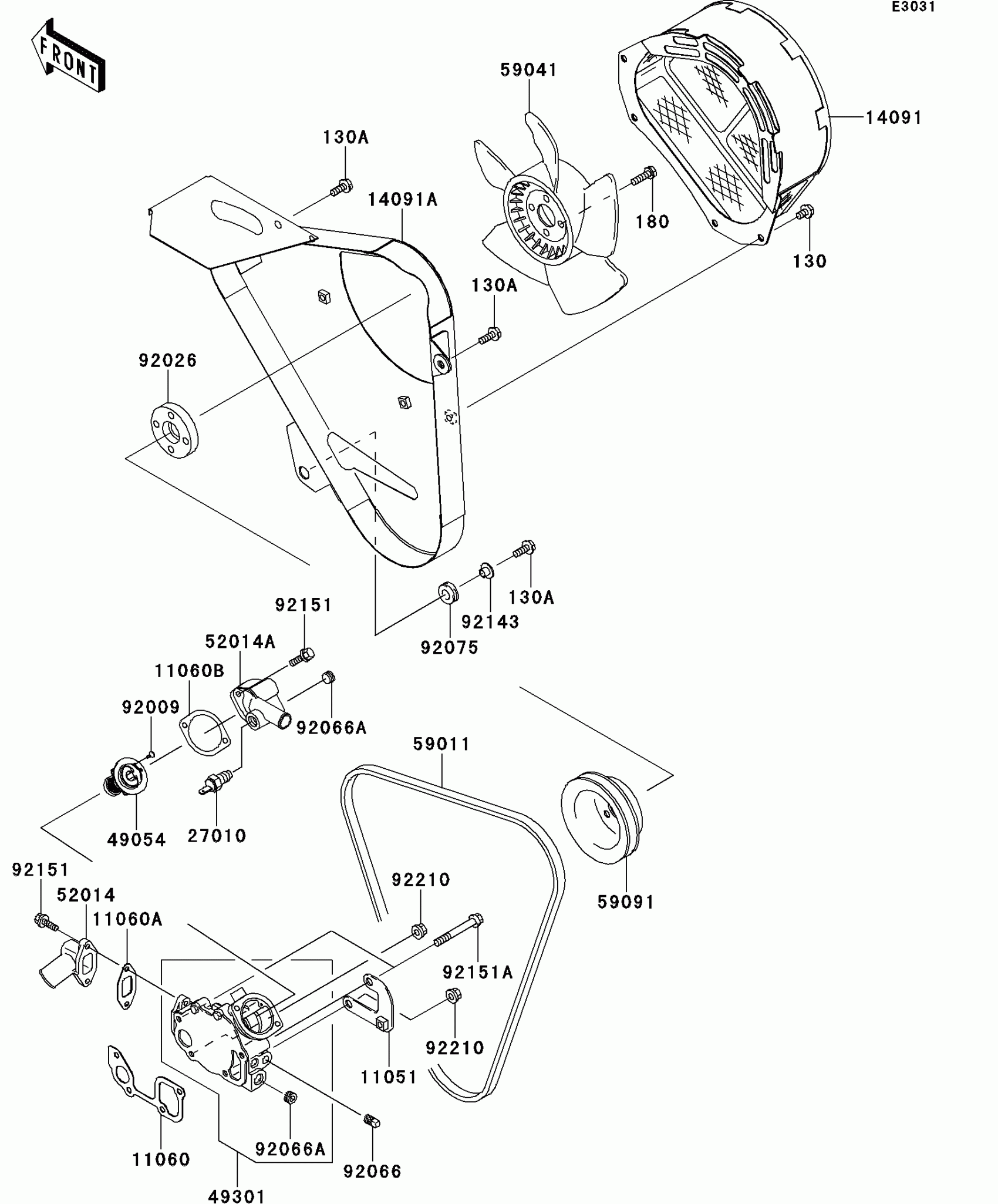

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Water Pump Diagram
#
Description
Price
11051
BRACKET,BELT COVER
11051-1567
$10.87
11060
GASKET,WATER PUMP
11060-1957
$8.18
11060A
GASKET,ELBOW,INLET
11060-1958
$4.28
11060B
GASKET,ELBOW,OUTLET
11060-1959
$5.27
14091
COVER,FAN
14091-0010
$234.34
14091A
COVER,BELT
14091-0126
$105.38
27010
SWITCH,THERMOSTAT
27010-1414
$85.37
49054
THERMOSTAT
49054-1068
$40.56
49301
PUMP-ASSY-WATER
49301-0001
$340.22
52014
ELBOW,INLET
52014-1095
$30.82
52014A
ELBOW,OUTLET
52014-1096
$45.85
59011
BELT
59011-1075
$32.12
59041
FAN
59041-1060
$45.85
59091
PULLEY,WATER PUMP
59091-1105
$29.15
92009
SCREW,TAPPING,2.6X8
92009-1915
$2.58
92026
SPACER
92026-1571
$83.68
92066
PLUG,WATER PUMP
92066-1531
$3.74
92066A
PLUG,ELBOW OUTLET
92066-1532
$3.43
92075
DAMPER
92075-161
$4.69
92143
COLLAR
92143-1057
$5.00
92151
BOLT,6X20
92151-1667
$2.58
92151A
BOLT,8X50
92151-1690
$2.58
92210
NUT,8MM
92210-1216
$2.58
130
BOLT-FLANGED,6X10
130BB0610
$2.49
130A
BOLT-FLANGED,6X16
130BB0616
$2.06
180
BOLT-UPSET-WS,6X22
180BB0622
$2.70
