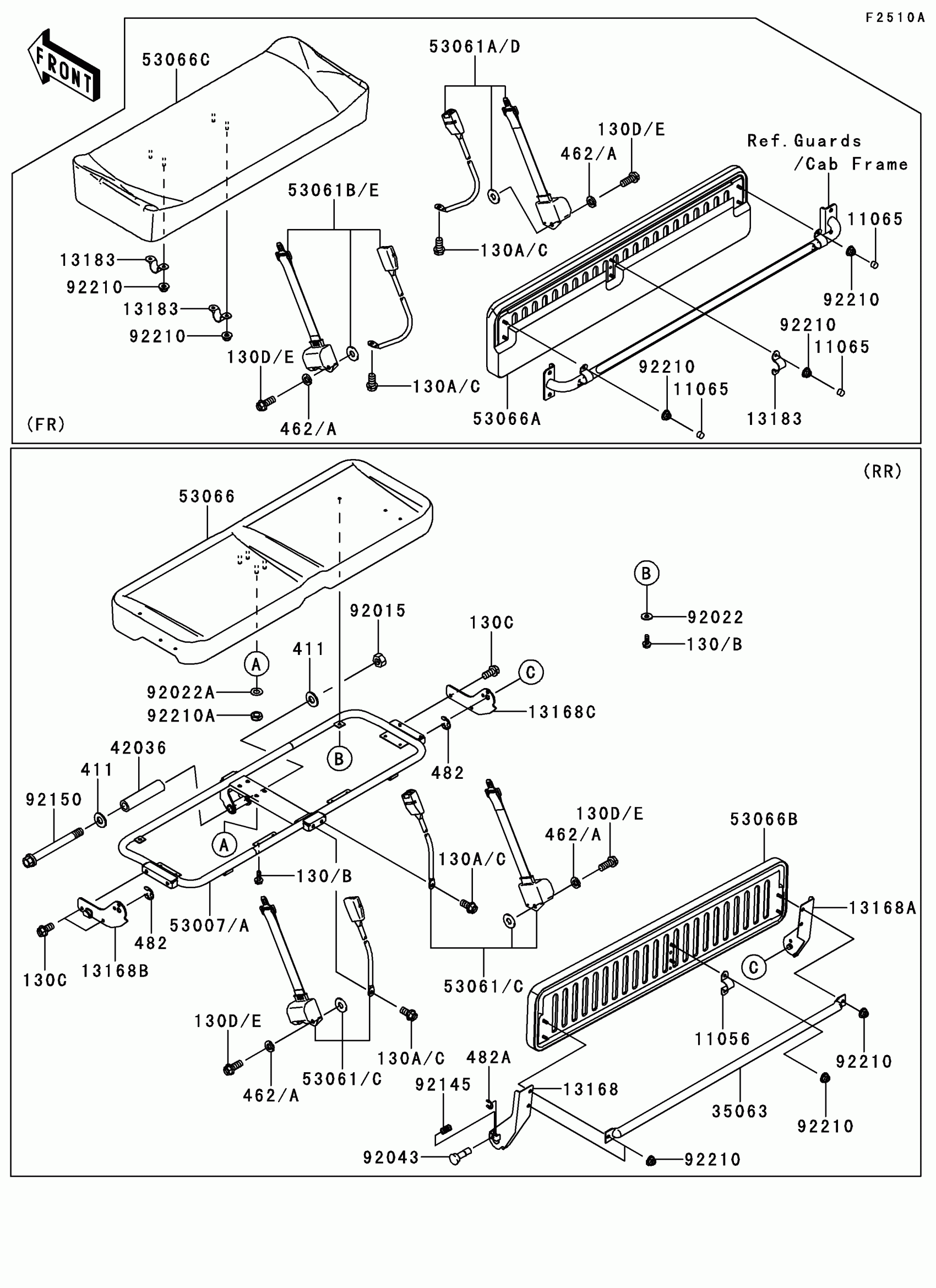

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Seat(GBF-GDF) Diagram

#

Description
Price

11056

BRACKET,SEAT BACK

11056-0034

$7.88

11065

CAP

11065-7504

$1.50

13168

LEVER,SEAT,TOP,LH

13168-7502

$58.46

13168A

LEVER,SEAT,TOP,RH

13168-7503

$58.46

13168B

LEVER,SEAT,LWR,LH

13168-7504

$47.79

13168C

LEVER,SEAT,LWR,RH

13168-7505

$47.79

13183

PLATE,SEAT

13183-1400

$7.58

35063

STAY,REAR BACK

35063-7510

$147.48

42036

SLEEVE,12.1X20X85

42036-7501

$10.13

53007

FRAME-SEAT

53007-0120

$133.21

53007A

FRAME-SEAT

53007-0327

$157.04

53061

BELT-SEAT,RR

53061-0314

$117.32

53061A

BELT-SEAT,FR,RH

53061-0315

$117.32

53061B

BELT-SEAT,FR,LH

53061-0316

$117.32

53061C

BELT-SEAT,RR

53061-7506

$127.15

53061D

BELT-SEAT,FR,RH

53061-7507

$127.15

53061E

BELT-SEAT,FR,LH

53061-7508

$127.15

53066

SEAT-ASSY,RR,LWR,BLACK

53066-0237-MA

$535.13

53066A

SEAT-ASSY,FR,BACK,BLACK

53066-0258-MA

$275.29

53066B

SEAT-ASSY,RR,BACK,BLACK

53066-0259-MA

$275.29

53066C

SEAT-ASSY,FR,LWR,BLACK

53066-0274-MA

$472.69

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92022

WASHER,7X18X1.2

92022-1545

$1.03

92022A

WASHER,10.5X20X1

92022-239

$3.92

92043

PIN

92043-7503

$4.17

92145

SPRING

92145-7507

$1.50

92150

BOLT,FLANGED,12X117

92150-1895

$12.74

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67

92210A

NUT,LOCK,10MM

92210-0278

$2.15

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,12X20

130BA1220

$3.74

130B

BOLT-FLANGED,6X16

130BB0616

$2.06

130C

BOLT-FLANGED,10X20

130BB1020

$5.96

130D

BOLT-FLANGED,10X25

130BB1025

$5.25

130E

BOLT-FLANGED,12X25

130BB1225

$5.05

411

WASHER-PLAIN

411AB1200

$3.92

462

WASHER-SPRING,10MM

462DB1000

$2.81

462A

WASHER-SPRING,12MM

462DB1200

$1.19

482

CIRCLIP-TYPE-E,12MM

482EA0200

$2.30

482A

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68
