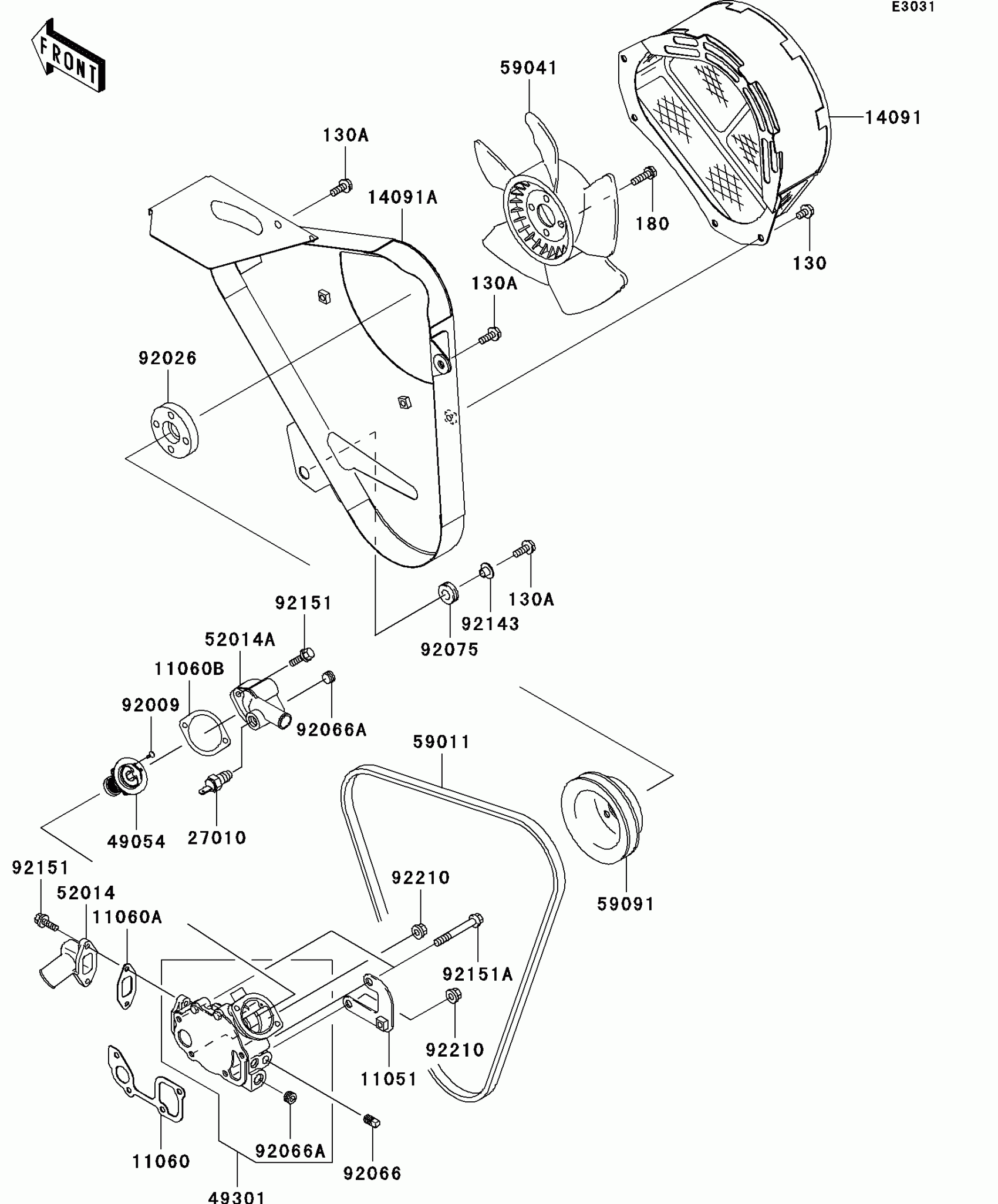

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Water Pump Diagram

Description

Price

11051

BRACKET,BELT COVER

11051-1567

$10.87

11060

GASKET,WATER PUMP

11060-1957

$8.18

11060A

GASKET,ELBOW,INLET

11060-1958

$4.28

11060B

GASKET,ELBOW,OUTLET

11060-1959

$5.27

14091

COVER,FAN

14091-0010

$234.34

14091A

COVER,BELT

14091-0126

$105.38

27010

SWITCH,THERMOSTAT

27010-1414

$85.37

49054

THERMOSTAT

49054-1068

$40.56

49301

PUMP-ASSY-WATER

49301-0001

$340.22

52014

ELBOW,INLET

52014-1095

$30.82

52014A

ELBOW,OUTLET

52014-1096

$45.85

59011

BELT

59011-1075

$32.12

59041

FAN

59041-1060

$45.85

59091

PULLEY,WATER PUMP

59091-1105

$29.15

92009

SCREW,TAPPING,2.6X8

92009-1915

$2.58

92026

SPACER

92026-1571

$83.68

92066

PLUG,WATER PUMP

92066-1531

$3.74

92066A

PLUG,ELBOW OUTLET

92066-1532

$3.43

92075

DAMPER

92075-161

$4.69

92143

COLLAR

92143-1057

$5.00

92151

BOLT,6X20

92151-1667

$2.58

92151A

BOLT,8X50

92151-1690

$2.58

92210

NUT,8MM

92210-1216

$2.58

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X16

130BB0616

$2.06

180

BOLT-UPSET-WS,6X22

180BB0622

$2.70
