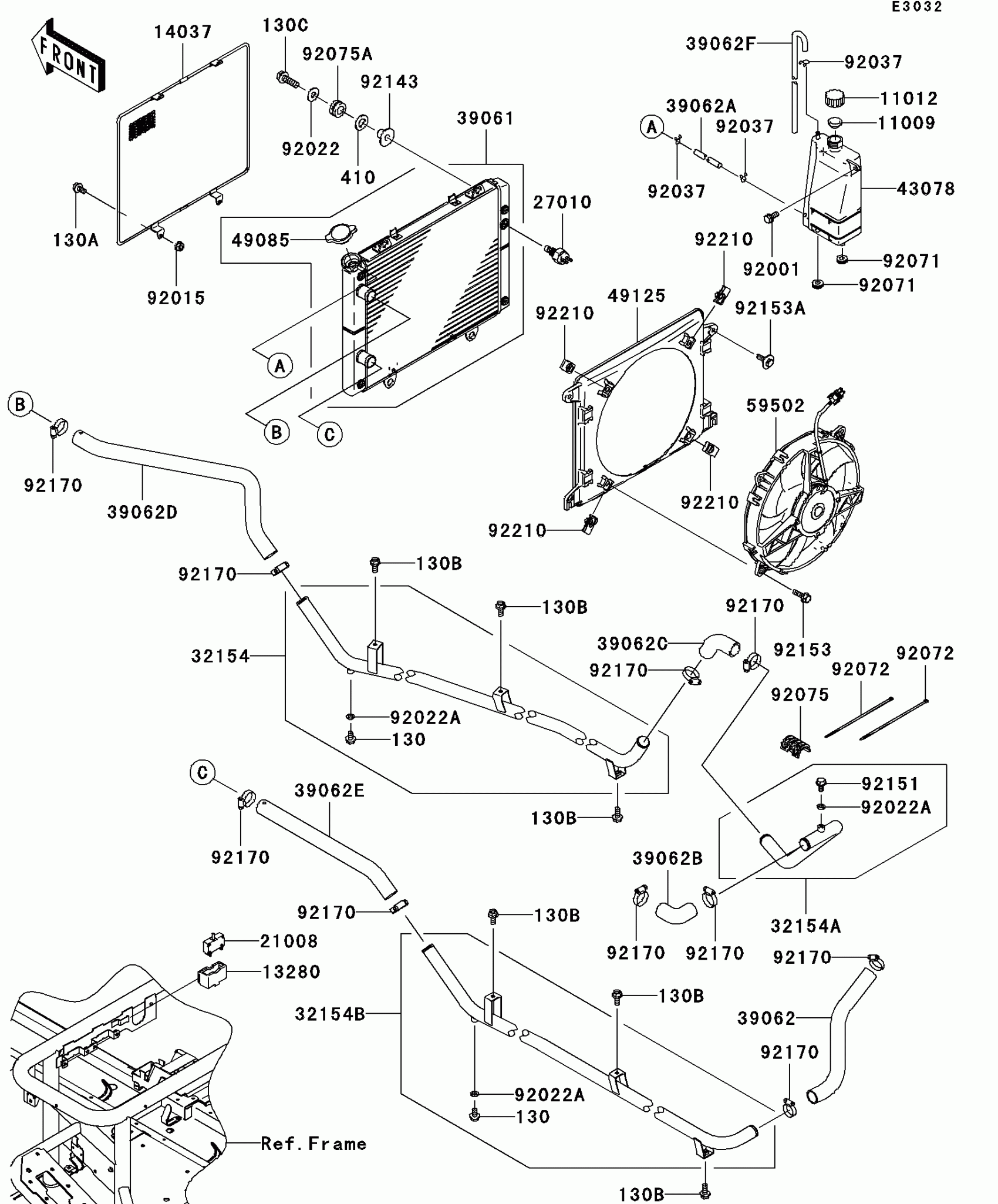

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

13280

HOLDER,BREAKER

13280-0082

$5.60

14037

SCREEN

14037-7506

$104.81

21008

BREAKER,FAN MOTOR

21008-0005

$29.21

27010

SWITCH,FAN

27010-1317

$130.42

32154

PIPE,RH FR

32154-7503

$116.41

32154A

PIPE,RH

32154-7608

$42.08

32154B

PIPE,LH

32154-7610

$126.37

39061

RADIATOR-ASSY

39061-0147

$461.11

39062

HOSE-COOLING

39062-0032

$23.88

39062A

HOSE-COOLING,5.5X10.5X650

39062-0266

$3.68

39062B

HOSE-COOLING

39062-7503

$8.40

39062C

HOSE-COOLING

39062-7504

$14.84

39062D

HOSE-COOLING

39062-7505

$30.51

39062E

HOSE-COOLING

39062-7506

$26.39

39062F

HOSE-COOLING,DRAIN

39062-7507

$24.47

43078

RESERVOIR

43078-0062

$29.75

49085

CAP-ASSY-PRESSURE

49085-7501

$19.25

49125

SHROUD

49125-0035

$93.14

59502

FAN-ASSY

59502-7501

$629.27

92001

BOLT,W/P,6X16

92001-1860

$4.31

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,TUBE

92037-147

$7.34

92071

GROMMET

92071-1115

$5.46

92072

BAND,L=188

92072-1239

$1.73

92075

DAMPER,FUEL TANK

92075-1806

$9.28

92075A

DAMPER

92075-294

$4.10

92143

COLLAR

92143-1946

$6.88

92151

BOLT,6X10

92151-1832

Unavailable

92153

BOLT

92153-7505

$2.67

92153A

BOLT

92153-7506

$2.81

92170

CLAMP,COOLING HOSE

92170-1284

$8.20

92210

NUT

92210-1331

$5.53

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X12

130BB0612

$2.34

130B

BOLT-FLANGED,6X14

130BB0614

$2.49

130C

BOLT-FLANGED,8X25

130BB0825

$4.45

410

WASHER-PLAIN-SMALL,12MM,BLACK

410AB1200

$4.92
