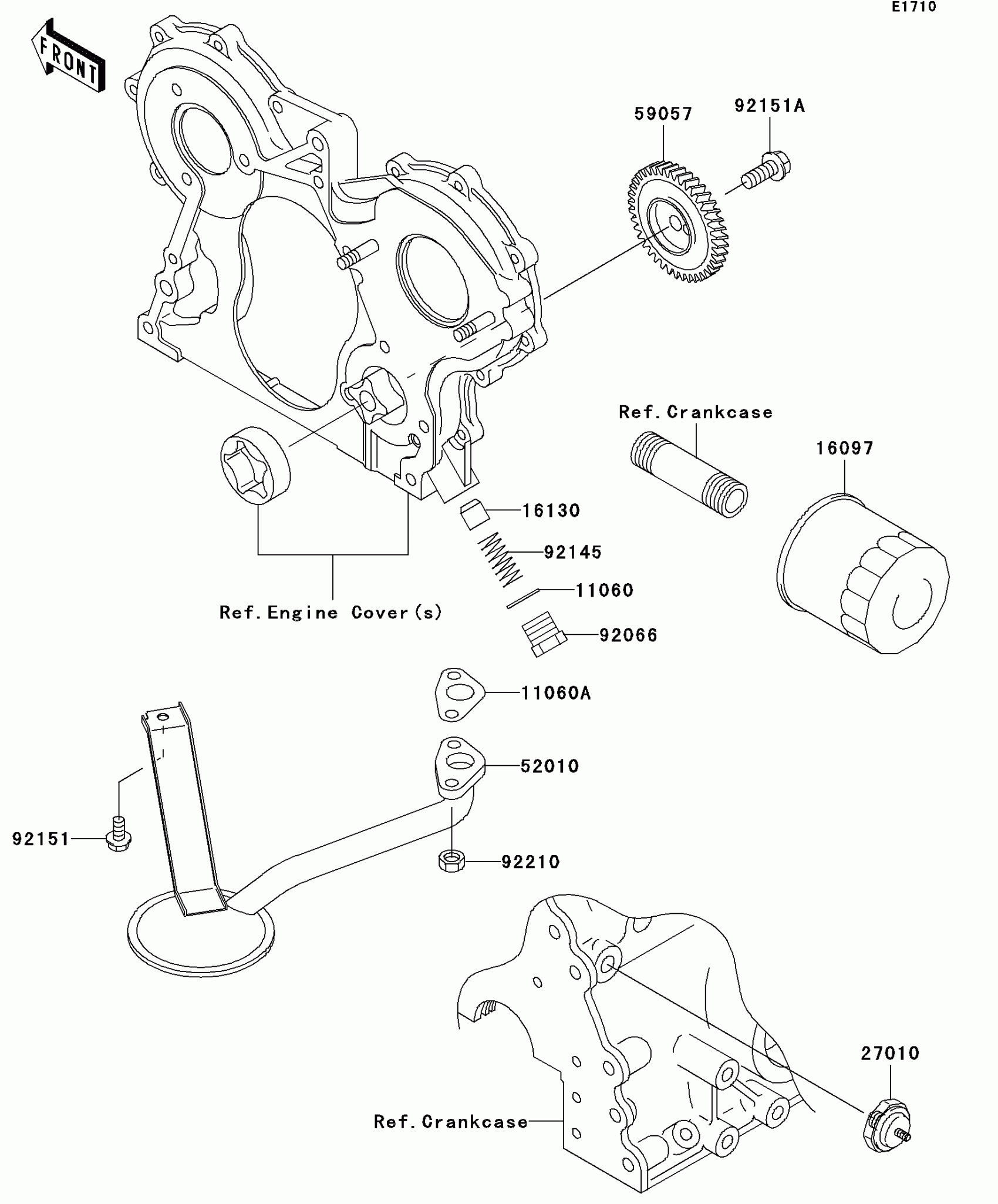

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Oil Pump/Oil Filter Diagram

Description

Price

11060

GASKET,PLUG

11060-1953

$2.77

11060A

GASKET,OIL FILTER

11060-1954

$4.34

16097

FILTER-ASSY-OIL

16097-1069

$14.25

16130

VALVE-ASSY-RELIEF

16130-1060

$22.63

27010

SWITCH,OIL PRESSURE

27010-0012

$33.09

52010

FILTER-OIL

52010-1054

$37.89

59057

GEAR-HELICAL,OIL PUMP

59057-1002

$116.82

92066

PLUG,RELIEF

92066-1529

$9.00

92145

SPRING,RELIEF VALVE

92145-1289

$11.28

92151

BOLT,6X12

92151-1657

$2.58

92151A

BOLT,8X20

92151-1697

$2.58

92210

NUT,6MM

92210-1210

$2.58
