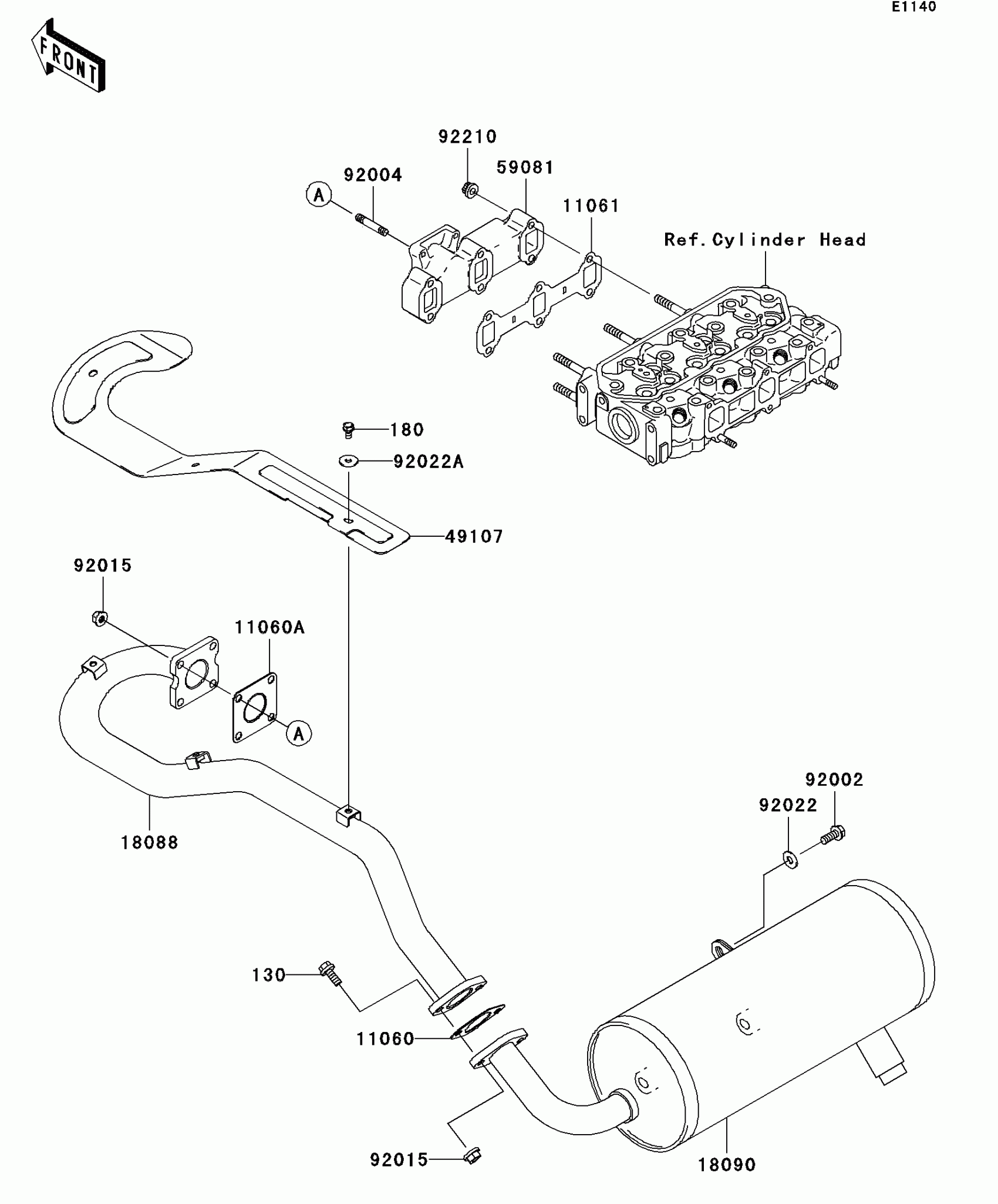

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Muffler(s) Diagram

Description

Price

11060

GASKET,MUFFLER

11060-1915

$19.33

11060A

GASKET,EXHAUST PIPE

11060-1916

$9.82

11061

GASKET,EXHAUST MANIFOLD

11061-1101

$15.89

18088

PIPE-EXHAUST

18088-1216

$104.93

18090

BODY-COMP-MUFFLER

18090-1739

Unavailable

49107

COVER-EXHAUST PIPE

49107-0004

$31.92

59081

MANIFOLD-EXHAUST

59081-1391

$132.47

92002

BOLT,8X20

92002-1250

$4.27

92004

STUD,8X20

92004-1272

$10.37

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92210

NUT,8MM

92210-1217

$1.82

130

BOLT-FLANGED,8X25

130BB0825

$3.39

180

BOLT-UPSET-WS,6X12

180BB0612

$3.85
