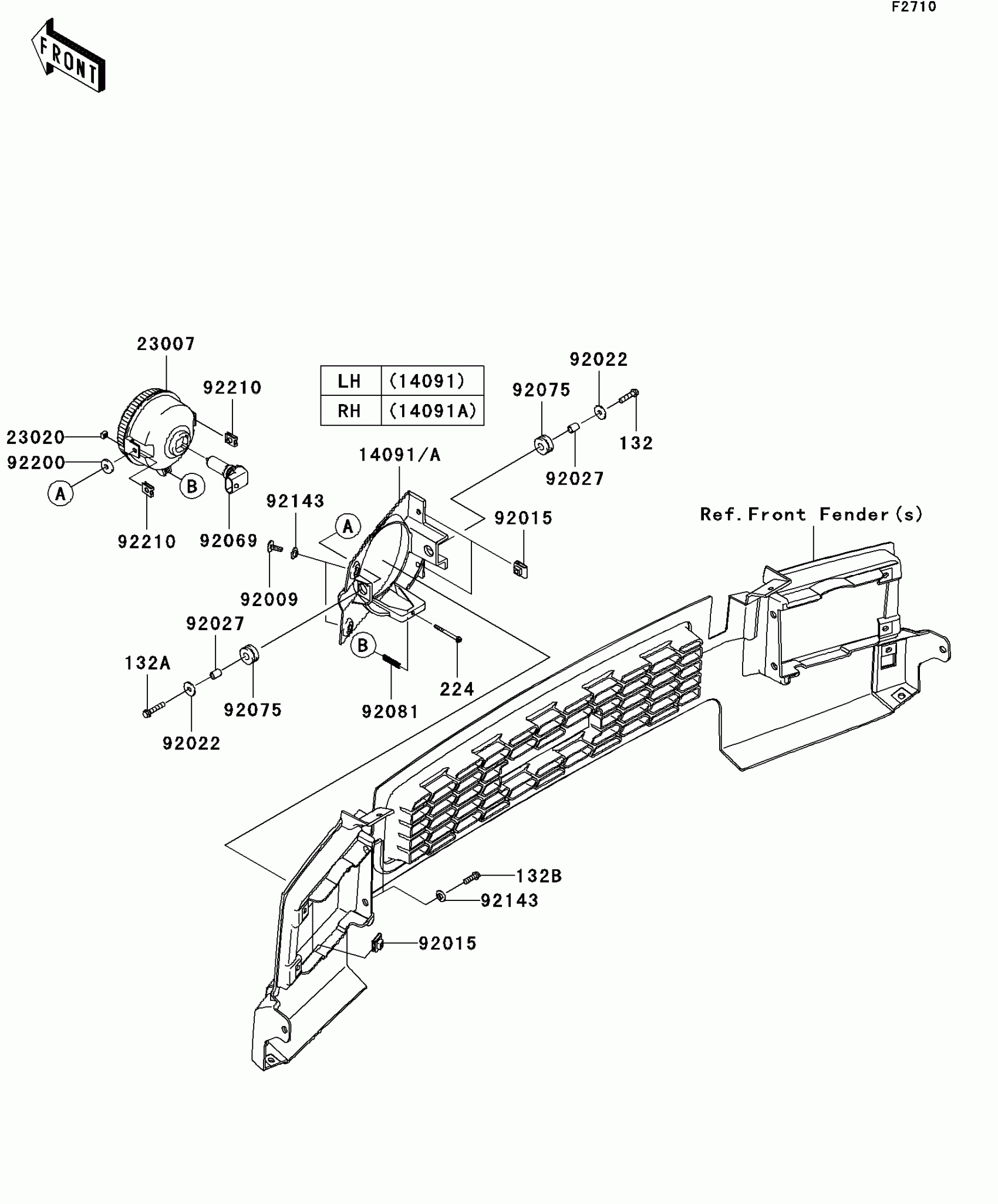

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Headlight(s) Diagram

Description

Price

14091

COVER,HEAD LAMP,LH

14091-0827

$14.15

14091A

COVER,HEAD LAMP,RH

14091-0828

$14.15

23007

LENS-COMP,HEAD LAMP

23007-0096

$43.99

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.19

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92027

COLLAR,6.8X10X12

92027-162

$5.00

92069

BULB,12V 35/35W

92069-0019

$11.94

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92143

COLLAR

92143-1087

$2.98

92200

WASHER,6.5X20X3.2

92200-0359

$1.81

92210

NUT

92210-1125

$3.63

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.17

132B

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.05

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.54
