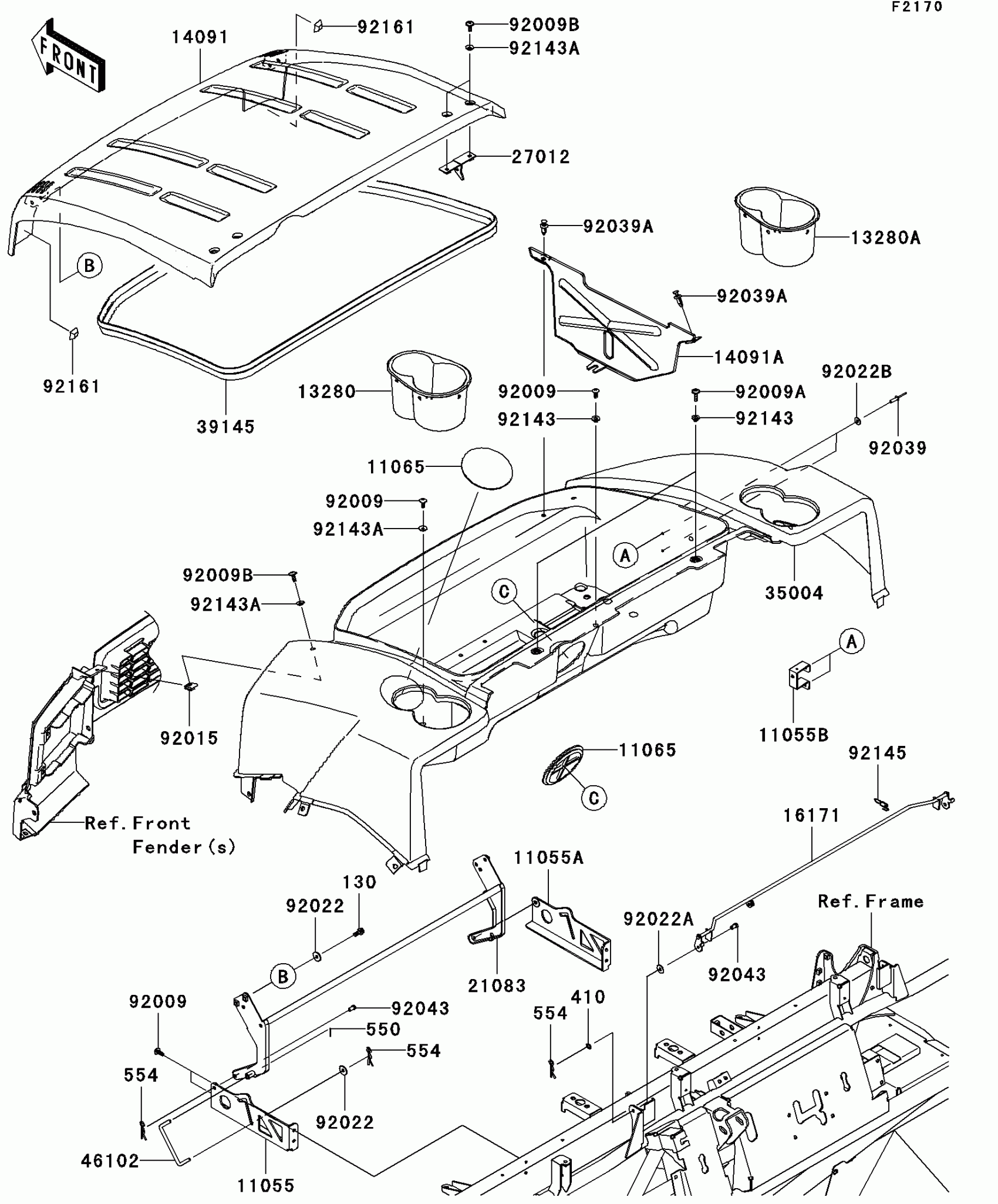

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Fenders Diagram

Description

Price

11055

BRACKET,HINGE,LH

11055-0037

$20.68

11055A

BRACKET,HINGE,RH

11055-0038

$20.68

11055B

BRACKET,RESERVOIR TANK

11055-0124

$4.24

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

13280

HOLDER,CUP HOLDER,LH,F.BLACK

13280-0265-6Z

$12.73

13280A

HOLDER,CUP HOLDER,RH,F.BLACK

13280-0266-6Z

$12.73

14091

COVER,FRONT FENDER,CAMOUFLAGE

14091-0977-16P

Unavailable

14091A

COVER,RESERVOIR TANK

14091-1715

$30.99

16171

LINK

16171-0013

$35.83

21083

ARM,HOOD

21083-0051

$76.93

27012

HOOK,HOOD

27012-0119

$4.28

35004

FENDER-FRONT,CNT,CAMOUFLAGE

35004-0109-16P

$563.47

39145

TRIM-SEAL,L=2350

39145-0032

$47.79

46102

ROD

46102-0103

$3.66

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X22,BLACK

92009-1256

$1.96

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92022A

WASHER,7X18X1.2

92022-1545

$0.84

92022B

WASHER,4.3X12.5X1

92022-1949

$3.17

92039

RIVET

92039-1150

$3.53

92039A

RIVET

92039-1229

$0.80

92043

PIN,6X9

92043-1626

$1.62

92143

COLLAR

92143-1057

$3.81

92143A

COLLAR

92143-1087

$2.98

92145

SPRING

92145-0215

$4.07

92161

DAMPER,FR HOOD

92161-0790

$1.62

130

BOLT-FLANGED,6X16

130BB0616

$1.49

410

WASHER-PLAIN-SMALL

410AA0600

$1.03

550

PIN-COTTER,1.6X15

550AA1615

$1.80

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79
