- Mule 4010 Trans4x4 Diesel Realtree APG HD
Drive Shaft-Front

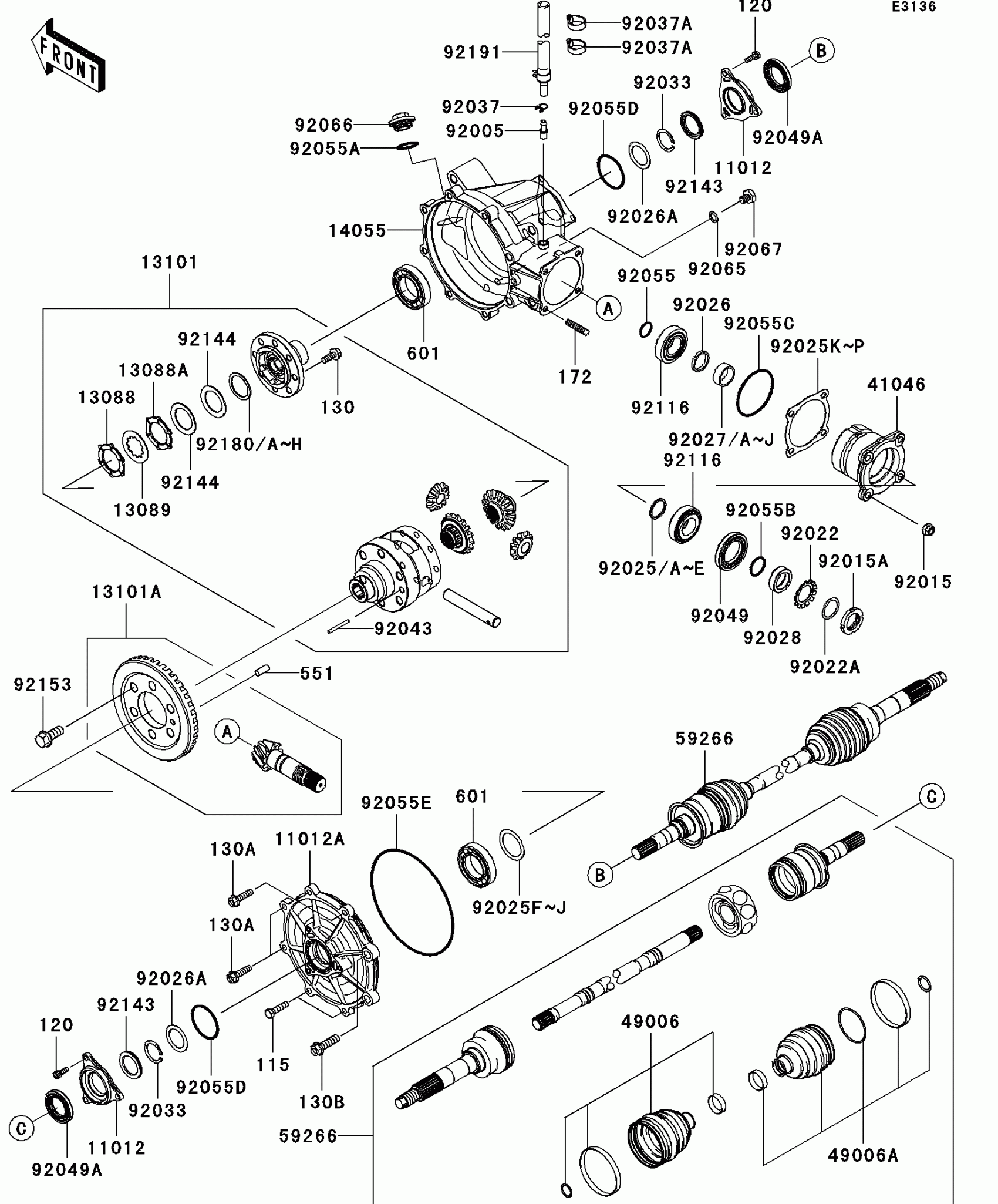

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Drive Shaft-Front Diagram
#
11012
CAP
11012-1648
$29.82
11012A
CAP,GEAR CASE
11012-1649
$112.28
13088
PLATE-FRICTION,T=2.8
13088-1075
$10.02
13088A
PLATE-FRICTION,T=2.4
13088-1078
$10.02
13089
PLATE-CLUTCH
13089-0022
$17.15
13101
GEAR-ASSY
13101-0077
$990.65
13101A
GEAR-ASSY,BEVEL
13101-5093
$831.44
14055
CASE-GEAR,FR
14055-1114
$203.24
41046
HOUSING-BEARING
41046-1089
$156.95
49006
BOOT,UJ INNER
49006-0086
$66.22
49006A
BOOT,DOJ OUTER
49006-0087
$52.52
59266
JOINT-BALL
59266-0034
$916.85
92005
FITTING,BREATHER
92005-1127
$17.17
92015
NUT,8MM
92015-1402
$4.69
92015A
NUT,25MM
92015-1768
$25.27
92022
WASHER,TOOTHED
92022-1990
$6.22
92022A
WASHER,25.3X32X0.5
92022-225
$5.52
92025
SHIM,25.2X29.8X1.70
92025-1072
Unavailable
92025A
SHIM,25.2X29.8X1.72
92025-1073
Unavailable
92025B
SHIM,25.2X29.8X1.74
92025-1074
Unavailable
92025C
SHIM,25.2X29.8X1.76
92025-1075
Unavailable
92025D
SHIM,25.2X29.8X1.78
92025-1076
Unavailable
92025E
SHIM,25.2X29.8X1.80
92025-1077
Unavailable
92025F
SHIM,35.3X46X1.00
92025-1849
Unavailable
92025G
SHIM,35.3X46X0.10
92025-1850
Unavailable
92025H
SHIM,35.3X46X0.15
92025-1851
Unavailable
92025I
SHIM,35.3X46X0.50
92025-1856
Unavailable
92025J
SHIM,35.3X46X0.80
92025-1857
Unavailable
92025K
SHIM,T=0.10
92025-1919
Unavailable
92025L
SHIM,T=0.15
92025-1920
Unavailable
92025M
SHIM,T=0.50
92025-1921
Unavailable
92025N
SHIM,T=0.80
92025-1922
Unavailable
92025O
SHIM,T=1.00
92025-1923
Unavailable
92025P
SHIM,T=1.20
92025-1924
Unavailable
92026
SPACER
92026-1337
$10.28
92026A
SPACER,29X40X1.0
92026-1338
$6.22
92027
COLLAR,25.2X29.8X10.2
92027-1401
Unavailable
92027A
COLLAR,25.2X29.8X10.3
92027-1402
Unavailable
92027B
COLLAR,25.2X29.8X10.4
92027-1403
Unavailable
92027C
COLLAR,25.2X29.8X10.5
92027-1404
Unavailable
92027D
COLLAR,25.2X29.8X10.6
92027-1405
Unavailable
92027E
COLLAR,25.2X29.8X10.7
92027-1406
Unavailable
92027F
COLLAR,25.2X29.8X10.8
92027-1407
Unavailable
92027G
COLLAR,25.2X29.8X10.9
92027-1408
Unavailable
92027H
COLLAR,25.2X29.8X11.0
92027-1409
Unavailable
92027I
COLLAR,25.2X29.8X11.1
92027-1410
Unavailable
92027J
COLLAR,25.2X29.8X11.2
92027-1411
Unavailable
92028
BUSHING
92028-1699
$18.72
92033
RING-SNAP,T=1.5
92033-1249
$4.96
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,HOSE
92037-1827
$7.45
92043
PIN,4X37.8
92043-0052
$2.61
92049
SEAL-OIL,TC35X55X8
92049-1298
$8.98
92049A
SEAL-OIL,TC30487
92049-1309
$8.98
92055
RING-O,19.5X1.5
92055-055
$4.31
92055A
RING-O,25.7X2.4
92055-1136
$5.00
92055B
RING-O,24.7MM
92055-1160
$4.69
92055C
RING-O,65.2X2.4
92055-1408
$6.57
92055D
RING-O,46X2.5
92055-1409
$4.69
92055E
RING-O,154.1X2.5
92055-1410
$8.86
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG
92066-1303
$12.96
92067
PLUG,DRAIN,10X12
92067-001
$4.41
92116
BEARING-ROLLER,4T30205
92116-1003
$36.32
92143
COLLAR
92143-1703
$14.43
92144
SPRING
92144-1671
$10.19
92153
BOLT,FLANGED,12X30
92153-1878
$5.80
92180
SHIM,32X40X2.0
92180-0275
Unavailable
92180A
SHIM,32X40X1.3
92180-0293
Unavailable
92180B
SHIM,32X40X1.5
92180-0294
Unavailable
92180C
SHIM,32X40X1.7
92180-0295
Unavailable
92180D
SHIM,32X40X1.9
92180-0296
Unavailable
92180E
SHIM,32X40X1.2
92180-1374
Unavailable
92180F
SHIM,32X40X1.4
92180-1375
Unavailable
92180G
SHIM,32X40X1.6
92180-1376
$5.54
92180H
SHIM,32X40X1.8
92180-1377
Unavailable
92191
TUBE
92191-1628
$37.56
115
BOLT-SMALL-UPSET,8X30
115CA0830
$4.31
120
BOLT-SOCKET,6X16
120CA0616
$2.49
130
BOLT-FLANGED,8X20
130BA0820
$4.14
130A
BOLT-FLANGED,8X30
130CA0830
$1.08
130B
BOLT-FLANGED,10X35
130CA1035
$6.75
172
BOLT-STUD,8X22
172BA0822
$2.18
551
PIN-DOWEL,8X20
551A0820
$0.98
601
BEARING-BALL,#6007C3
601B6007
$27.06
