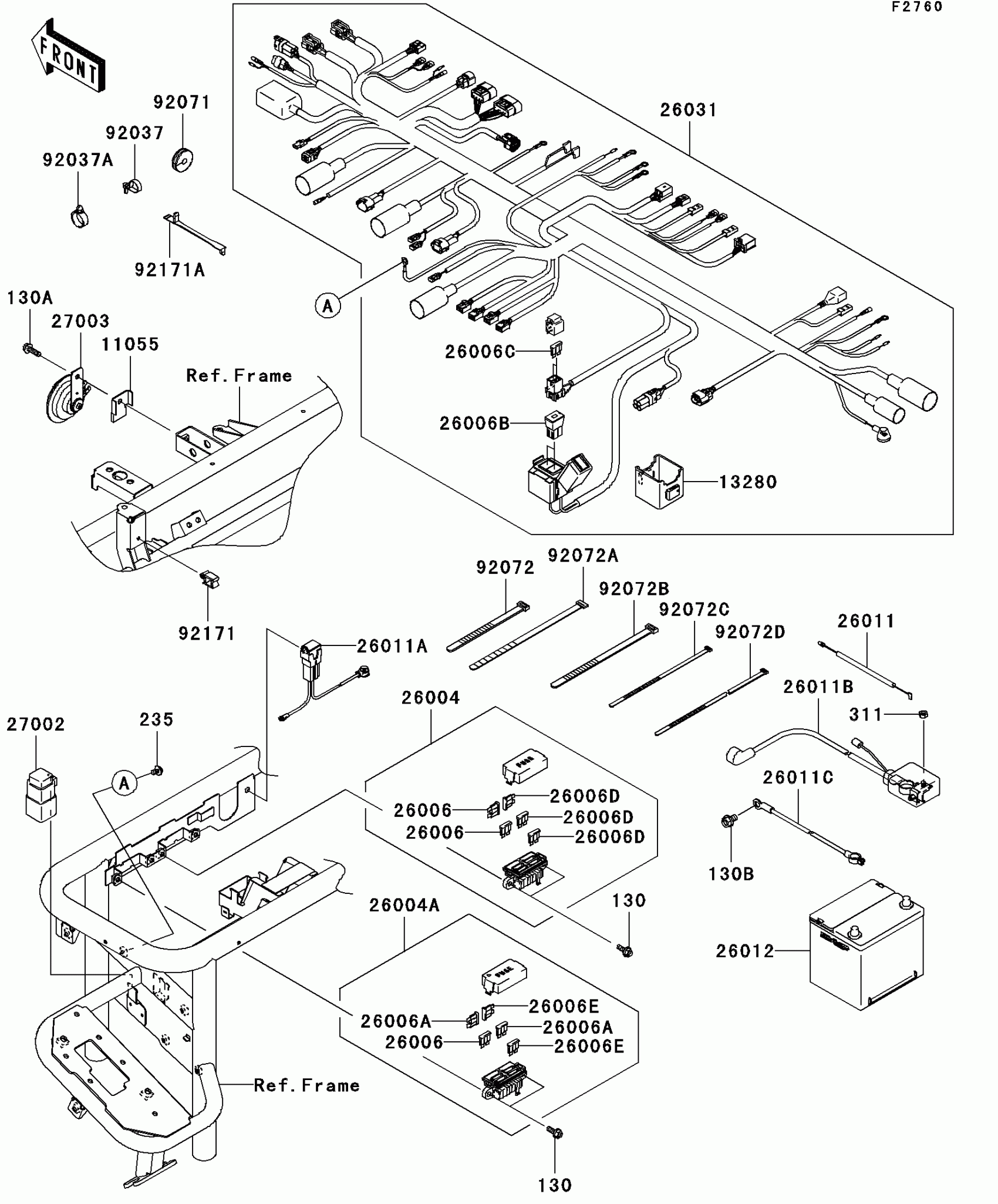

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Chassis Electrical Equipment Diagram

Description

Price

11055

BRACKET,HORN

11055-0167

$3.62

13280

HOLDER

13280-7508

$3.21

26004

FUSE-ASSY

26004-0018

$43.96

26004A

FUSE-ASSY

26004-0020

$46.05

26006

FUSE,BLADE,30A,GREEN

26006-0004

$6.02

26006A

FUSE,BLADE,10A,RED

26006-0005

$6.02

26006B

FUSE,SLOW BLOW,BT,40A,GREEN

26006-0014

$5.24

26006C

FUSE,7.5A

26006-0015

$5.24

26006D

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26006E

FUSE,BLADE,5A,TAN

26006-1082

$5.92

26011

WIRE-LEAD,OIL PRESSURE SWITCH

26011-0001

$7.99

26011A

WIRE-LEAD,ALTERNATOR

26011-0219

$69.38

26011B

WIRE-LEAD,BATTERY(+)

26011-0265

$157.92

26011C

WIRE-LEAD,BATTERY(-)

26011-7518

$137.48

26012

BATTERY,WET,(26R)

26012-7501

Unavailable

26031

HARNESS,MAIN

26031-0811

Unavailable

27002

RELAY-ASSY

27002-1068

$68.42

27003

HORN

27003-1330

$64.25

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,HOSE

92037-1827

$7.45

92071

GROMMET

92071-1136

$7.38

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=218

92072-032

$5.00

92072B

BAND,L=186

92072-056

$5.00

92072C

BAND,L=188

92072-1239

$1.73

92072D

BAND,L=368.3

92072-3872

$1.59

92171

CLAMP

92171-0290

$3.73

92171A

CLAMP

92171-1365

$4.20

130

BOLT-FLANGED,6X16

130BB0616

$2.06

130A

BOLT-FLANGED,6X20

130BB0620

$0.46

130B

BOLT-FLANGED,8X12

130BB0812

$0.68

235

SCREW-PAN-WP-CROS,6X10

235AA0610

$3.86

311

NUT-HEX

311AC0600

$0.88
