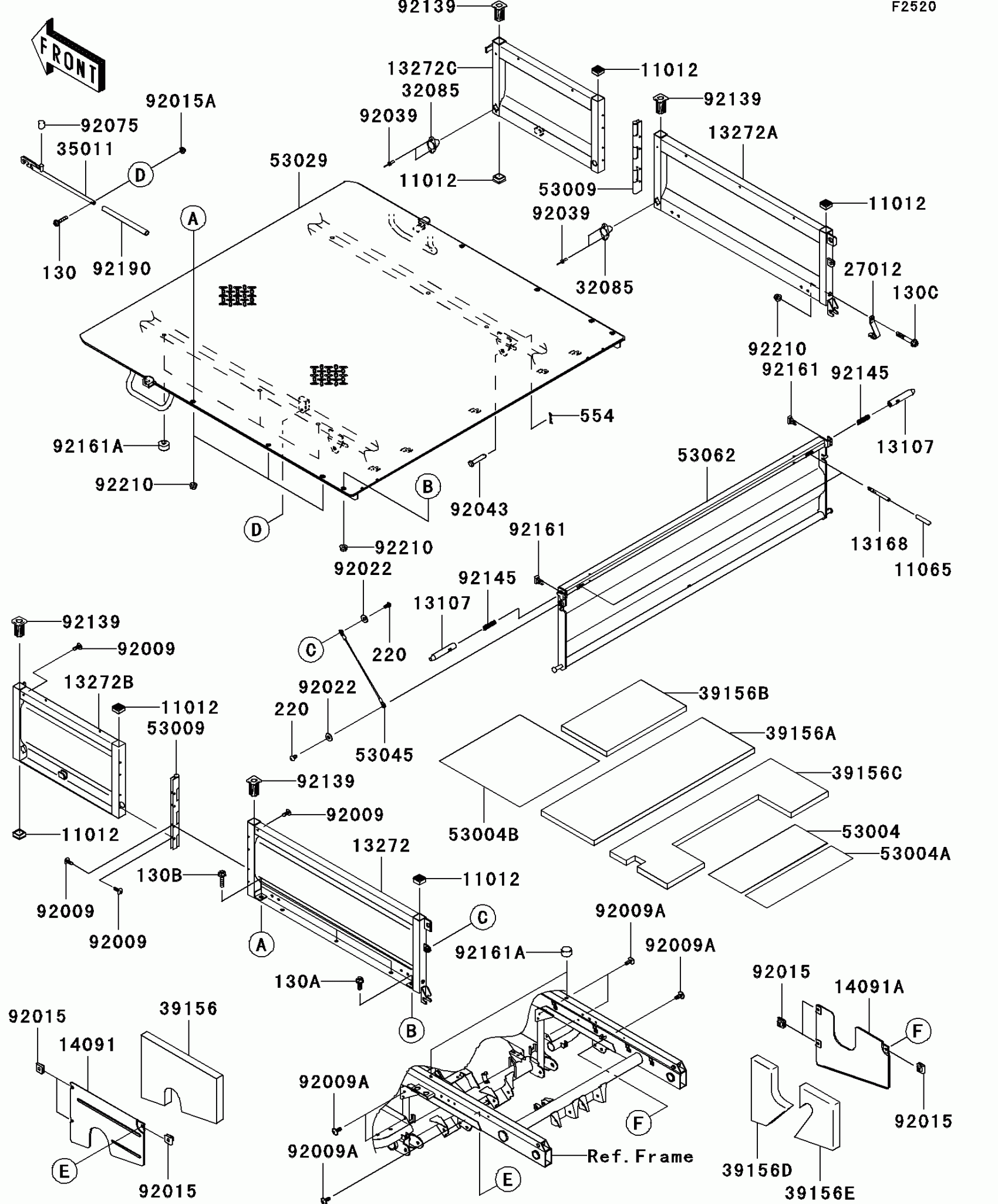

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$6.32

11065

CAP

11065-0126

$3.38

13107

SHAFT

13107-0082

$65.41

13168

LEVER

13168-0090

$12.04

13272

PLATE,SIDE,RR,LH,CAMOUFLAGE

13272-0296-16N

$277.11

13272A

PLATE,SIDE,RR,RH,CAMOUFLAGE

13272-0297-16N

$277.11

13272B

PLATE,SIDE,FR,LH,CAMOUFLAGE

13272-0503-16N

$180.63

13272C

PLATE,SIDE,FR,RH,CAMOUFLAGE

13272-0504-16N

$180.63

14091

COVER,ENCLOSURE,LH

14091-7546

$59.75

14091A

COVER,ENCLOSURE,RH

14091-7562

$59.75

27012

HOOK,TAIL GATE

27012-0022

$6.43

32085

STOPPER

32085-7501

$6.96

35011

STAY,CARRIER STOPPER

35011-1648

$28.90

39156

PAD,ENCLOSURE COVER,LH

39156-0007

$39.91

39156A

PAD,CARRIER,MIDDLE

39156-0465

$70.49

39156B

PAD,CARRIER,FR

39156-0466

$26.15

39156C

PAD,CARRIER,RR

39156-7505

$75.12

39156D

PAD,ENCLOSURE COVER,RH

39156-7507

$22.27

39156E

PAD,ENCLOSURE COVER,RH

39156-7508

$22.27

53004

MAT,CARRIER,MIDDLE

53004-0036

$24.70

53004A

MAT,CARRIER,RR

53004-0037

$17.03

53004B

MAT,CARRIER,FR

53004-0038

$49.54

53009

HINGE,CARRIER

53009-7501

$46.65

53029

CARRIER,BASE PLATE,BLACK

53029-0061-10

$939.13

53045

HOOK-ASSY,TAIL GATE

53045-0004

$29.74

53062

GATE-TAIL,CAMOUFLAGE

53062-7504-16N

$704.78

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,6MM

92015-1094

$8.58

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,7X18X1.2

92022-1545

$1.03

92039

RIVET

92039-1150

$3.92

92043

PIN,12X65

92043-1428

$10.09

92075

DAMPER

92075-1817

$6.22

92139

BUSHING,REAR SCREEN

92139-7501

$4.67

92145

SPRING,TENSIONER

92145-1215

$4.63

92161

DAMPER

92161-0258

$4.16

92161A

DAMPER

92161-7510

$4.36

92190

TUBE,13X16X200

92190-1401

$5.25

92210

NUT,FLANGED,8MM

92210-0555

$2.03

130

BOLT-FLANGED,6X30

130BA0630

$1.46

130A

BOLT-FLANGED,8X20

130BB0820

$0.84

130B

BOLT-FLANGED,8X30

130BB0830

$4.49

130C

BOLT-FLANGED,8X50

130BB0850

$4.73

220

SCREW-PAN-CROS,6X10

220AB0610

$1.81

554

PIN-SNAP,12MM

554DA1200

$3.96
