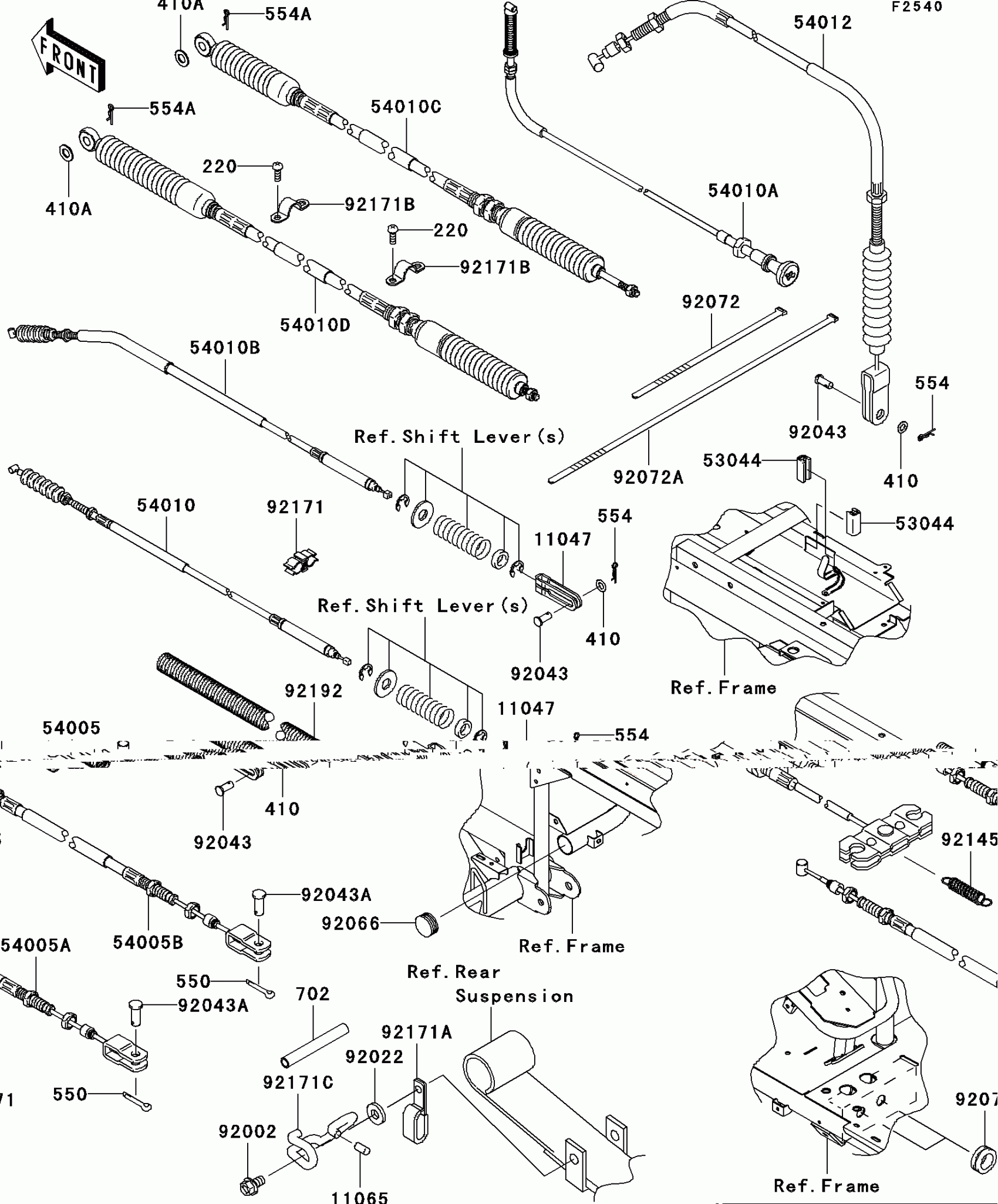

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Cables Diagram

Description

Price

11047

BRACKET,DIFF LOCK

11047-1043

Unavailable

11065

CAP

11065-7505

$2.19

53044

TRIM,L=22

53044-7503

$7.69

54005

CABLE-BRAKE,PARKING,FR

54005-1198

$7.83

54005A

CABLE-BRAKE,PARKING,RR,LH

54005-7503

$31.93

54005B

CABLE-BRAKE,PARKING,RR,RH

54005-7504

$38.14

54010

CABLE,2-4WD

54010-0045

$52.02

54010A

CABLE,HOOD

54010-0089

$34.35

54010B

CABLE,DIFF LOCK

54010-0111

$91.34

54010C

CABLE,HI-LOW

54010-7506

$121.57

54010D

CABLE,SHIFT CONTROL

54010-7508

$183.99

54012

CABLE-THROTTLE

54012-7506

$49.98

92002

BOLT,8X14

92002-1589

$4.46

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92043

PIN,6X11

92043-092

$4.17

92043A

92043-1039

$7.54

92066

PLUG

92066-7503

$1.30

92071

GROMMET

92071-1027

Unavailable

92072

BAND,L=188

92072-1239

$1.30

92072A

BAND,L=368.3

92072-3872

$1.20

92145

SPRING

92145-7506

$9.07

92171

CLAMP

92171-0129

$3.75

92171A

CLAMP,CABLE

92171-0176

$4.81

92171B

CLAMP

92171-1203

$1.82

92171C

CLAMP,BRAKE CABLE

92171-1210

Unavailable

92192

TUBE,PROTECTOR,13.2X17.5X350

92192-3715

$2.22

220

SCREW-PAN-CROS,5X14

220AA0514

$3.38

410

WASHER-PLAIN-SMALL

410AA0600

$1.03

410A

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

550

PIN-COTTER,2.0X22

550AA2022

$1.80

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79

554A

PIN-SNAP

554DA0800

$1.05

702

TUBE-RUBBER,5X8X55

702A0555

$9.24
