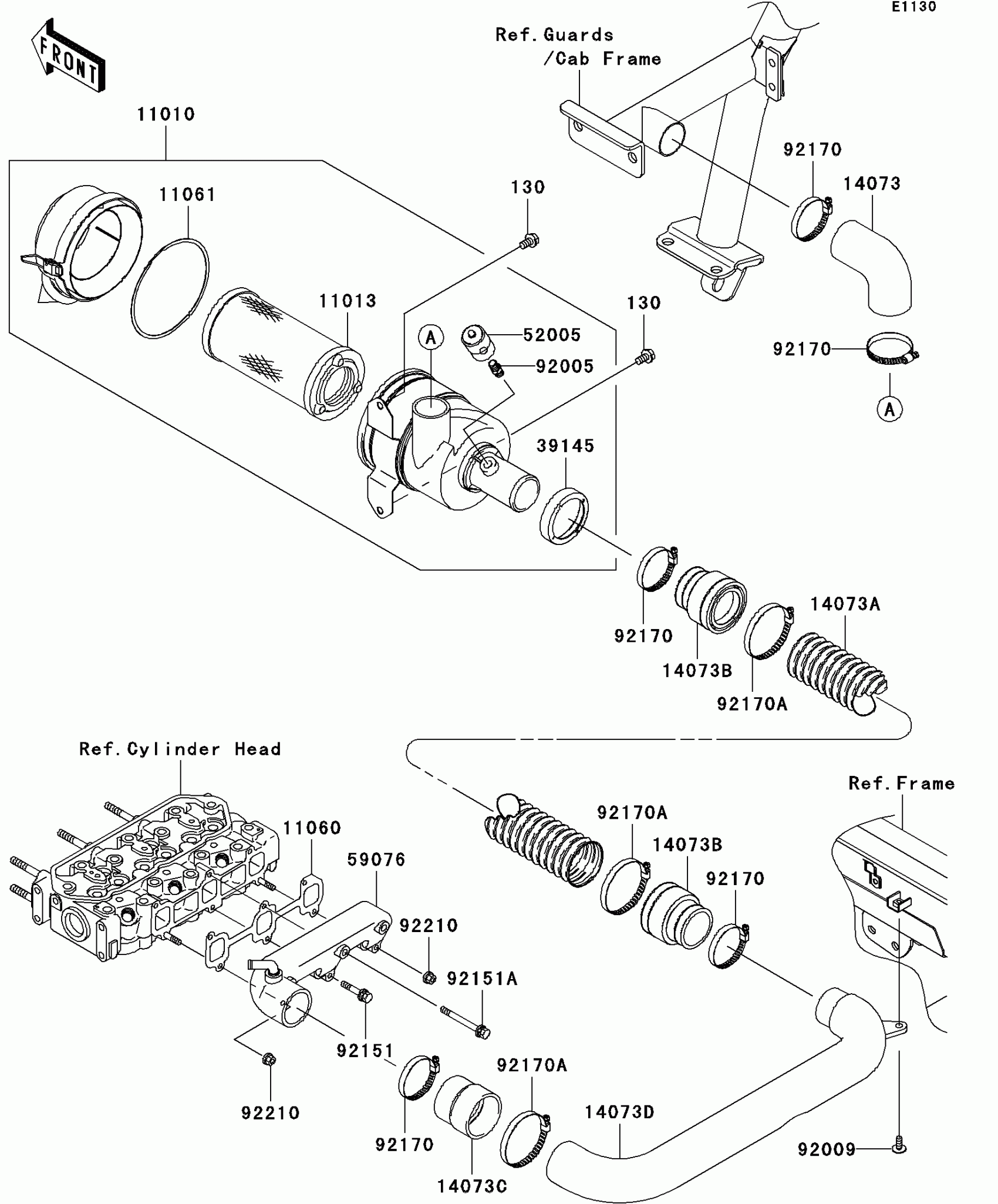

Kawasaki Mule 4010 Trans4x4 Diesel Realtree APG HD Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0189

$144.19

11013

ELEMENT-AIR FILTER

11013-1290

$25.44

11060

GASKET,INTAKE MANIFOLD

11060-1960

$8.68

11061

GASKET,AIR FILTER

11061-1078

$13.06

14073

DUCT,RR BAR-A/C

14073-0235

$8.37

14073A

DUCT,A/C-BLOW DUCT

14073-0240

$42.84

14073B

DUCT,ADAPTER

14073-7505

$3.47

14073C

DUCT,BLOW DUCT-E/G

14073-7508

$7.53

14073D

DUCT,BLOW

14073-7510

$52.01

39145

TRIM-SEAL

39145-1133

$5.86

52005

GAUGE

52005-0017

$47.88

59076

MANIFOLD-INTAKE

59076-1112

$130.07

92005

FITTING,AIR FILTER

92005-1386

$1.51

92009

SCREW,6X16

92009-1621

Unavailable

92151

BOLT,6X20

92151-1667

$1.82

92151A

BOLT,6X60

92151-1695

$2.12

92170

CLAMP

92170-1674

$8.94

92170A

CLAMP

92170-1764

$8.62

92210

NUT,6MM

92210-1210

$2.12

130

BOLT-FLANGED,8X14

130BB0814

$2.63
