Description

Price

11051

BRACKET,LWR

11051-1568

$35.82

11051A

BRACKET,UPP

11051-1569

$32.47

11054

BRACKET

11054-7512

$21.36

11065

CAP,GLOW

11065-1150

$2.55

13159

CONNECTOR

13159-1066

$24.57

13227

HOUSING,ALTERNATOR

13227-1139

$592.76

13280

HOLDER,RECTIFIER

13280-1173

$436.61

13280A

HOLDER,ALTERNATOR BRUSH

13280-1174

$82.91

13280B

HOLDER,BEARING

13280-1175

$7.30

14014

PLATE-POSITION

14014-1149

$14.43

14091

COVER,REAR END

14091-1207

$95.13

16073

INSULATOR

16073-1122

$23.33

16146

COVER-ASSY,RECTIFIER

16146-1214

$156.55

21001

GENERATOR

21001-1176

$558.94

21007

ROTOR,ALTERNATOR

21007-1368

$535.91

21039

BRUSH

21039-1068

$15.88

21066

REGULATOR-VOLTAGE

21066-1122

$296.48

27002

RELAY-ASSY

27002-1086

$36.91

27034

RELAY,HEATING TIMER

27034-0003

$122.89

27034A

RELAY,GLOW

27034-1066

$112.28

49036

PLUG-GLOW

49036-0001

$102.96

59091

PULLEY,ALTERNATOR

59091-1106

$56.69

92004

STUD,ALTERNATOR HOUSING

92004-1273

$20.83

92009

SCREW

92009-1921

$2.58

92009A

SCREW

92009-1922

$2.58

92009B

SCREW

92009-1923

$2.58

92009C

SCREW,POSITION PLATE

92009-1924

$2.87

92022

WASHER,7X18X1.2

92022-1545

$1.03

92045

BEARING-BALL,373

92045-1398

$31.98

92045A

BEARING-BALL,6002DG6

92045-1399

$38.58

92145

SPRING,ALTERNATOR BRUSH

92145-1312

$4.96

92151

BOLT,10X40

92151-1691

$2.79

92151A

BOLT,8X25

92151-1692

$2.58

92151B

BOLT,8X20

92151-1693

$2.58

92151C

BOLT,8X45

92151-1694

$2.58

92151D

BOLT

92151-1715

$2.79

92151E

BOLT

92151-1716

$4.38

92152

COLLAR

92152-1230

$13.05

92210

NUT,6MM

92210-1210

$2.58

92210A

NUT,GLOW PLUG,4MM

92210-1218

$2.58

92210B

NUT,PULLEY

92210-1232

$8.33

92210C

NUT

92210-1233

$2.79

92210D

NUT

92210-1234

$3.86

132

BOLT-FLANGED-SMALL,5X12

132BB0512

$3.67

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

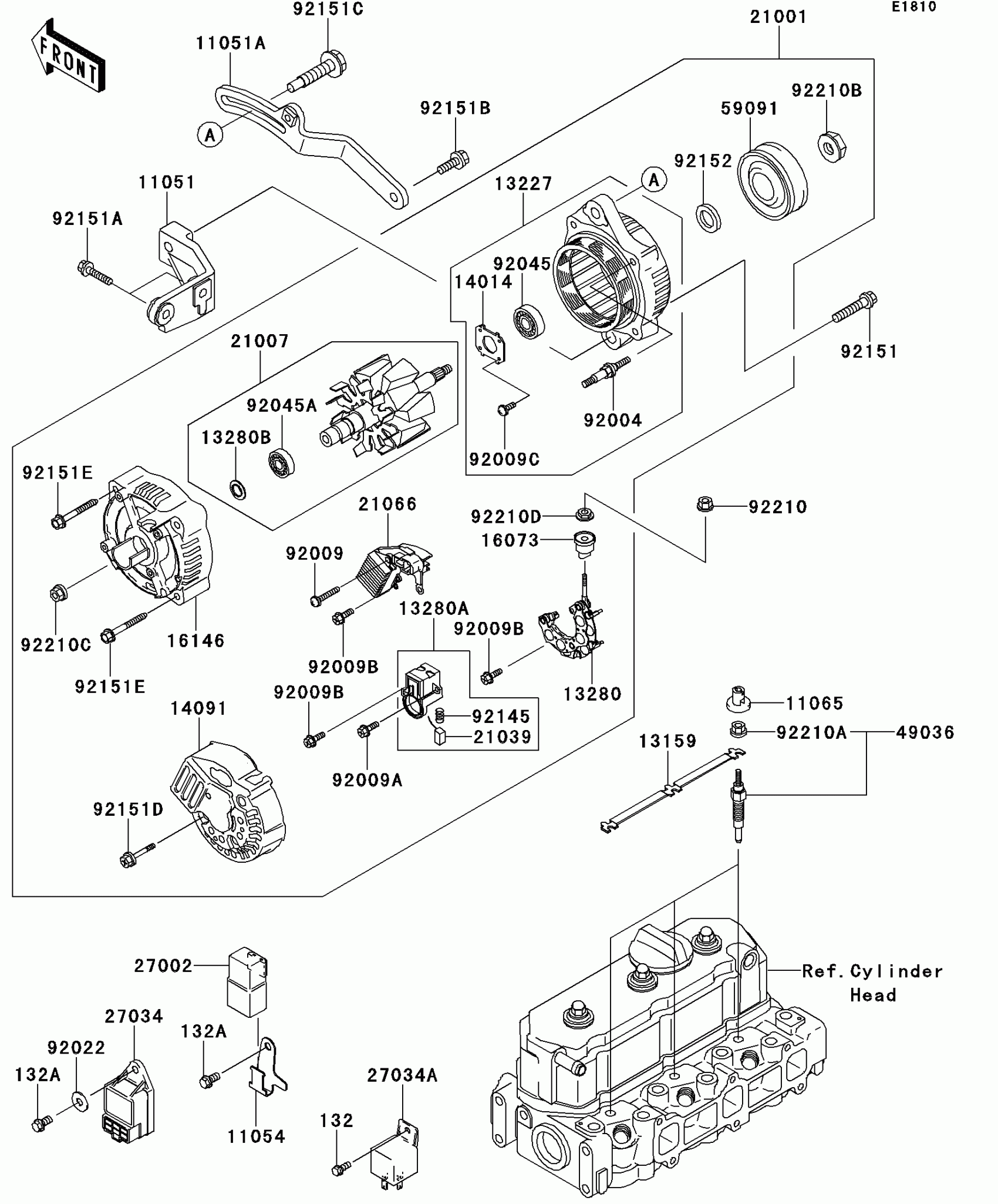

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Generator Diagram

BRACKET,LWR

BRACKET,UPP

BRACKET

CAP,GLOW

CONNECTOR

HOUSING,ALTERNATOR

HOLDER,RECTIFIER

HOLDER,ALTERNATOR BRUSH

HOLDER,BEARING

PLATE-POSITION

COVER,REAR END

INSULATOR

COVER-ASSY,RECTIFIER

GENERATOR

ROTOR,ALTERNATOR

BRUSH

REGULATOR-VOLTAGE

RELAY-ASSY

RELAY,HEATING TIMER

RELAY,GLOW

PLUG-GLOW

PULLEY,ALTERNATOR

STUD,ALTERNATOR HOUSING

SCREW

SCREW

SCREW

SCREW,POSITION PLATE

WASHER,7X18X1.2

BEARING-BALL,373

BEARING-BALL,6002DG6

SPRING,ALTERNATOR BRUSH

BOLT,10X40

BOLT,8X25

BOLT,8X20

BOLT,8X45

BOLT

BOLT

COLLAR

NUT,6MM

NUT,GLOW PLUG,4MM

NUT,PULLEY

NUT

NUT

BOLT-FLANGED-SMALL,5X12

BOLT-FLANGED-SMALL,6X12
