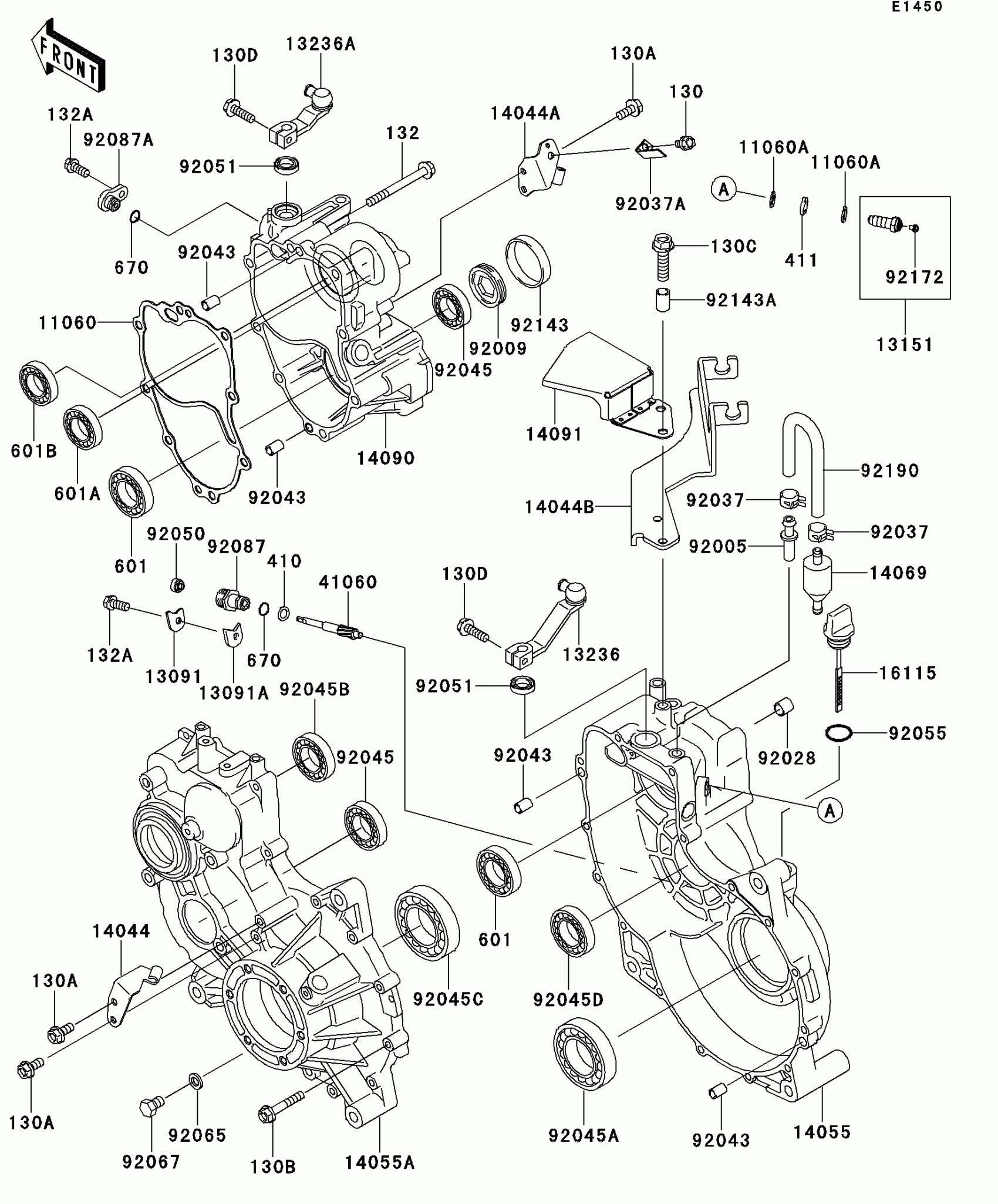

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Gear Box Diagram

#

Description
Price

11060

GASKET,GEAR CASE COVER

11060-1310

$17.10

11060A

GASKET

11060-1966

$2.24

13091

HOLDER,TACHOMETER2.3T

13091-1008

$4.26

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

$4.26

13151

SWITCH-COMP

13151-1093

$51.28

13236

LEVER-COMP,CHANGE

13236-0030

$58.13

13236A

LEVER-COMP

13236-1363

$50.49

14044

HOLDER-CABLE

14044-0003

$13.66

14044A

HOLDER-CABLE

14044-0004

$15.04

14044B

HOLDER-CABLE

14044-1097

$109.56

14055

CASE-GEAR,RH

14055-1110

$254.40

14055A

CASE-GEAR,LH

14055-1144

$267.16

14069

BREATHER

14069-1051

$10.19

14090

COVER,GEAR CASE,HI/LOW

14090-1238

$237.38

14091

COVER,GEAR CASE

14091-0472

$34.28

16115

CAP-OIL FILLER

16115-1060

$12.18

41060

GEAR-METER SCREW

41060-1148

$59.59

92005

FITTING,BREATHER

92005-1127

$17.17

92009

SCREW

92009-1290

$27.29

92028

BUSHING,23X30X13

92028-132

$38.06

92037

CLAMP,TUBE

92037-1505

$4.76

92037A

CLAMP

92037-1680

$2.61

92043

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,TMB304CCM

92045-1142

$40.43

92045A

BEARING-BALL

92045-1162

$52.37

92045B

BEARING-BALL,62/28

92045-1207

$19.03

92045C

BEARING-BALL,6210CM

92045-1213

$55.61

92045D

BEARING-BALL,TMB205JR2

92045-1285

$27.65

92050

SEAL-OIL

92050-075

$11.39

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,20X3

92055-2185

$1.03

92065

GASKET,10.5X16X1

92065-058

$3.96

92067

PLUG,DRAIN,10X12

92067-001

$4.41

92087

GUIDE,TACHOMETER GEAR

92087-010

$24.19

92087A

BUSHING-METER GEAR

92087-1058

$8.03

92143

COLLAR,66X70X11

92143-1120

$18.89

92143A

COLLAR,9.5X12.7X14

92143-1752

$2.79

92172

SCREW,4X6

92172-0717

$1.94

92190

TUBE

92190-3807

$6.02

130

BOLT-FLANGED,6X10

130AA0610

$0.49

130A

BOLT-FLANGED,6X14

130AA0614

$0.49

130B

BOLT-FLANGED,6X35

130BA0635

$0.94

130C

BOLT-FLANGED,8X30

130BA0830

$1.98

130D

BOLT-FLANGED,6X20

130CA0620

$1.70

132

BOLT-FLANGED-SMALL,8X60

132BA0860

$5.05

132A

BOLT-FLANGED-SMALL,6X14

132BB0614

$2.49

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

411

WASHER-PLAIN,10MM

411AA1000

$0.96

601

BEARING-BALL,#6007C3

601B6007

$27.06

601A

BEARING-BALL,#6303C3

601B6303

$8.29

601B

BEARING-BALL

601B6303U

$26.36

670

O RING,10MM

670D1510

$4.69
