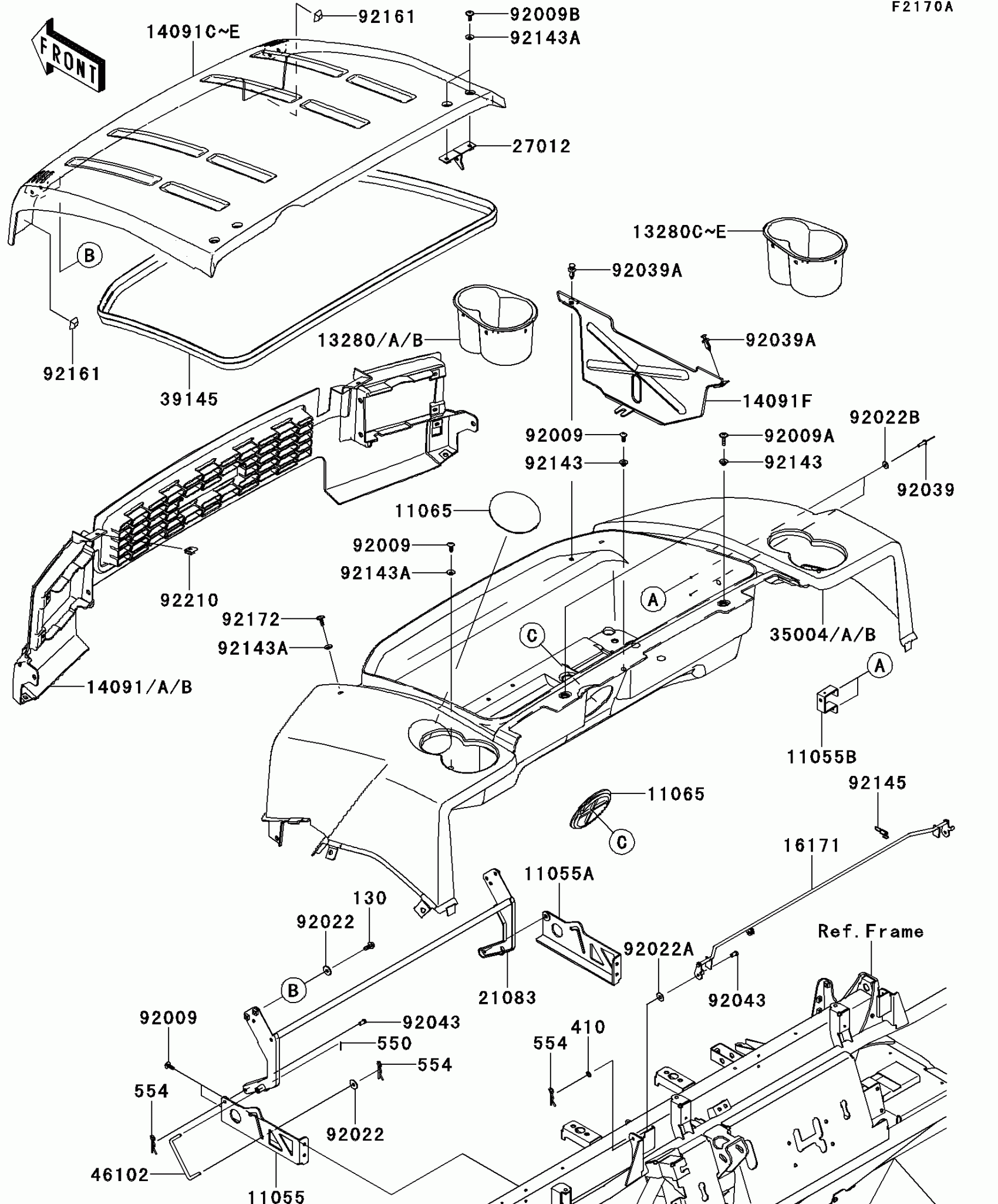

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Fenders(GCF/GDF) Diagram

#

Description
Price

11055

BRACKET,HINGE,LH

11055-0037

$22.13

11055A

BRACKET,HINGE,RH

11055-0038

$22.13

11055B

BRACKET,RESERVOIR TANK

11055-0124

$4.78

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

13280

HOLDER,CUP HOLDER,LH,D.R.RED

13280-0265-16L

$13.63

13280B

HOLDER,CUP HOLDER,LH,S.GREEN

13280-0265-31R

$14.01

13280C

HOLDER,CUP HOLDER,RH,D.R.RED

13280-0266-16L

$13.63

13280E

HOLDER,CUP HOLDER,RH,S.GREEN

13280-0266-31R

$14.01

14091

COVER,FRONT GRILL,D.R.RED

14091-0818-16L

$98.06

14091B

COVER,FRONT GRILL,S.GREEN

14091-0818-31R

$102.68

14091C

COVER,FRONT FENDER,D.R.RED

14091-0829-16L

$177.69

14091E

COVER,FRONT FENDER,S.GREEN

14091-0829-31R

$186.08

14091F

COVER,RESERVOIR TANK

14091-1715

$30.42

16171

LINK

16171-0013

$34.23

21083

ARM,HOOD

21083-0051

$75.54

27012

HOOK,HOOD

27012-0119

$5.68

35004

FENDER-FRONT,CNT,D.R.RED

35004-0096-16L

$330.10

35004B

FENDER-FRONT,CNT,S.GREEN

35004-0096-31R

$345.47

39145

TRIM-SEAL,L=2350

39145-0032

$46.93

46102

ROD

46102-0103

$4.09

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92009B

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92022A

WASHER,7X18X1.2

92022-1545

$1.03

92022B

WASHER,4.3X12.5X1

92022-1949

$3.60

92039

RIVET

92039-1150

$3.92

92039A

RIVET

92039-1229

$1.19

92043

PIN,6X9

92043-1626

$2.26

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92145

SPRING

92145-0215

$4.55

92161

DAMPER,FR HOOD

92161-0790

$2.26

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32

130

BOLT-FLANGED,6X16

130BA0616

$1.20

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

550

PIN-COTTER,1.6X15

550AA1615

$2.51

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95
