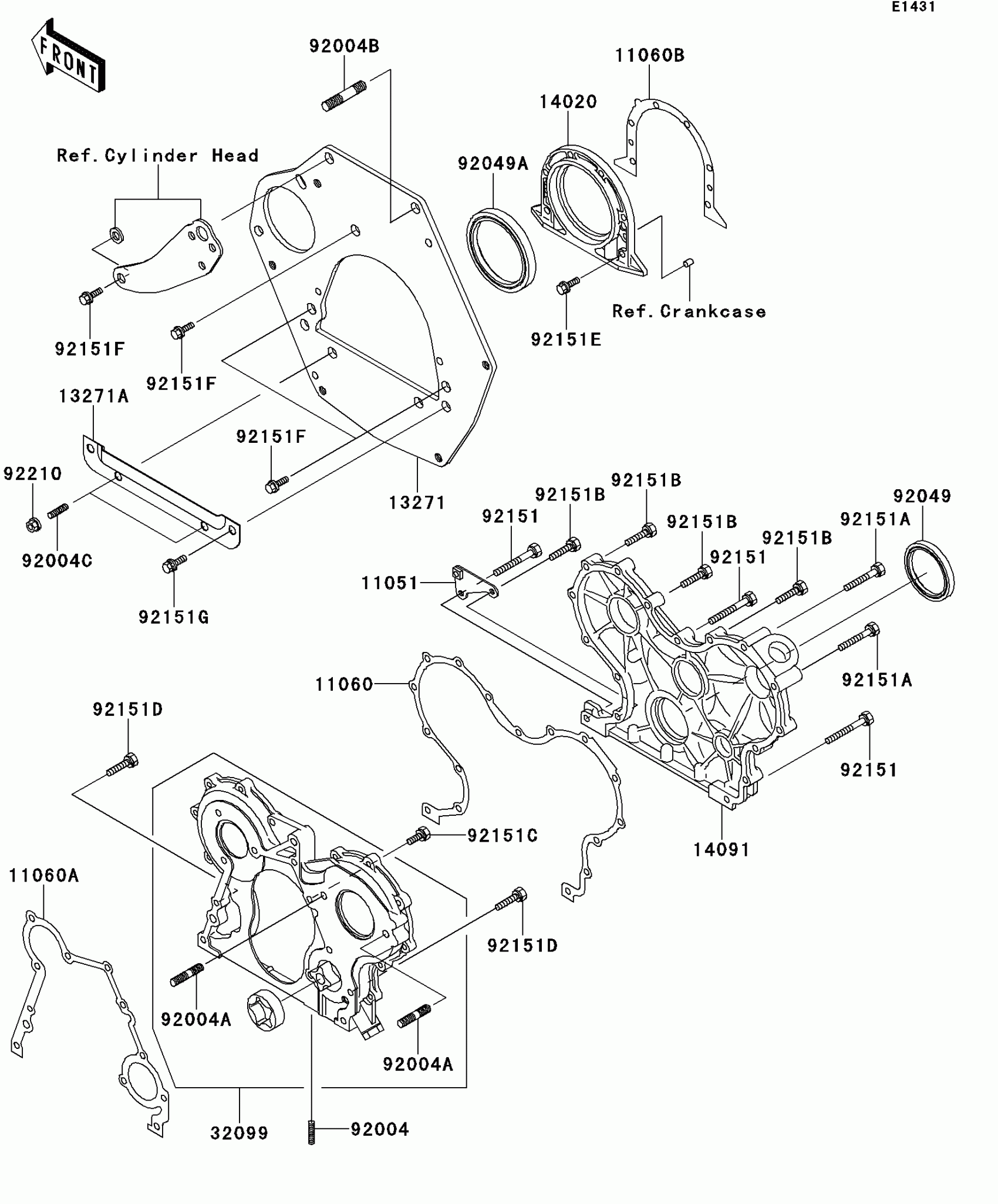

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Engine Cover(s) Diagram

Description

Price

11051

BRACKET

11051-1550

$11.38

11060

GASKET,TIMING COVER

11060-1945

$20.73

11060A

GASKET,TIMING GEAR CASE

11060-1946

$21.77

11060B

GASKET,RETAINER

11060-1947

$8.13

13271

PLATE,LEFT END

13271-0167

$522.44

13271A

PLATE

13271-1359

$54.01

14020

RETAINER

14020-1107

$66.62

14091

COVER,TIMING GEAR

14091-1185

$179.77

32099

CASE,TIMING GEAR

32099-1208

$437.97

92004

STUD,6X14

92004-1262

$2.55

92004A

STUD,8X28

92004-1269

$2.55

92004B

STUD,10X40

92004-1270

$2.55

92004C

STUD,6X13

92004-1271

$2.77

92049

SEAL-OIL

92049-0105

$44.36

92049A

SEAL-OIL

92049-0106

$47.47

92151

BOLT,6X55

92151-1662

$2.58

92151A

BOLT,6X45

92151-1663

$2.58

92151B

BOLT,6X30

92151-1664

$2.58

92151C

BOLT,6X16

92151-1665

$2.58

92151D

BOLT,6X28

92151-1666

$2.58

92151E

BOLT,6X20

92151-1667

$2.58

92151F

BOLT,10X22

92151-1668

$2.58

92151G

BOLT,6X12

92151-1669

$2.58

92210

NUT,6MM

92210-1210

$2.58
