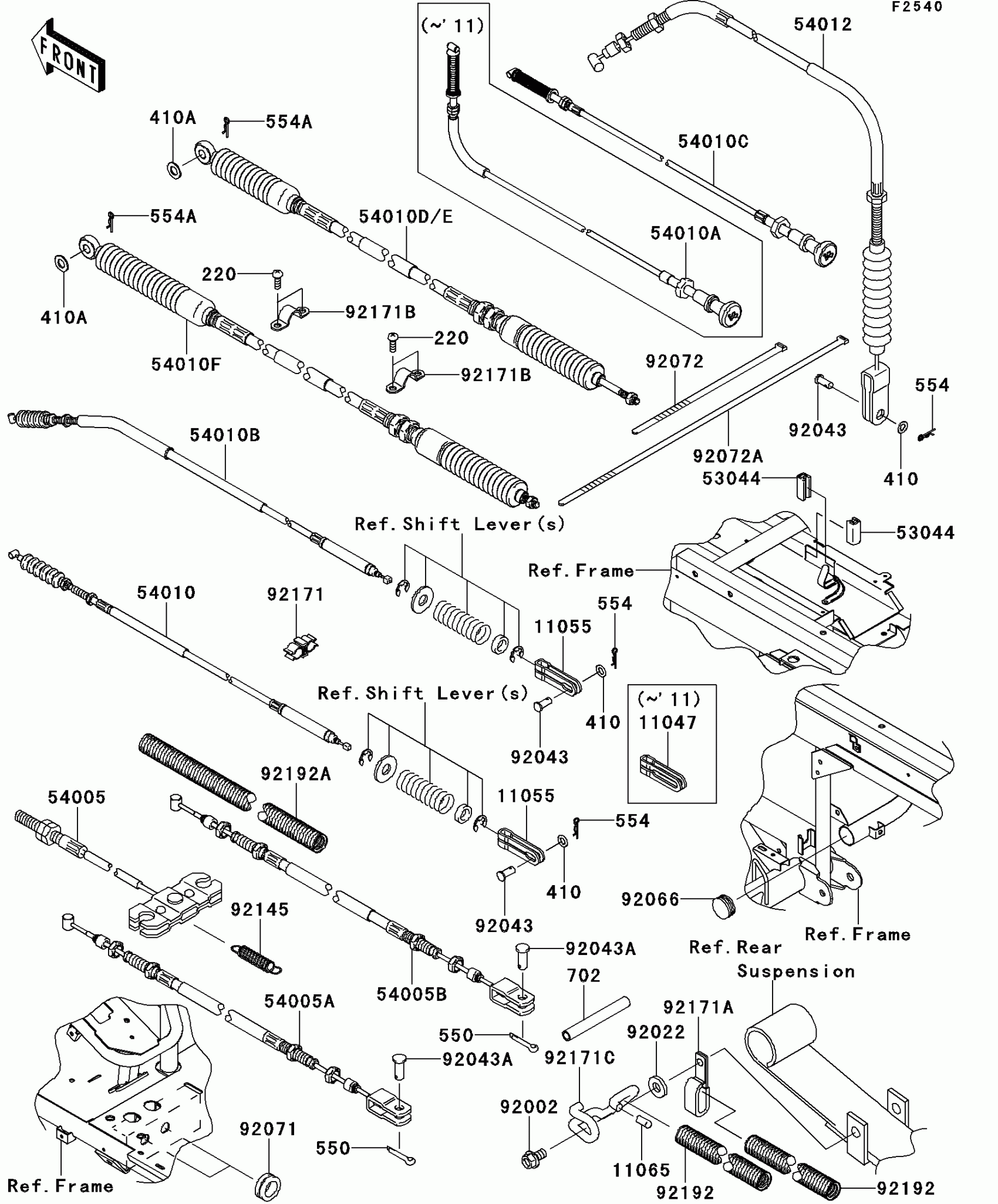

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Cables Diagram

#

Description
Price

11047

BRACKET,DIFF LOCK

11047-1043

Unavailable

11055

BRACKET,DIFF LOCK

11055-7505

$9.28

11065

CAP

11065-7505

$2.67

53044

TRIM,L=22

53044-7503

$7.83

54005

CABLE-BRAKE,PARKING,FR

54005-1198

$10.30

54005A

CABLE-BRAKE,PARKING,RR,LH

54005-7503

$35.73

54005B

CABLE-BRAKE,PARKING,RR,RH

54005-7504

$37.42

54010

CABLE,2-4WD

54010-0045

$51.03

54010A

CABLE,HOOD

54010-0089

$33.71

54010B

CABLE,DIFF LOCK

54010-0111

$89.61

54010C

CABLE,HOOD

54010-0131

Unavailable

54010D

CABLE,HI/LOW

54010-0133

$124.37

54010E

CABLE,HI-LOW

54010-7506

$136.24

54010F

CABLE,SHIFT CONTROL

54010-7508

$180.18

54012

CABLE-THROTTLE

54012-7506

$49.03

92002

BOLT,8X14

92002-1589

$5.05

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92043

PIN,6X11

92043-092

$4.69

92043A

PIN

92043-1039

$9.91

92066

PLUG

92066-7503

$1.75

92071

GROMMET

92071-1027

Unavailable

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,L=368.3

92072-3872

$1.59

92145

SPRING

92145-7506

$9.34

92171

CLAMP

92171-0129

$4.18

92171A

CLAMP,CABLE

92171-0176

$5.48

92171B

CLAMP

92171-1203

$2.58

92171C

CLAMP,BRAKE CABLE

92171-1210

$14.02

92192

TUBE,CORRUGATED,13X16.7X240

92192-1243

$2.73

92192A

TUBE,PROTECTOR,13.2X17.5X350

92192-3715

$2.73

220

SCREW-PAN-CROS,5X14

220AA0514

$4.43

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

410A

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.96

550

PIN-COTTER,2.0X22

550AA2022

$2.51

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95

554A

PIN-SNAP

554DA0800

$1.36

702

TUBE-RUBBER,5X8X55

702A0555

$9.53
