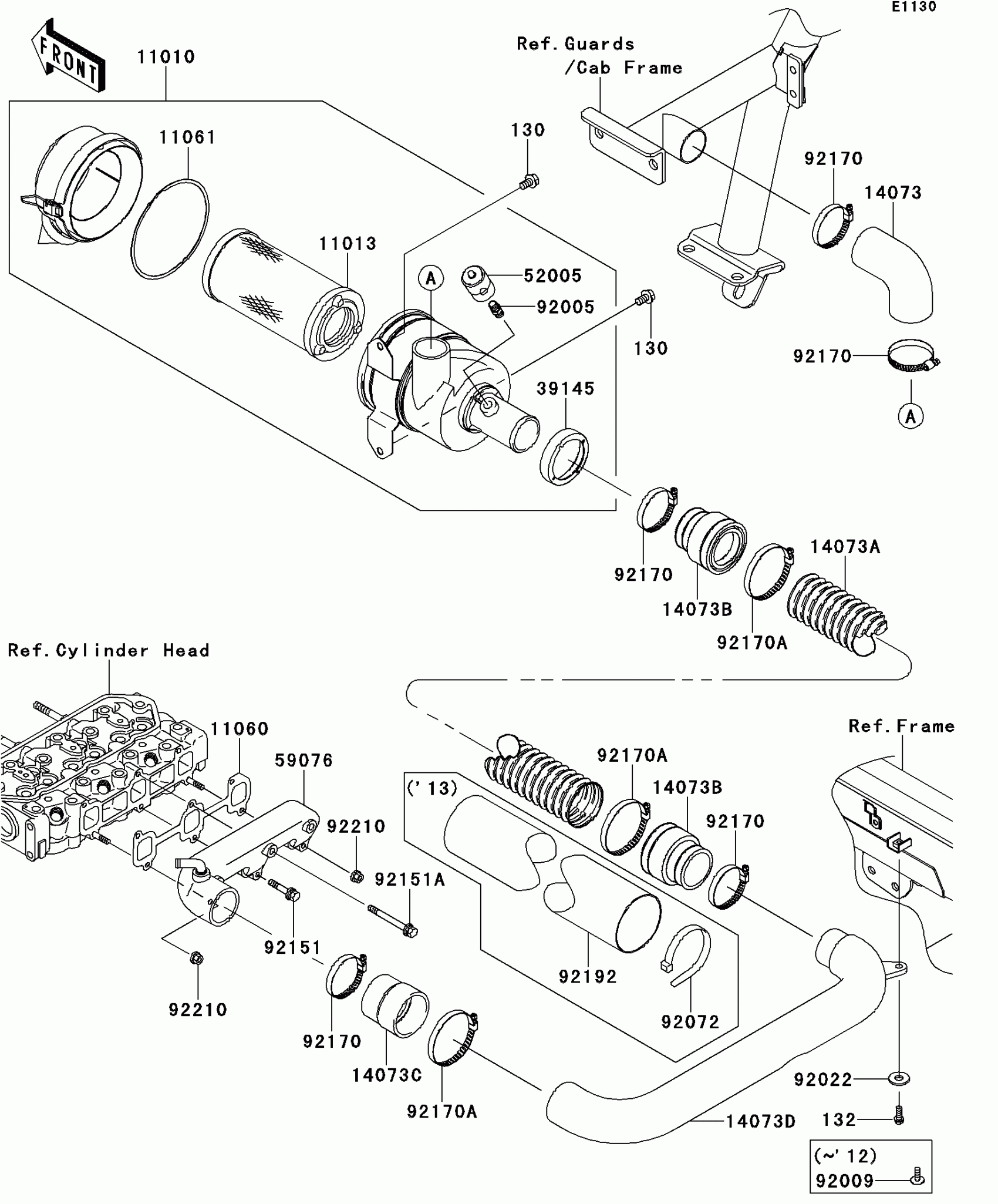

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0189

$141.39

11013

ELEMENT-AIR FILTER

11013-1290

$28.98

11060

GASKET,INTAKE MANIFOLD

11060-1960

$11.42

11061

GASKET,AIR FILTER

11061-1078

$17.32

14073

DUCT,RR BAR-A/C

14073-0235

$8.62

14073A

DUCT,A/C-BLOW DUCT

14073-0240

$48.57

14073B

DUCT,ADAPTER

14073-7505

$3.99

14073C

DUCT,BLOW DUCT-E/G

14073-7508

$7.69

14073D

DUCT,BLOW

14073-7510

$51.08

39145

TRIM-SEAL

39145-1133

$7.68

52005

GAUGE

52005-0017

$47.02

59076

MANIFOLD-INTAKE

59076-1112

$127.40

92005

FITTING,AIR FILTER

92005-1386

$1.75

92009

SCREW,6X16

92009-1621

Unavailable

92022

WASHER

92022-2247

$0.62

92072

BAND,L=368.3

92072-3872

$1.59

92151

BOLT,6X20

92151-1667

$2.58

92151A

BOLT,6X60

92151-1695

$2.58

92170

CLAMP

92170-1674

$11.76

92170A

CLAMP

92170-1764

$11.48

92192

TUBE,75X78X350

92192-1125

$39.75

92210

NUT,6MM

92210-1210

$2.58

130

BOLT-FLANGED,8X14

130BB0814

$4.12

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
