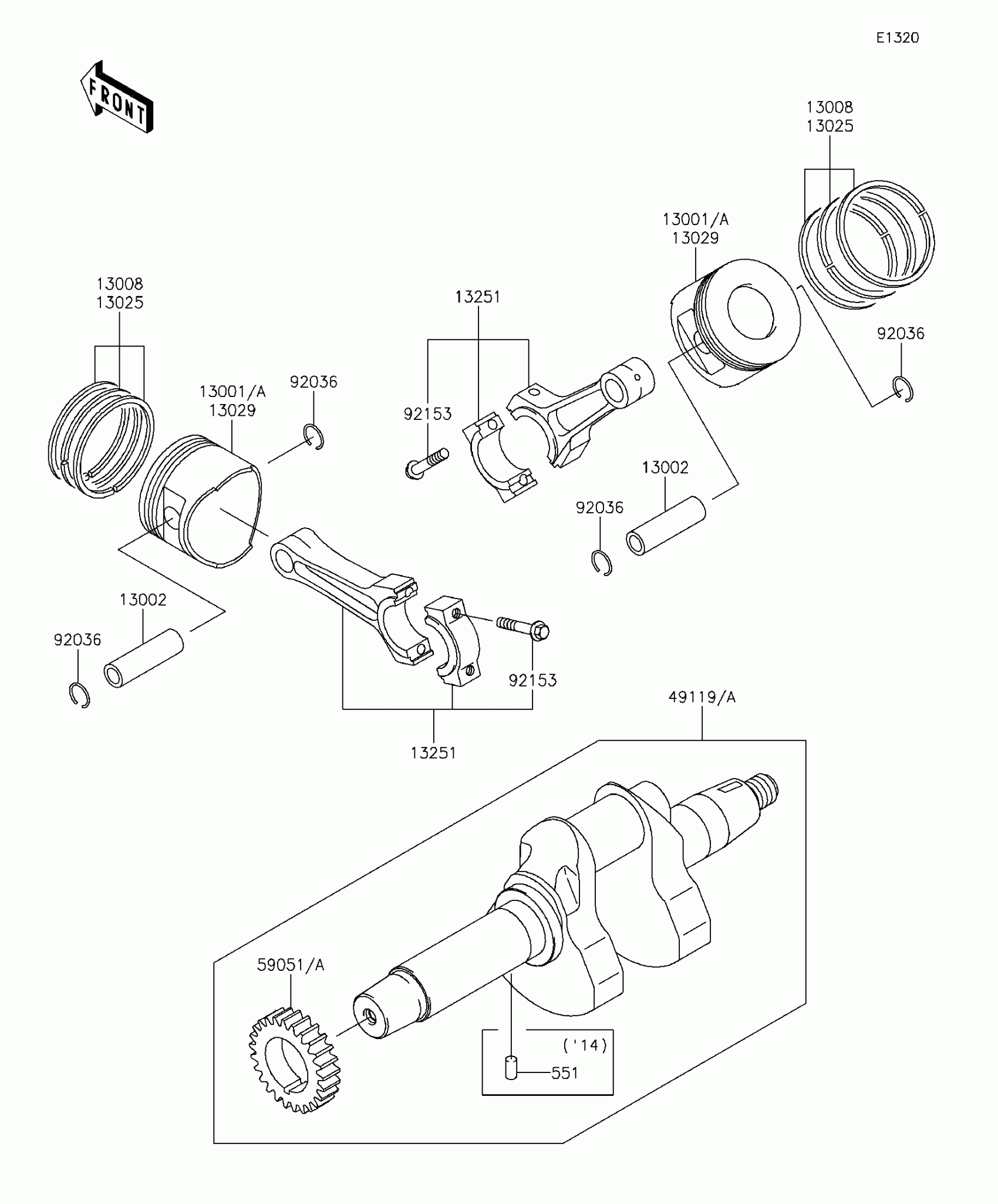

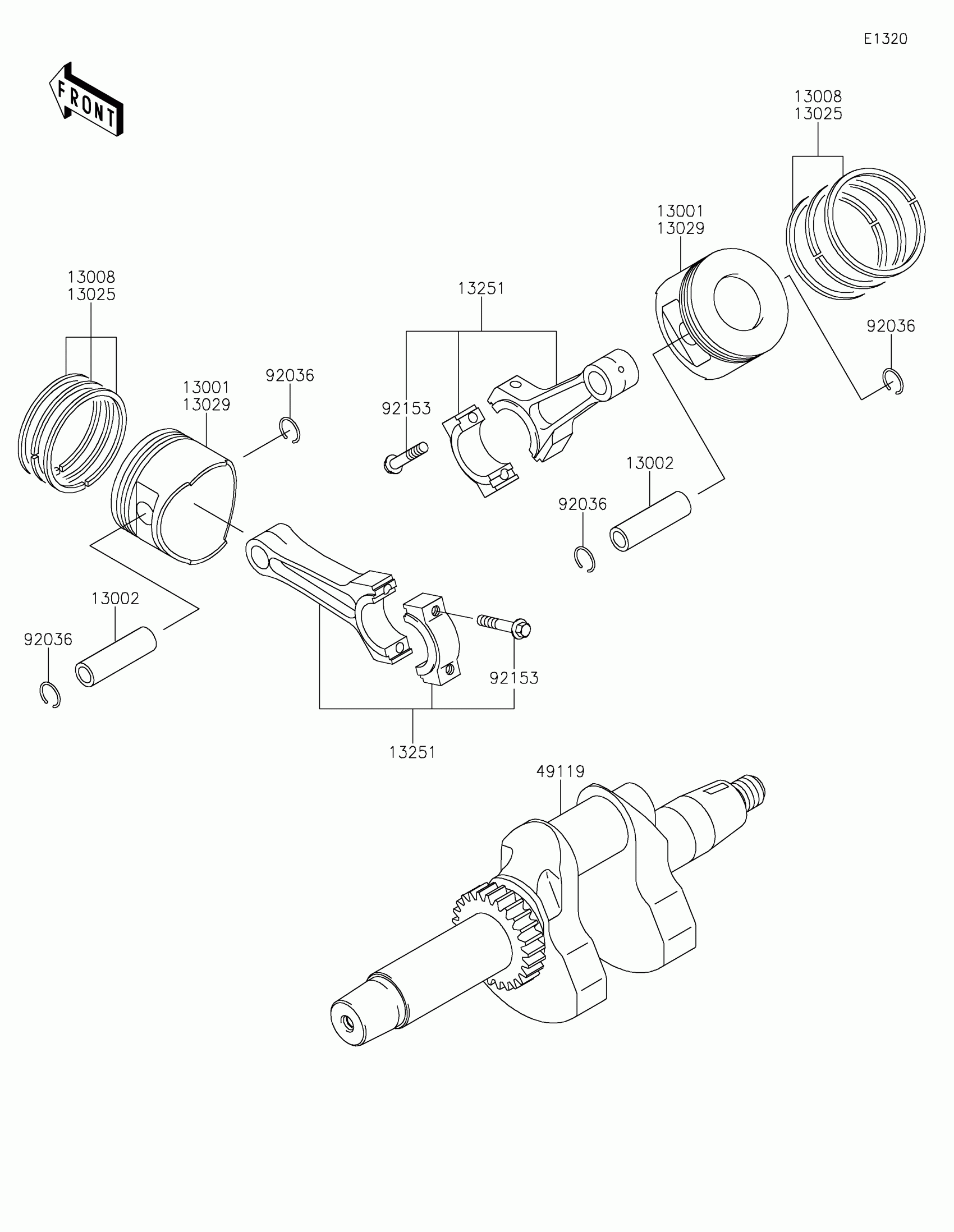

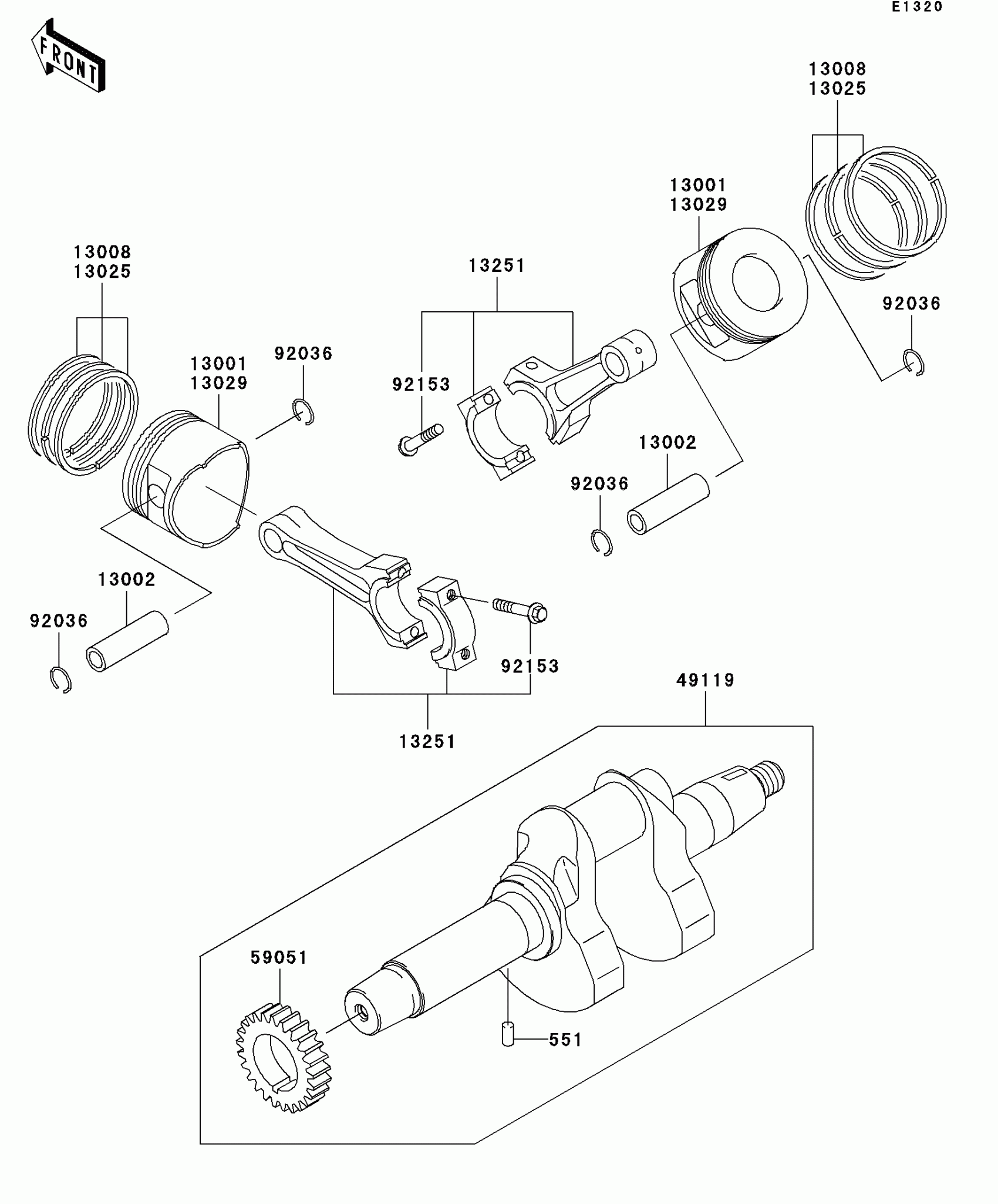

Kawasaki Mule 4010 Trans4x4 Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,STD

13001-2196

$45.08

13001A

PISTON-ENGINE

13001-2210

$45.08

13002

PIN-PISTON

13002-1013

$6.66

13008

RING-SET-PISTON,STD

13008-6025

$36.70

13025

RING-SET-PISTON L,0.50

13025-6008

Unavailable

13029

PISTON-ENGINE L,0.50

13029-2141

Unavailable

13251

ROD-ASSY-CONNECTING

13251-0034

$77.78

49119

CRANKSHAFT-ASSY

49119-0015

$593.71

49119A

CRANKSHAFT-ASSY

49119-2200

$593.71

59051

GEAR-SPUR

59051-0746

$33.70

59051A

GEAR-SPUR

59051-2112

$35.63

92036

CIRCLIP,PISTON PIN

92036-021

$0.49

92153

BOLT,7X35.2

92153-2054

$1.71

551

PIN-DOWEL,4X8

551A0408

$0.78
