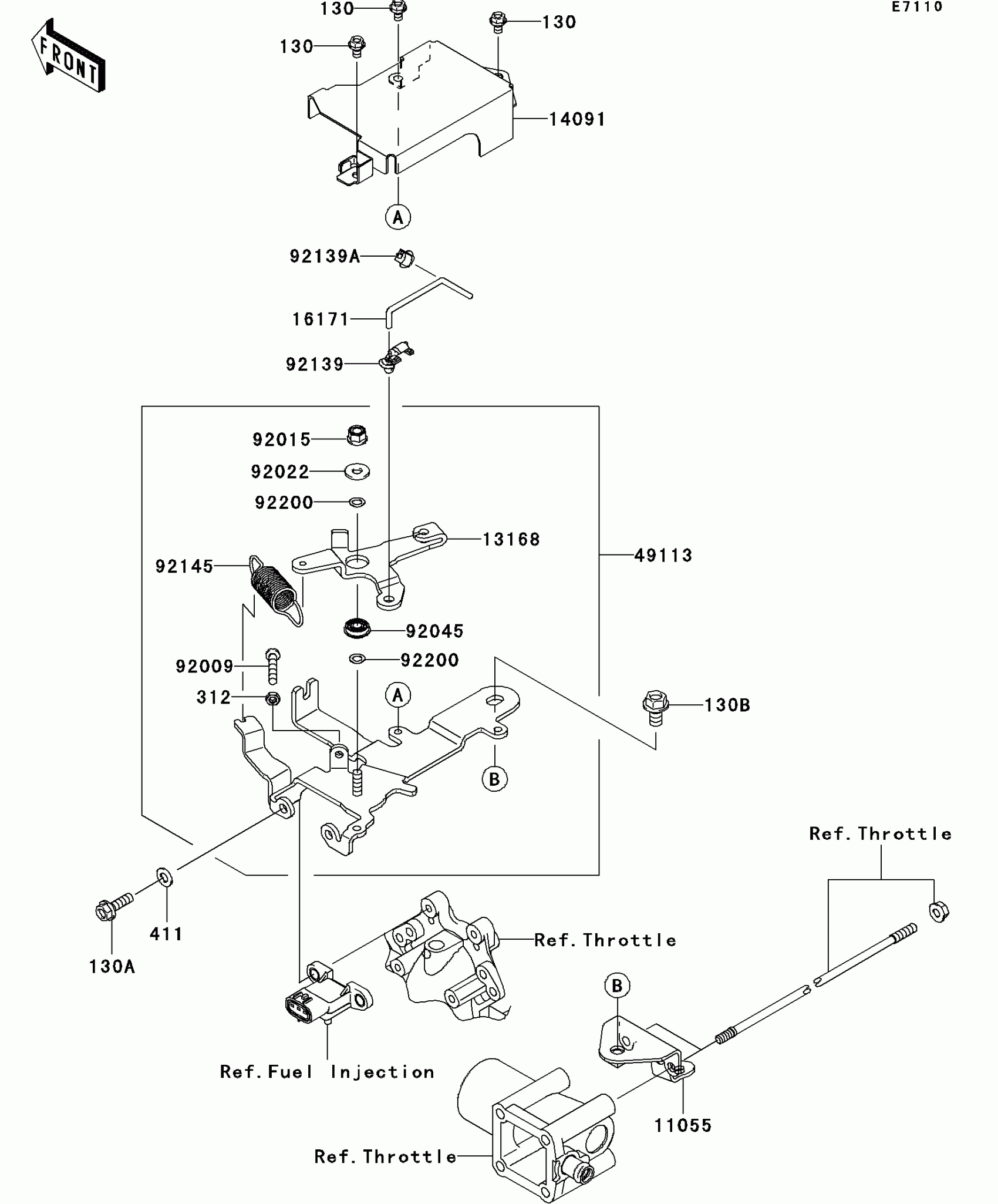

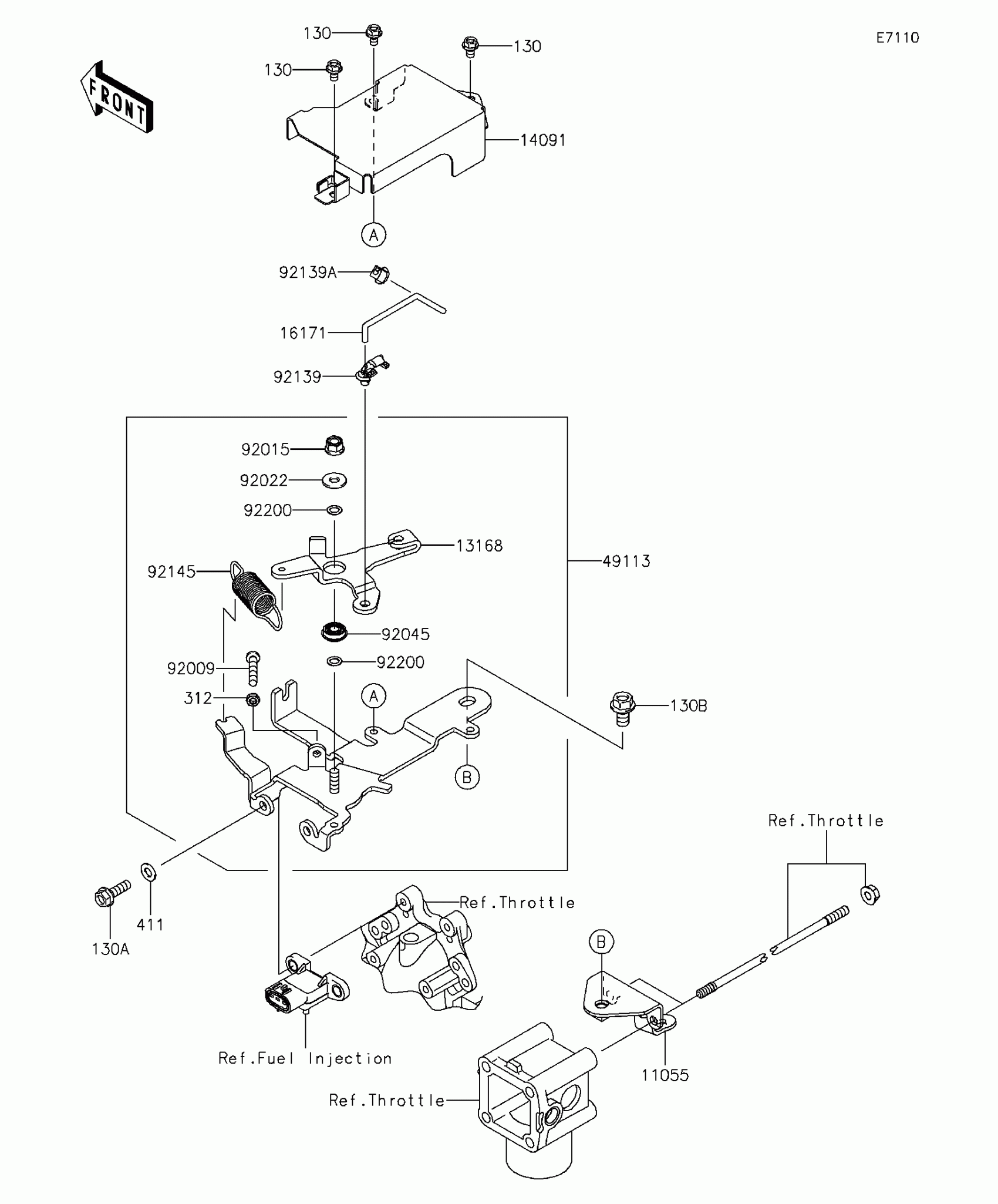

Kawasaki Mule 4010 Trans4x4 Control Diagram

Description

Price

11055

BRACKET

11055-2020

$11.17

13168

LEVER

13168-2509

$40.76

14091

COVER,CONTROL PANEL

14091-1757

$21.20

16171

LINK

16171-2105

$3.17

49113

PANEL-COMP-CONTROL

49113-2211

$88.69

92009

SCREW,5X30

92009-2381

$0.90

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.20

92022

WASHER

92022-2247

$0.64

92045

BEARING-BALL,696ZZ1NR MC3

92045-2223

$6.91

92139

BUSHING,CONT-PANEL

92139-2060

$2.44

92139A

BUSHING,THROTTLE-BODY

92139-2061

$2.44

92145

SPRING

92145-2186

$2.44

92200

WASHER,6.2X10X0.5

92200-2083

$3.77

130

BOLT-FLANGED,5X8

130BA0508

$1.53

130A

BOLT-FLANGED,6X20

130BA0620

$1.49

130B

BOLT-FLANGED,8X14

130BA0814

$1.78

312

NUT-HEX,5MM

312AA0500

$0.49

411

WASHER-PLAIN,6MM

411AB0600

$1.08
