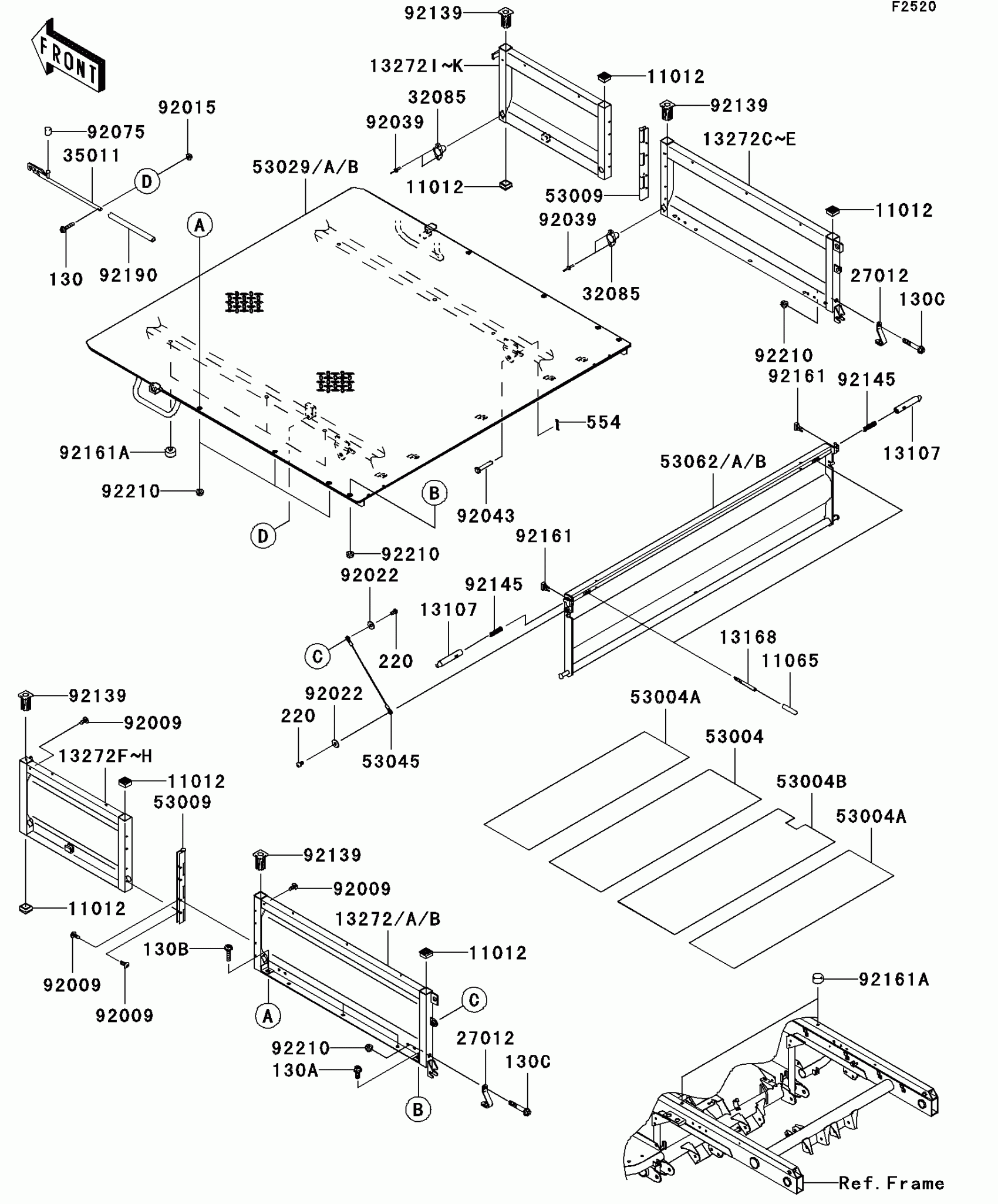

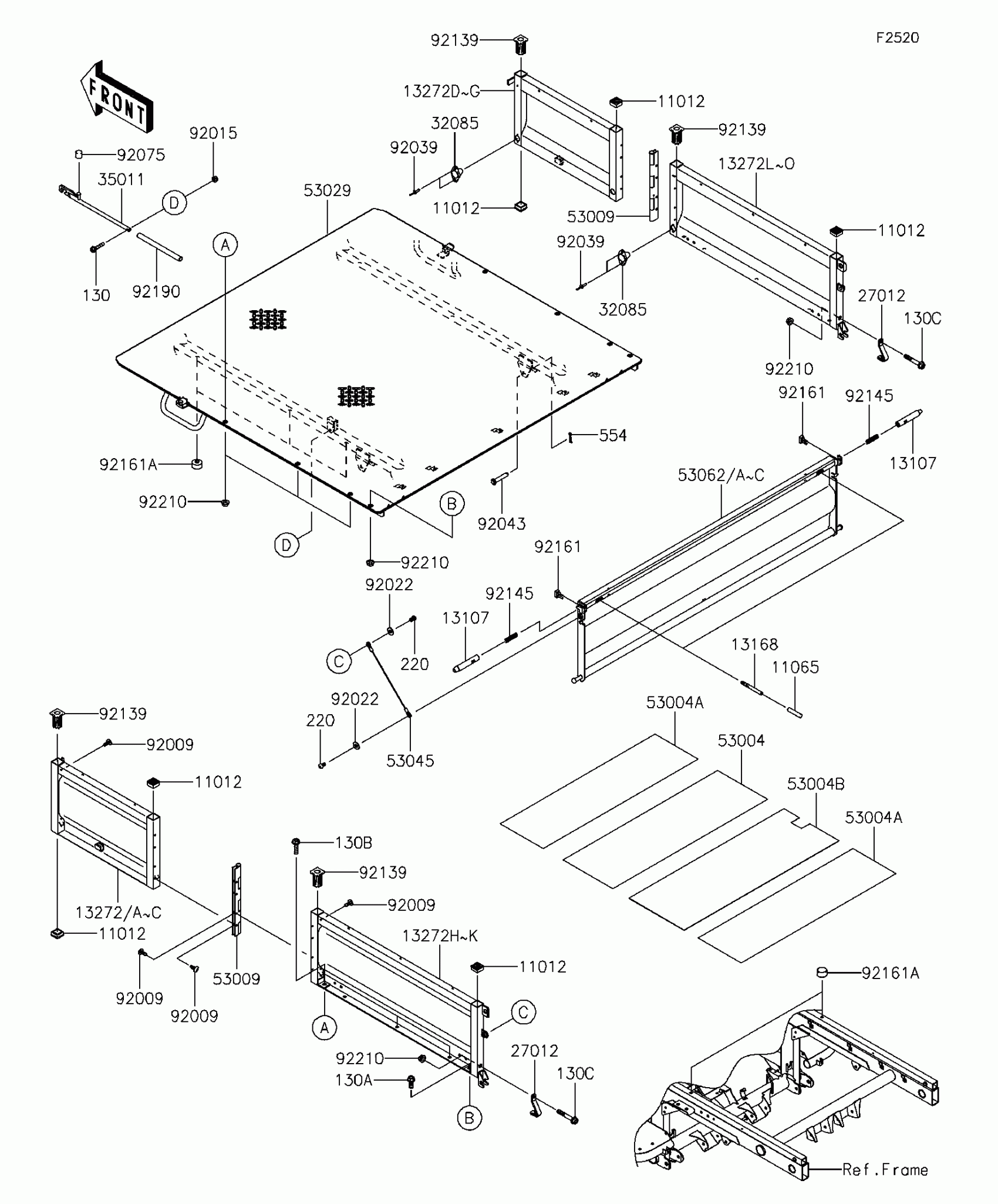

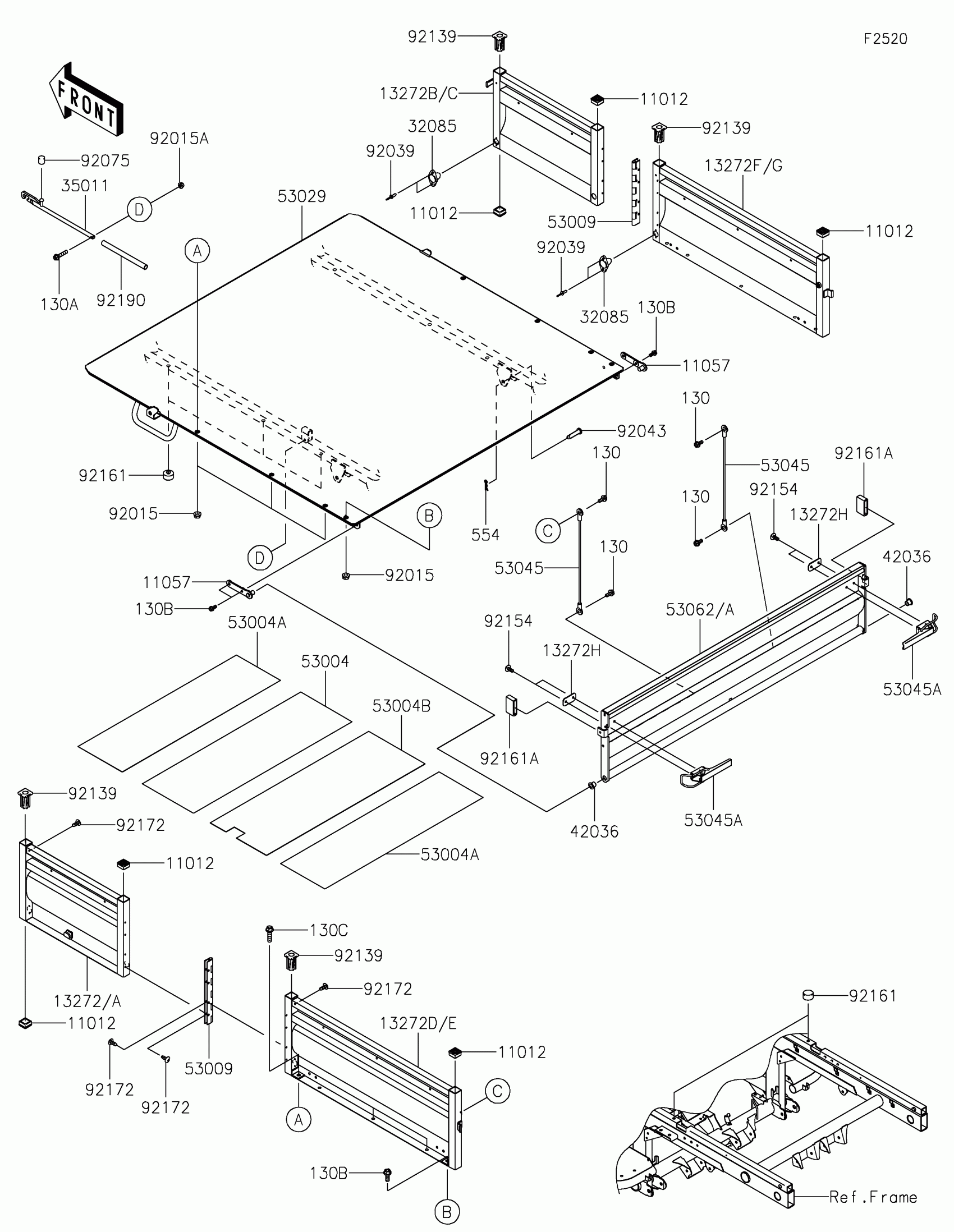

Kawasaki Mule 4010 Trans4x4 Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

11065

CAP

11065-0126

$2.34

13107

SHAFT

13107-0082

$58.67

13168

LEVER

13168-0090

$9.15

13272A

PLATE,SIDE,RR,LH,D.R.RED

13272-0089-16M

$167.12

13272D

PLATE,SIDE,RR,RH,D.R.RED

13272-0090-16M

$167.12

13272G

PLATE,SIDE,FR,LH,D.R.RED

13272-0501-16M

$110.58

13272J

PLATE,SIDE,FR,RH,D.R.RED

13272-0502-16M

$110.58

27012

HOOK,TAIL GATE

27012-0022

$4.81

32085

STOPPER

32085-7501

$6.61

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

53004

MAT,CARRIER

53004-0031

$118.09

53004A

MAT,CARRIER

53004-0032

$118.09

53004B

MAT

53004-7501

$114.34

53009

HINGE,CARRIER

53009-7501

$47.50

53029A

CARRIER,BASE PLATE,D.R.RED

53029-0061-16M

$960.88

53045

HOOK-ASSY,TAIL GATE

53045-0004

$26.21

53062A

GATE-TAIL,D.R.RED

53062-7503-16M

$405.17

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,7X18X1.2

92022-1545

$0.84

92039

RIVET

92039-1150

$3.53

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92139

BUSHING,REAR SCREEN

92139-7501

$4.14

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0258

$3.18

92161A

DAMPER

92161-7510

$3.32

92190

TUBE,13X16X200

92190-1401

$4.63

92210

NUT,FLANGED,8MM

92210-0555

$1.47

130

BOLT-FLANGED,6X30

130BA0630

$1.13

130A

BOLT-FLANGED,8X20

130BB0820

$0.71

130B

BOLT-FLANGED,8X30

130BB0830

$3.42

130C

BOLT-FLANGED,8X50

130BB0850

$3.60

220

SCREW-PAN-CROS,6X10

220AB0610

$1.33

554

PIN-SNAP,12MM

554DA1200

$2.63
