Description

Price

11065

CAP

11065-7504

$1.50

13168

LEVER,SEAT,TOP,LH

13168-7502

$58.46

13168A

LEVER,SEAT,TOP,RH

13168-7503

$58.46

13168B

LEVER,SEAT,LWR,LH

13168-7504

$47.79

13168C

LEVER,SEAT,LWR,RH

13168-7505

$47.79

13183

PLATE,SEAT

13183-1400

$7.58

14091

COVER,REAR SEAT,BOTTOM

14091-1740

$139.87

35063

STAY,REAR BACK

35063-7510

$147.48

42036

SLEEVE,12.1X20X85

42036-7501

$10.13

53061

BELT-SEAT,RR

53061-7506

$127.15

53061A

BELT-SEAT,FR,RH

53061-7507

$127.15

53061B

BELT-SEAT,FR,LH

53061-7508

$127.15

53066

SEAT-ASSY,RR,LWR,S.M.BROWN

53066-0226-MB

$586.91

53066A

SEAT-ASSY,FR,LWR,S.M.BROWN

53066-7502-MB

$530.44

53066B

SEAT-ASSY,FR,BACK,S.M.BROWN

53066-7503-MB

$257.63

53066C

SEAT-ASSY,RR,BACK,S.M.BROWN

53066-7507-MB

$257.63

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92043

PIN

92043-7503

$4.17

92145

SPRING

92145-7507

$1.50

92150

BOLT,FLANGED,12X117

92150-1895

$12.74

92171

CLAMP

92171-7509

$1.12

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67

130

BOLT-FLANGED,10X20

130BB1020

$5.96

130A

BOLT-FLANGED,10X25

130BB1025

$5.25

411

WASHER-PLAIN

411AB1200

$3.92

462

WASHER-SPRING,10MM

462DB1000

$2.81

482

CIRCLIP-TYPE-E,12MM

482EA0200

$2.30

482A

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68

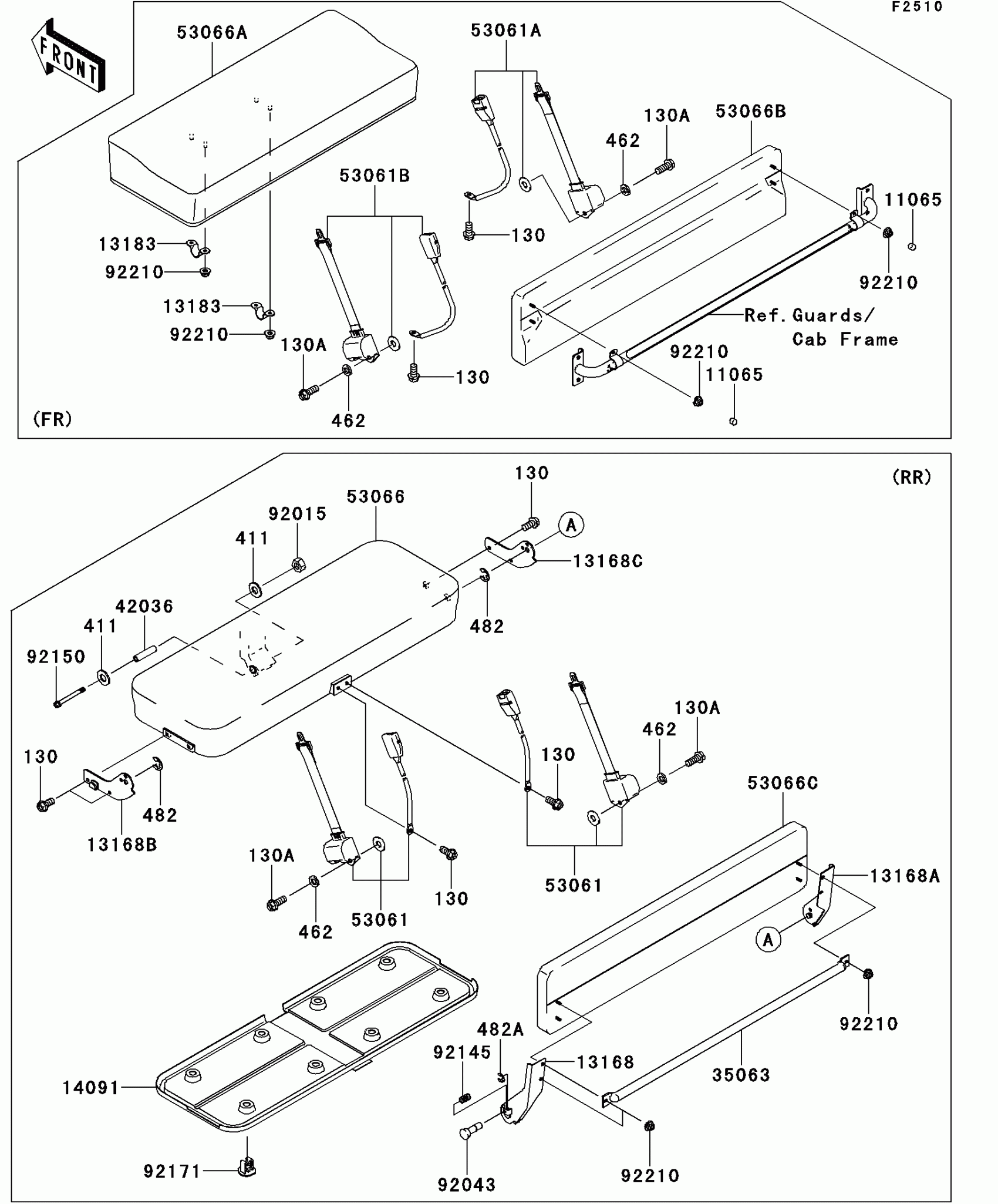

Kawasaki MULE™ 4010 TRANS4x4® CAMO Seat(S9F/SAF) Diagram

CAP

LEVER,SEAT,TOP,LH

LEVER,SEAT,TOP,RH

LEVER,SEAT,LWR,LH

LEVER,SEAT,LWR,RH

PLATE,SEAT

COVER,REAR SEAT,BOTTOM

STAY,REAR BACK

SLEEVE,12.1X20X85

BELT-SEAT,RR

BELT-SEAT,FR,RH

BELT-SEAT,FR,LH

SEAT-ASSY,RR,LWR,S.M.BROWN

SEAT-ASSY,FR,LWR,S.M.BROWN

SEAT-ASSY,FR,BACK,S.M.BROWN

SEAT-ASSY,RR,BACK,S.M.BROWN

NUT,LOCK,12MM,BLACK

PIN

SPRING

BOLT,FLANGED,12X117

CLAMP

NUT,FLANGED,LOCK,8MM

BOLT-FLANGED,10X20

BOLT-FLANGED,10X25

WASHER-PLAIN

WASHER-SPRING,10MM

CIRCLIP-TYPE-E,12MM

CIRCLIP-TYPE-E,8MM
